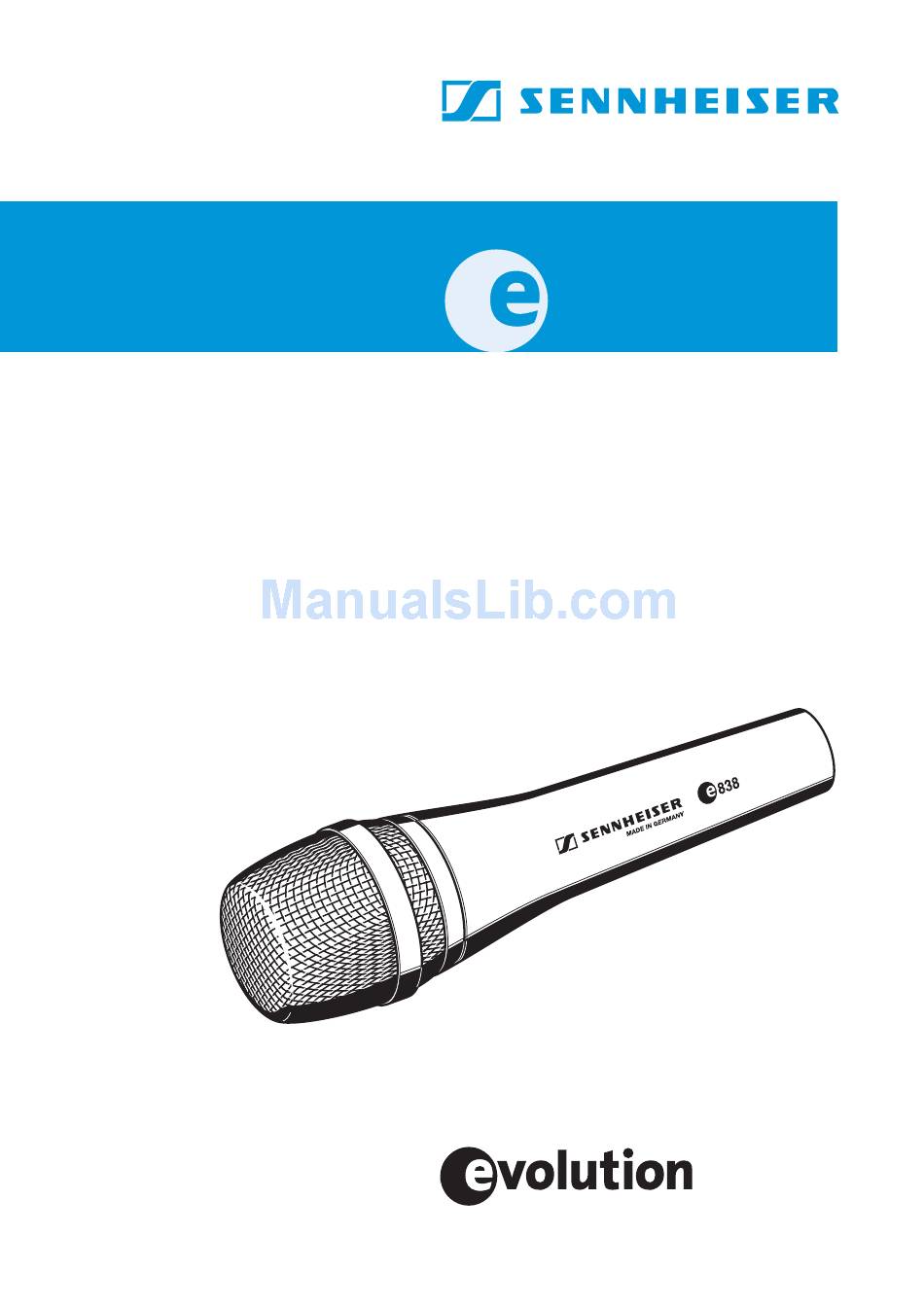

- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 2 The minimal proximity effect provides for consistently clear bass-end performance when singing closer to, or further from the microphone. The cardioid pick-up pattern provides excellent feedback rejection and good isolation from incidental rear noise.
- Page 3 Features Rugged metal body Shock-mounted capsule Frequency-independent directivity Exceptional feedback rejection Excellent vocal projection Humbucking coil Delivery includes 838 microphone MZQ 800 microphone clamp Pouch Instructions for use Warranty Certificate...
- Page 4 Pin assignment of XLR-3 connector Removing the sound inlet basket balanced symmetrisch 6,3 mm 6,3 mm...
-
Page 5: Positioning The Microphone
In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 150°; see polar diagram). Commentary... -
Page 6: Frequency Response Curve
Polar diagram 30° 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m ° 180° 16000 Hz 500 1000 2000 30°... - Page 7 Specifications Transducer principle Frequency response Pick-up pattern Sensitivity (free field, no load at 1 kHz) Nominal impedance Min. terminating impedance Connector Weight Dimensions dynamic 40...17,000 Hz cardioid 2 mV/Pa ± 3 dB 350 Ω 1 kΩ XLR-3 330 g Ø 47 x L 181 mm...
-
Page 8: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchester Brass/Saxophon Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads x x x x x x x... -
Page 9: Manufacturer Declarations
Manufacturer declarations Warranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regula- tions. WEEE Declaration Please dispose of this product at the end of its operational li- fetime by bringing it to your local collection point or recycling centre for such equipment. - Page 10 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 08/07 524419/A01...
