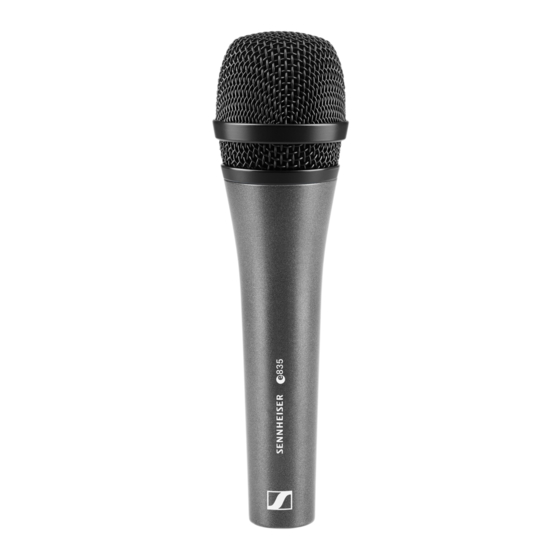

Sennheiser 835 Instructions For Use Manual
Cardioid lead vocal stage microphone
Hide thumbs
Also See for 835:
- Instructions for use manual (28 pages) ,
- Instrucciones de uso (14 pages) ,
- User manual (9 pages)
Related Manuals for Sennheiser 835
Summary of Contents for Sennheiser 835
- Page 1 835 S Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 3 Deutsch English Français Italian Español Nederlands...
- Page 5 835 / 835 S 835 is a cardioid lead vocal stage microphone specially designed to perform under pressure. Its balanced frequency response maintains signal quality when moving on and off axis during performance. The gentle presence boost ensures vocal clarity and projection.
- Page 6 Pouch Instructions for use Warranty Certificate ON/OFF switch ( 835 S only) Use the screw to lock the switch in the ON position. With the switch set in the ON position, gently turn the screw head 90° to lock the switch in position.
-
Page 7: Removing The Sound Inlet Basket
Pin assignment of XLR-3 connector Removing the sound inlet basket balanced symmetrisch 6,3 mm 6,3 mm... -
Page 8: Positioning The Microphone
In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. -
Page 9: Polar Diagram
Polar diagram 30° 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 0°, 1 m ° 180° 16000 Hz 500 1000 2000 30°... - Page 10 Specifications Transducer principle Frequency response Pick-up pattern Sensitivity (free field, no load at 1 kHz) Nominal impedance Min. terminating impedance Connector Weight Dimensions dynamic 40...16,000 Hz cardioid 2.7 mV/Pa 350 Ω 1 kΩ XLR-3 330 g Ø 48 x L 180 mm...
-
Page 11: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads... -
Page 12: Manufacturer Declarations
Manufacturer declarations Warranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regula- tions. WEEE Declaration Please dispose of this product at the end of its operational li- fetime by bringing it to your local collection point or recycling centre for such equipment. - Page 14 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 01/06 511655/A03...
