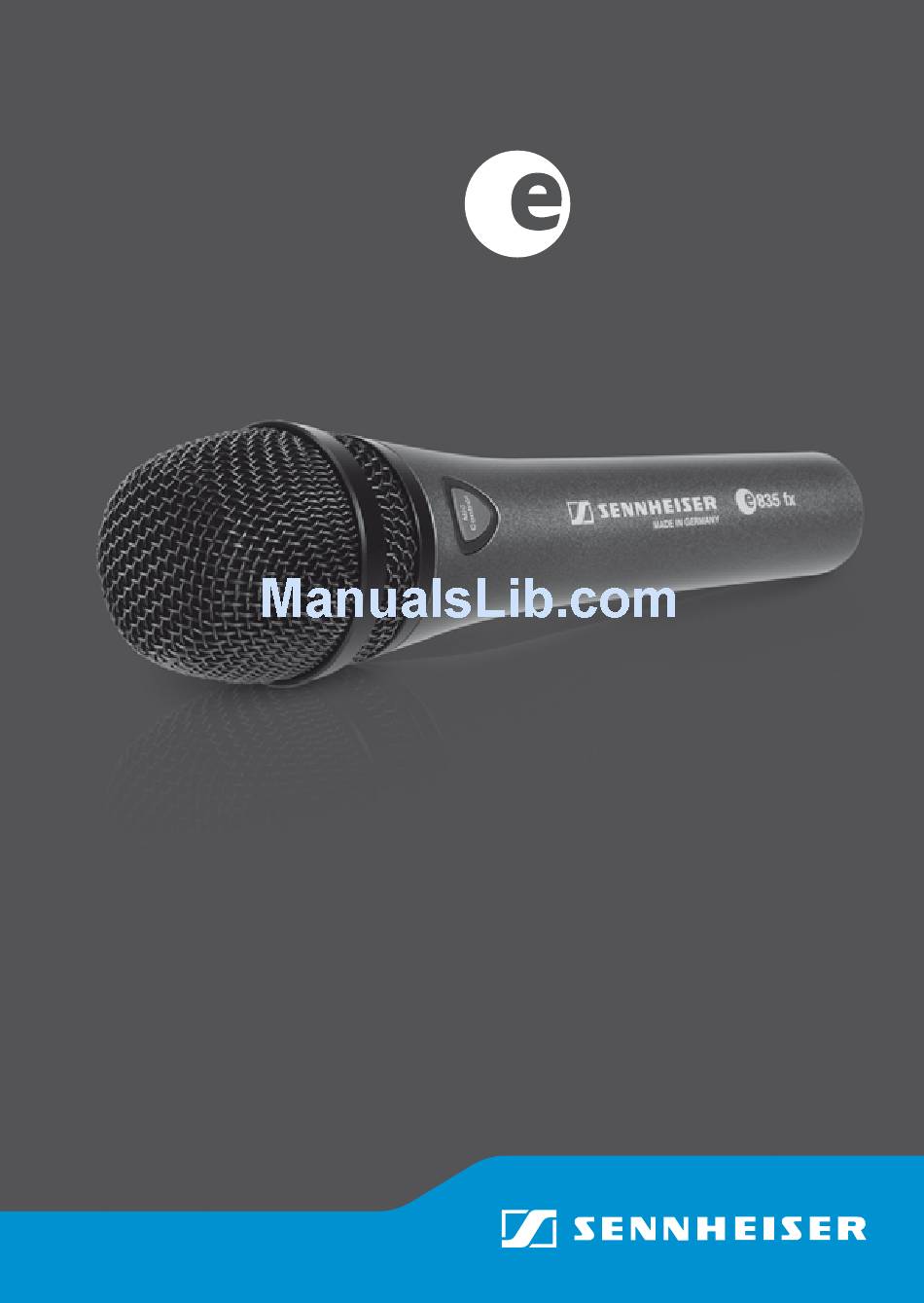

- Page 1 835 fx Instruction manual...
- Page 2 835 fx 835 fx is a cardioid lead vocal stage microphone spe- cially designed to perform under pressure. Its balanced frequency response maintains signal quality when moving on and off axis during performance. The gentle presence boost ensures vocal clarity and projection. The minimal proximity effect provides for consistently clear bass-end performance when singing closer to, or further from the microphone.
-
Page 3: Delivery Includes
Features • Rugged metal body • Excellent feedback rejection • Shock-mounted capsule provides excellent suppression of handling noise • Uniform on- and off-axis response • Cardioid pick-up pattern provides isolation from other on-stage signals • Humbucking coil Delivery includes 1 835 fx microphone 1 MZQ 800 microphone clamp 1 pouch 1 instruction manual... -
Page 4: Removing The Sound Inlet Basket
Pin assignment of XLR-3 connector 6.3 mm 6.3 mm balanced Removing the sound inlet basket e 835 fx... -
Page 5: Using The Microphone
Using the microphone The Mic Control button of the 835 fx allows you to remote control your TC-Helicon device. For more information, refer to the instruction manual of your TC-Helicon product. e 835 fx... -
Page 6: Positioning The Microphone
Positioning the microphone Position Resulting sound Commentary High proximity effect Very little (much bass/fundamental) crosstalk from other sound Powerful, direct sound sources Less proximity effect More crosstalk (less bass/fundamental) from other sound sources Some room ambience, natural, balanced sound Very little proximity effect Much crosstalk (little bass/fundamental) from other sound... -
Page 7: Polar Diagram
the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 180°; see polar diagram). Polar diagram 0° 30° 30° 60° 60° 90° 90° 120° 120° 150° 150° 180° 2000 Hz 125 Hz 250 Hz 4000 Hz 500 Hz... -
Page 8: Frequency Response Curve
Frequency response curve - 40 - 50 - 60 - 70 - 80 - 90 500 1.000 2.000 5.000 10.000 20.000Hz 0°, 1 m Specifications Transducer principle dynamic Frequency response 40 ... 18,000 Hz Pick-up pattern cardioid Sensitivity (free field, no load) (1 kHz) 2 mV/Pa ±... -
Page 9: Overview Of Microphone Applications
Overview of microphone applications Variant Application Vocals Choirs Studio, acoustic instruments Orchestra Brass / Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick drums Snare drums Rack toms Floor toms Congas Cymbals Percussion Overheads e 835 fx... -
Page 10: Manufacturer Declarations
Manufacturer declarations Warranty Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product. For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner. Approval • RoHS-Directive (2011/65/EC) The declarations are available at www.sennheiser.com. - Page 11 China RoHS Parts Pb Hg Cd PBDE EFUP Metal Parts Circuit Modules Cables & Cable Assemblies Circuit Breakers 10 | e 835 fx...
