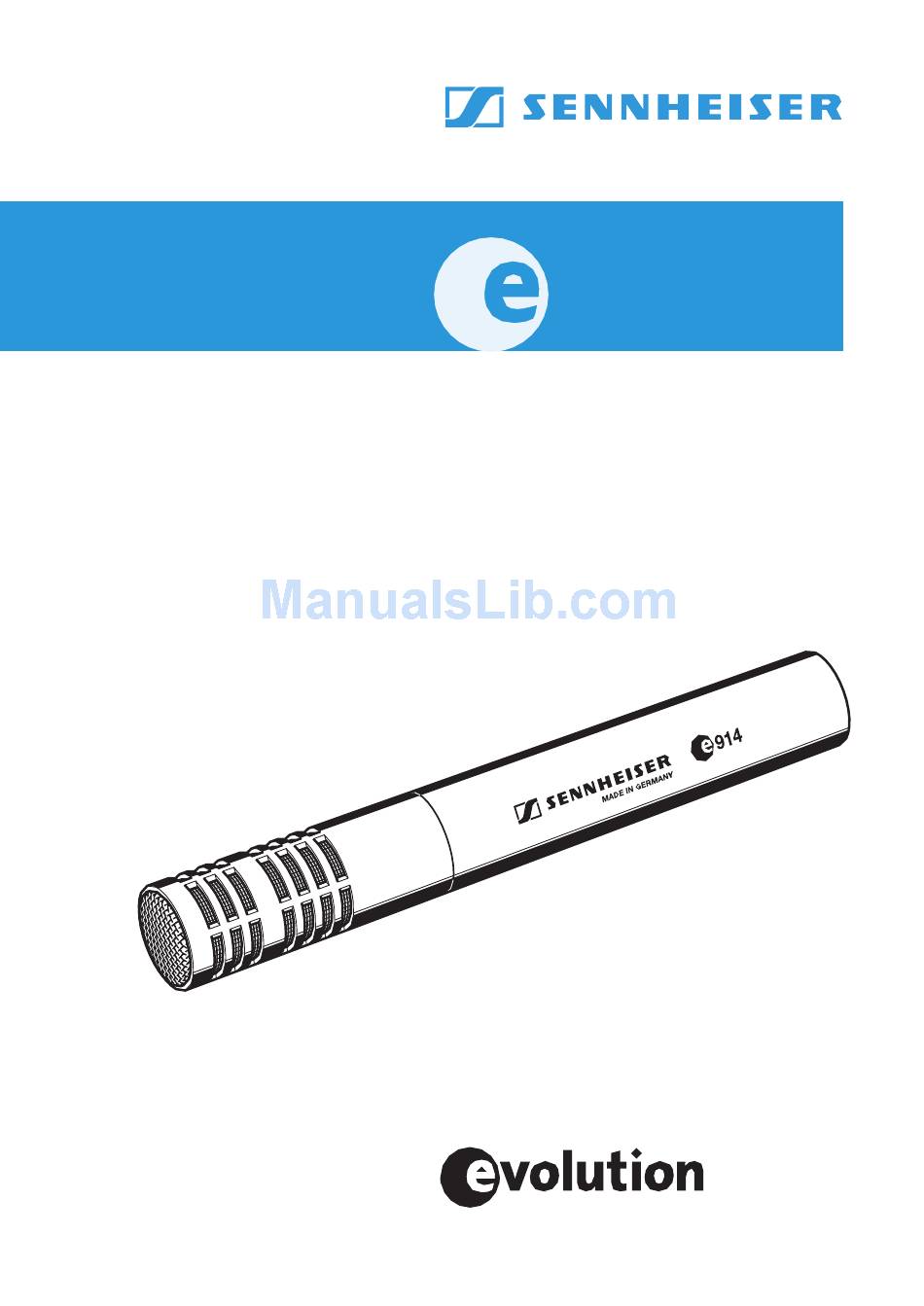

- Page 1 Bedienungsanleitung Instructions for use Notice d‘emploi Istruzioni per l‘uso Instrucciones para el uso Gebruiksaanwijzing...
- Page 2 An excellent microphone for cymbals and hi-hat, the 914 is also an ideal choice for precussion, woodwind and string instruments.
- Page 3 Delivery includes 914 microphone Pouch MZQ 800 microphone clamp MZW 64 windshield Instructions for use Warranty Certificate Note: The microphone head is not compatible with the K6 powering module.
- Page 4 The microphone sensitvity can remain unchanged (0) or be reduced by 10 dB or 20 dB. The latter is recommended when there is a risk that the microphone or subsequent microphone input is overmodulated, e.g. due to high sound pressure levels from drums, brass instruments, etc.
- Page 5 Frequency response curves with different sensitivities - 35 - 40 - 45 - 50 - 55 - 60 - 65 - 70 0 dB Adjusting the bass filter (B) 914 has been designed for an extended low- frequency bass response. With certain live or close instrument miking applications, an over-emphasis of the low frequencies can occur.
-
Page 6: Positioning The Microphone
Percussion Position In order to prevent interference due to crosstalk between adjacent sound sources, try to position the microphone so that the interfering sound source is located in the angle area of the highest cancellation of the microphone (approx. 180°, see polar diagram). -
Page 7: Polar Diagram
Polar diagram 30° 60° 90° 120° 150° 125 Hz 250 Hz 500 Hz 1000 Hz Pin assignment of XLR-3 connector 0° 180° 30° 60° 90° 120° 150° 2000 Hz 4000 Hz 8000 Hz 16000 Hz... - Page 8 Max. sound pressure level at 1 kHz Nominal impedance Min. terminating impedance 1 kΩ Connector Dimensions Weight pre-polarised condenser microphone 20–20,000 Hz cardioid 48 V/2.2 mA 2.3 mV/Pa / 0.7 mV/Pa (with pre-attenuation) 19 dB 0, -10, -20 dB linear roll-off 130 Hz, 6 dB/oct.
-
Page 9: Overview Of Microphone Applications
Overview of microphone applications Modell Anwendung Vocals Choir Studio, acoustic instruments Orchestra Trumpets,Trombones Saxophone Acoustic guitar Acoustic bass Guitar amplifiers Bass amplifiers Leslie Piano, grand piano Kick Drum Snare Drum Rack toms Floor toms Congas Cymbals Percussion Overhead Conference table,... -
Page 10: Manufacturer Declarations
Manufacturer declarations Warranty 2 years Approval Sennheiser electronic GmbH & Co. KG declare that this device is in compliance with the applicable CE standards and regula- tions. WEEE Declaration Please dispose of this product at the end of its operational li- fetime by bringing it to your local collection point or recycling centre for such equipment. - Page 12 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Printed in Germany Publ. 04/07 511911/A01...
