Summary of Contents for Sennheiser RS4200

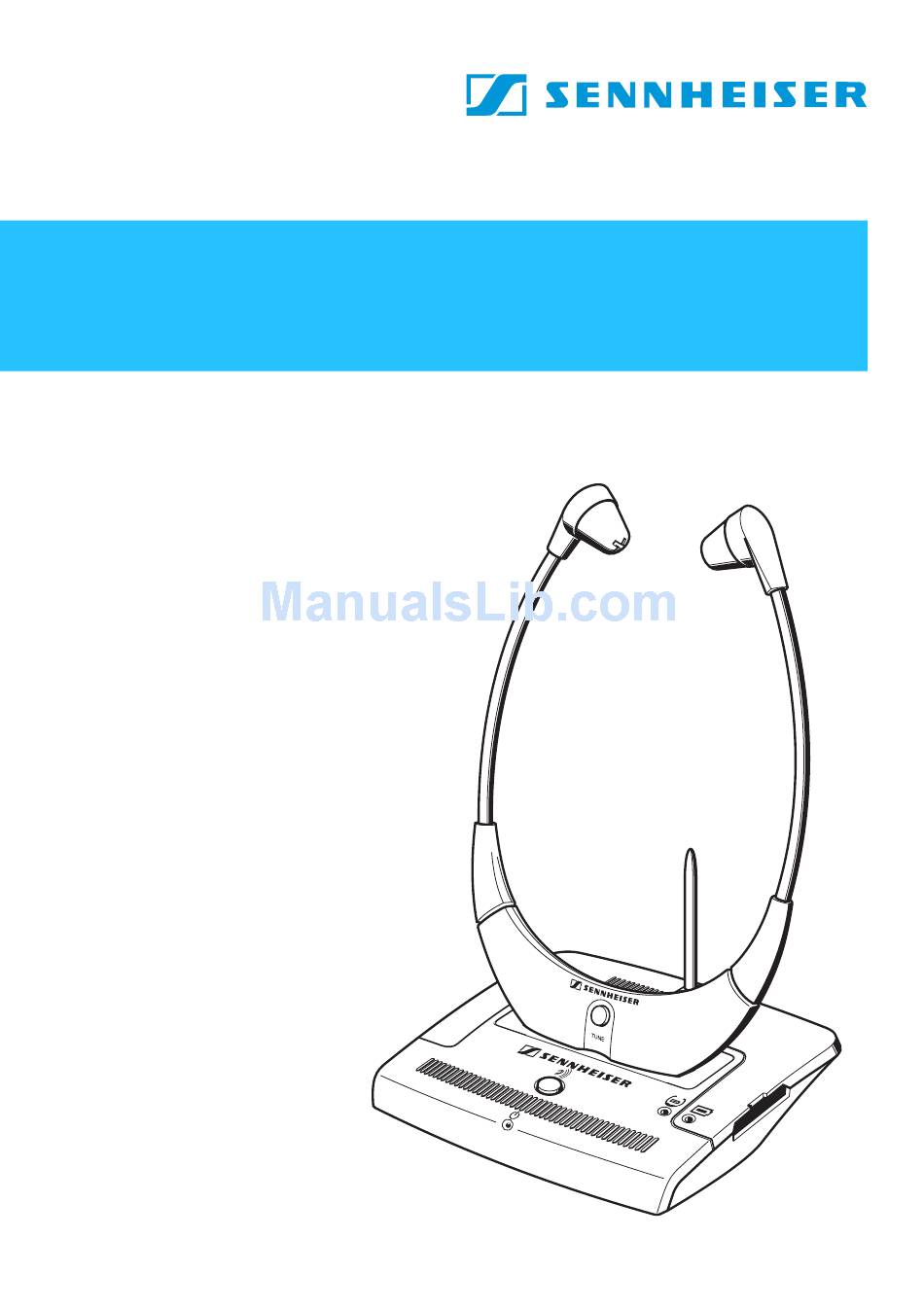

- Page 1 RS 4200 Instructions for use...
-
Page 6: Table Of Contents
Over 60 years of accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment have made Sennheiser a world-leading company in this field. Please take a few moments to read these instructions carefully, as we want you to enjoy your new Sennheiser products quickly and to the fullest. -
Page 7: Safety Instructions
Always include these instructions when passing the system on to third parties. Do not wear the headphones in situations which require special attention (e.g. when performing skilled jobs). Always keep the system dry and do not expose it to extreme temperatures (ideally 10-35°C). -
Page 8: The Rs 4200 Stethoset Receiver System

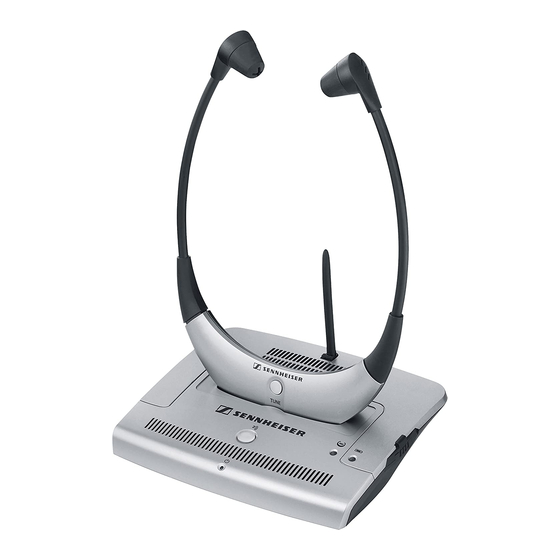

The RS 4200 stethoset receiver system The RS 4200 is a wireless radio frequency stethoset receiver system with which you can adjust the volume of your TV, radio, personal stereo and other hi-fi equipment to suit your individual needs. The transmitter has a range of up to 100 m (depending on outer conditions) which allows you to move around freely –... -
Page 9: Delivery Includes
Delivery includes Delivery of the RS 4200 stethoset receiver system includes: RS 4200-2 product variant The RS 4200-2 allows a second person to listen. The scope of delivery of the RS 4200-2 variant is identical to the delivery of the RS 4200 but includes: 1 RR 4200 stethoset receiver 1 TR 4200 transmitter with integrated charging compartment 1 BA 300 Lithium-Ion rechargeable battery... -
Page 10: Operating Controls
Operating controls Receiver (see inside cover) Volume control Compartment for BA 300 rechargeable battery Balance control TUNE button Transmitter (see inside cover) 3.5 mm stereo jack socket labeled AUDIO (marked blue) for connection of sound source Channel selector switch DC socket labeled 9 V (marked yellow) for connection of mains unit “Speech intelligibility”... -
Page 11: Putting The System Into Operation
Putting the system into operation Setting up the transmitter Connecting the transmitter to the sound source Headphone socket Choose a suitable place near your sound source (e.g. TV). Note: Do not place the transmitter close to metal objects such as shelf bars, reinforced concrete walls, etc. - Page 12 Depending on the socket, you may have to use the adapter In order to prevent damage to hearing, newer TVs often have a function that mutes the TV sound as soon as headphones are connected. If another person wants to listen to the TV sound via the loudspeaker, deactivate the muting function via the TV menu setting.
-
Page 13: Connecting The Transmitter To The Mains
Connecting the transmitter via the SCART socket If your sound source has a SCART socket, you can order the suitable SCART adapter (see “Accessories” on page 16) from your Sennheiser dealer. Using an external microphone If your sound source doesn’t have a headphone or audio output, SCART or RCA socket, you can use your RS 4200 together with an external microphone (see “Accessories”... -
Page 14: Inserting And Removing The Receiver's Rechargeable Battery
Inserting and removing the receiver’s rechargeable battery Insert the battery into the compartment left. Make sure that the battery is inserted correctly. To remove the battery, use the finger catch projection to pull the battery out of the receiver. Note: The receiver is delivered with the battery inserted. -
Page 15: Using The System Components
Listening at high volume levels for long periods can lead to permanent hearing defects. Please protect your hearing, Sennheiser headphones also sound exceptionally good at low volumes. Before putting the receiver on, use the volume control adjust the volume to a low level. -
Page 16: Adjusting The Volume
Adjusting the volume If the transmitter is connected to a headphones socket of your sound source: Adjust the volume of the sound source to a medium level. This improves the quality of wireless sound transmission. Use the volume control and comfortable level. -
Page 17: Adjusting The Balance
Adjusting the balance The RS 4200 features a balance control for right/left volume adjustment. Enhancing speech intelligibility The button Storing and charging the receiver Do not store your receiver on a glass dummy head, chair armrest, or similar for long periods of time as this can reduce the contact pressure of the earbows. -
Page 18: Meaning Of The Leds And Acoustic Signals
Meaning of the LEDs and acoustic signals LEDs on the transmitter Operation indication Charging control LED of receiver rechargeable battery Charging control LED of spare rechargeable battery Speech intelligibility” button Acoustic signals of the receiver Acoustic signal Meaning 6 short beeps No audio signal (transmitter is not activated or out of... -
Page 19: Care And Maintenance
Note: For reasons of hygiene, the ear cushions replaced from time to time. Please order the ear cushions from your Sennheiser dealer. from the receiver. with warm soapy water and rinse before putting them back on the should be... -
Page 20: If Problems Occur
If problems occur that are not listed in the above table or if the problems cannot besolved with the proposed solutions, please contact your local Sennheiser agent for assistance. backlit in yellow? Page 6 ff... -
Page 21: Accessories
Components from other manufacturers (e.g. for power supply or rechargeable battery) may cause damage to the unit and will invalidate the warranty. Only use original Sennheiser accessories and spare parts. BA 300 spare rechargeable battery RR 4200 receiver Ear cushions (normal), 5 pairs... -
Page 22: Specifications
Specifications System Modulation Carrier frequencies Range AF frequency response Transmitter Audio /microphone connection Charging time of rechargeable battery Power supply Weight Dimensions Receiver Max. SPL Power supply Operating time Weight Dimensions FM stereo 863.3 / 864.0 / 864.7 MHz up to 100 m in the open 50 Hz–16 kHz <... -
Page 23: Manufacturer Declarations
Manufacturer Declarations Warranty regulations The guarantee period for this Sennheiser product is 24 months from the date of purchase. Excluded are accessory items, rechargeable or disposable batteries that are delivered with the product; due to their characteristics these products have a shorter service life that is principally dependent on the individual frequency of use. - Page 24 Sennheiser electronic GmbH & Co. KG 30900 Wedemark, Germany Phone +49 (5130) 600 0 Fax +49 (5130) 600 300 www.sennheiser.com Publ. 10/06 Printed in China 517634 / A02...
