Dimensions and Weights

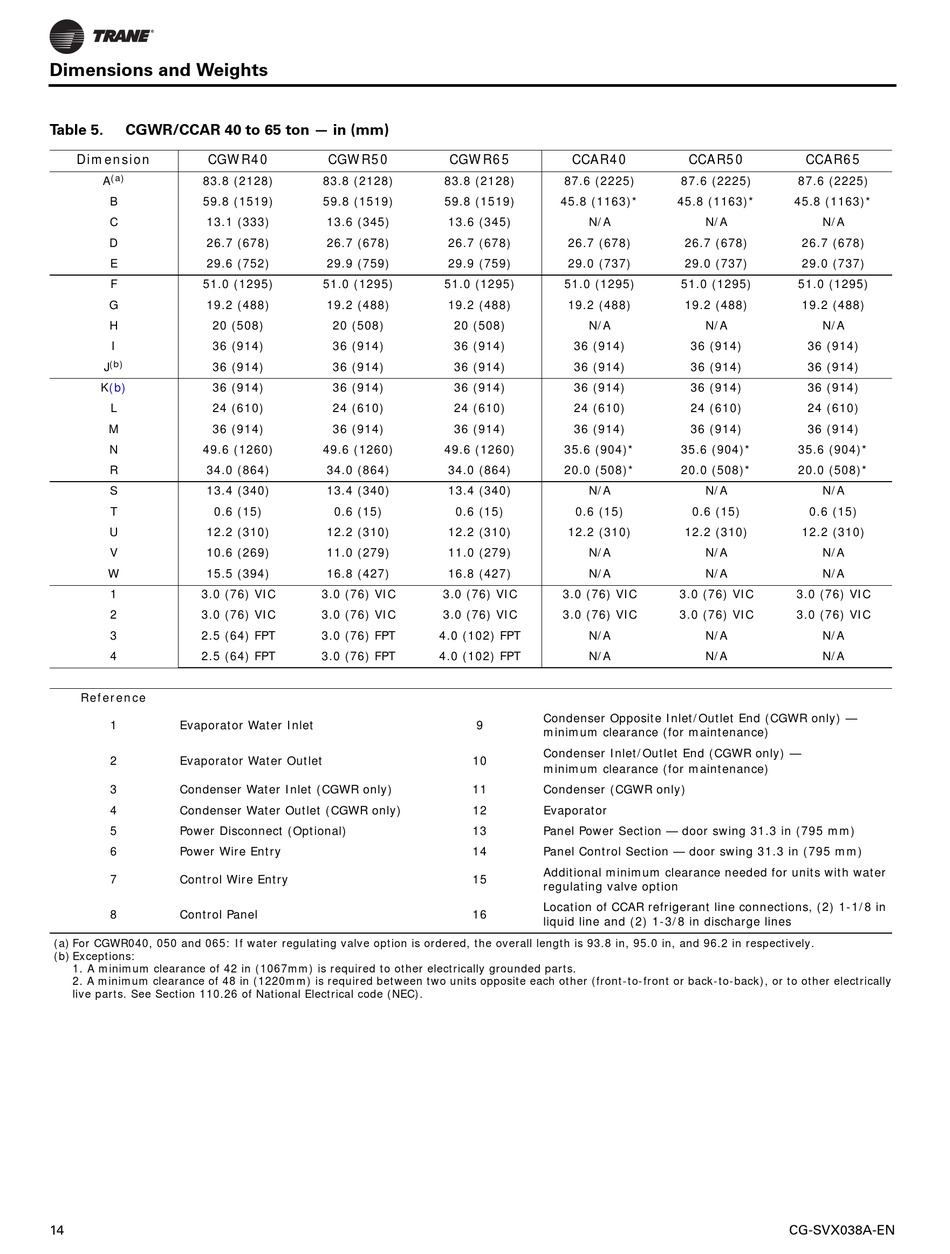

Table 5. CGWR/CCAR 40 to 65 ton — in (mm)
Dimension CGWR40
(a)
A 83.8 (2128)
B 59.8 (1519)
C 13.1 (333)
D 26.7 (678)
E 29.6 (752)
F 51.0 (1295)
G 19.2 (488)
H 20 (508)
I 36 (914)
(b)
J 36 (914)
K(b) 36 (914)
L 24 (610)
M 36 (914)
N 49.6 (1260)
R 34.0 (864)
S 13.4 (340)
T 0.6 (15)
U 12.2 (310)
V 10.6 (269)
W 15.5 (394)
1 3.0 (76) VIC
2 3.0 (76) VIC
3 2.5 (64) FPT
4 2.5 (64) FPT
Reference
1 Evaporator Water Inlet
2 Evaporator Water Outlet
3 Condenser Water Inlet (CGWR only)
4 Condenser Water Outlet (CGWR only)
5 Power Disconnect (Optional)
6 Power Wire Entry
7 Control Wire Entry
8 Control Panel
(a) For CGWR040, 050 and 065: If water regulating valve option is ordered, the overall length is 93.8 in, 95.0 in, and 96.2 in respectively.
(b) Exceptions:
1. A minimum clearance of 42 in (1067mm) is required to other electrically grounded parts.
2. A minimum clearance of 48 in (1220mm) is required between two units opposite each other (front-to-front or back-to-back), or to other electrically
live parts. See Section 110.26 of National Electrical code (NEC).
14
CGWR50 CGWR65
83.8 (2128) 83.8 (2128)
59.8 (1519) 59.8 (1519)
13.6 (345) 13.6 (345)
26.7 (678) 26.7 (678)
29.9 (759) 29.9 (759)
51.0 (1295) 51.0 (1295)
19.2 (488) 19.2 (488)
20 (508) 20 (508)
36 (914) 36 (914)
36 (914) 36 (914)
36 (914) 36 (914)
24 (610) 24 (610)
36 (914) 36 (914)
49.6 (1260) 49.6 (1260)
34.0 (864) 34.0 (864)
13.4 (340) 13.4 (340)
0.6 (15) 0.6 (15)
12.2 (310) 12.2 (310)
11.0 (279) 11.0 (279)
16.8 (427) 16.8 (427)
3.0 (76) VIC 3.0 (76) VIC
3.0 (76) VIC 3.0 (76) VIC
3.0 (76) FPT 4.0 (102) FPT
3.0 (76) FPT 4.0 (102) FPT
9
10
11
12
13
14
15
16
CCAR40 CCAR50
87.6 (2225) 87.6 (2225)
45.8 (1163)* 45.8 (1163)*
N/A N/A
26.7 (678) 26.7 (678)
29.0 (737) 29.0 (737)
51.0 (1295) 51.0 (1295)
19.2 (488) 19.2 (488)
N/A N/A
36 (914) 36 (914)
36 (914) 36 (914)
36 (914) 36 (914)
24 (610) 24 (610)
36 (914) 36 (914)
35.6 (904)* 35.6 (904)*
20.0 (508)* 20.0 (508)*
N/A N/A
0.6 (15) 0.6 (15)
12.2 (310) 12.2 (310)
N/A N/A
N/A N/A
3.0 (76) VIC 3.0 (76) VIC
3.0 (76) VIC 3.0 (76) VIC
N/A N/A
N/A N/A
Condenser Opposite Inlet/Outlet End (CGWR only) —
minimum clearance (for maintenance)
Condenser Inlet/Outlet End (CGWR only) —
minimum clearance (for maintenance)
Condenser (CGWR only)
Evaporator
Panel Power Section — door swing 31.3 in (795 mm)
Panel Control Section — door swing 31.3 in (795 mm)
Additional minimum clearance needed for units with water
regulating valve option
Location of CCAR refrigerant line connections, (2) 1-1/8 in
liquid line and (2) 1-3/8 in discharge lines
CCAR65
87.6 (2225)
45.8 (1163)*
N/A
26.7 (678)
29.0 (737)
51.0 (1295)
19.2 (488)
N/A
36 (914)
36 (914)
36 (914)
24 (610)
36 (914)
35.6 (904)*
20.0 (508)*
N/A
0.6 (15)
12.2 (310)
N/A
N/A
3.0 (76) VIC
3.0 (76) VIC
N/A
N/A
