Maintenance

Schedule C Maintenance

NOTE: Perform Schedule C maintenance after 1000
hours of service. Before proceeding below, first perform
all tasks listed under Schedule A Maintenance and
Schedule B Maintenance.
NOTE: The following procedures require special tools
and skills. Contact a Independent Authorized Service
Dealer to perform these tasks.
•
Inspect Fuel Tank
•
Check/Adjust Fuel Injection Valve Pressure
•
Check/Adjust Fuel Injection Pump Timing
•
Adjust Intake/Exhaust Valve Clearance
•
Tighten Critical Fasteners
NOTE: Reset the A-B-C/Year
schedule counter using the Dealer Sub Menu (password
required).
40

Return To Service

After inspection, maintenance or service of the generator,
return the unit to service following the steps below.
time maintenance
1. Pull up rubber flap covering fuse holder (A) and
install 7.5 amp fuse. See
2. Install T1 fuse in transfer switch.
3. Verify both auxiliary shutdown switches are in the
ON (I) position.
4. Press AUTO (C) on the control pad. A green LED
illuminates to confirm that the system is in the
AUTO mode.
5. Move the Main Circuit Breaker switch up to the ON
(Closed) position.
6. Close the viewing window.
7. Remove the DO NOT OPERATE tag or placard
from both the control panel and transfer switch.
8. Reset the time and date.
o
OFF
PUSH TO TRIP
B
C

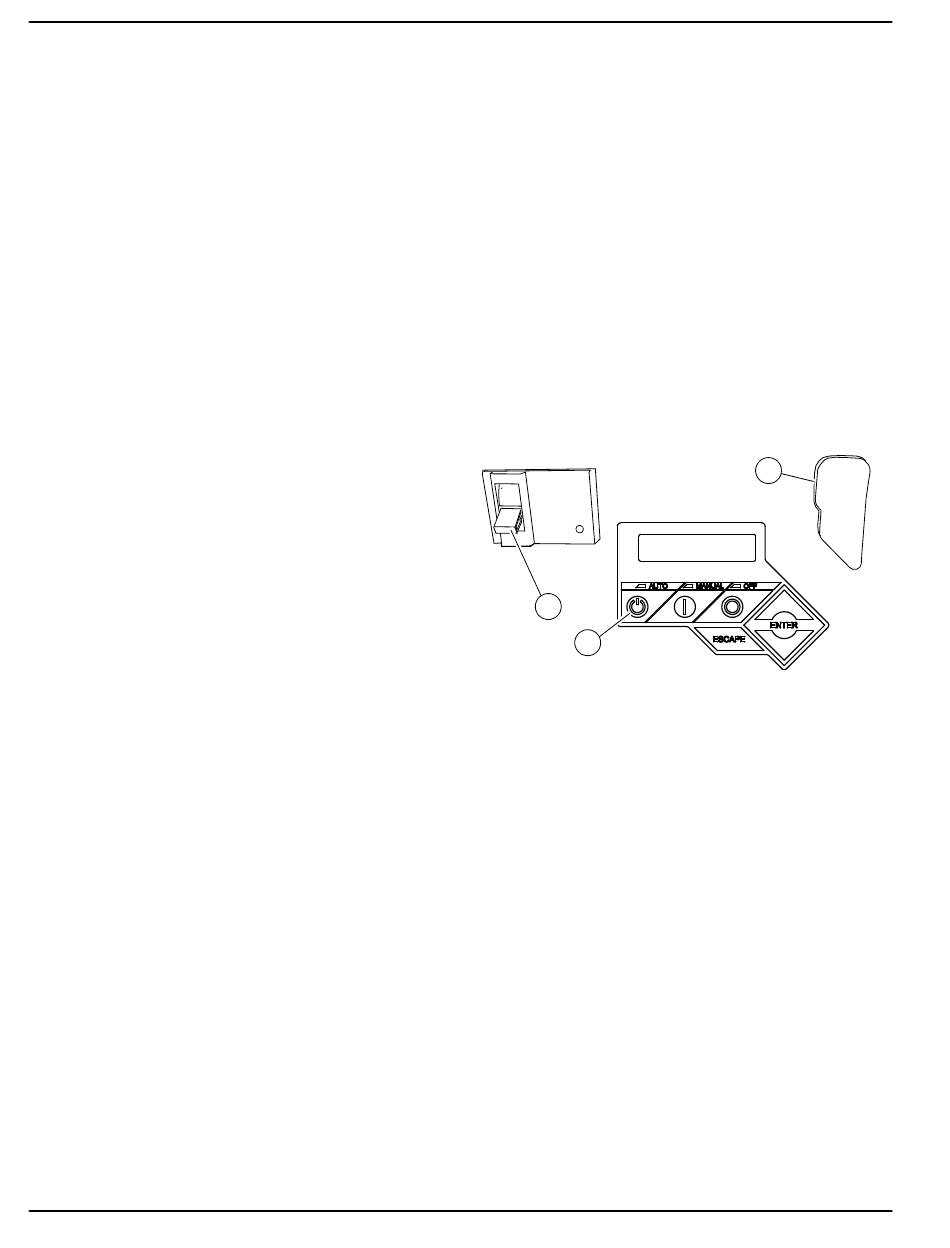

Figure 5-22. Generator Control Panel
Owner's Manual for Stationary Diesel Generators
Figure 5-22.
