CONTENTS
SAFETY
........... , .............. . .............................
............... .....1-3
INSTALLATION
.......... ............... ,.............. ,........... ... ................... 4-7
USE AND CARE
Your Counter Unit and Its Features ..........................
8
Cooktop Cooking ....................................................
Control Knobs .............................................................
9
Spark Ignition ..............................................................
9
Cleaning Tips ............................................................
10
Parts .................................................
11-12
BEFORE
CALLING
FOR SERVICE
What to 0o Before Calling for Service .................... 12
WARRANTY
MODELS
32O2O
32O21
32025
SF_AIRS
Kenmore
MAR 2 9z00e

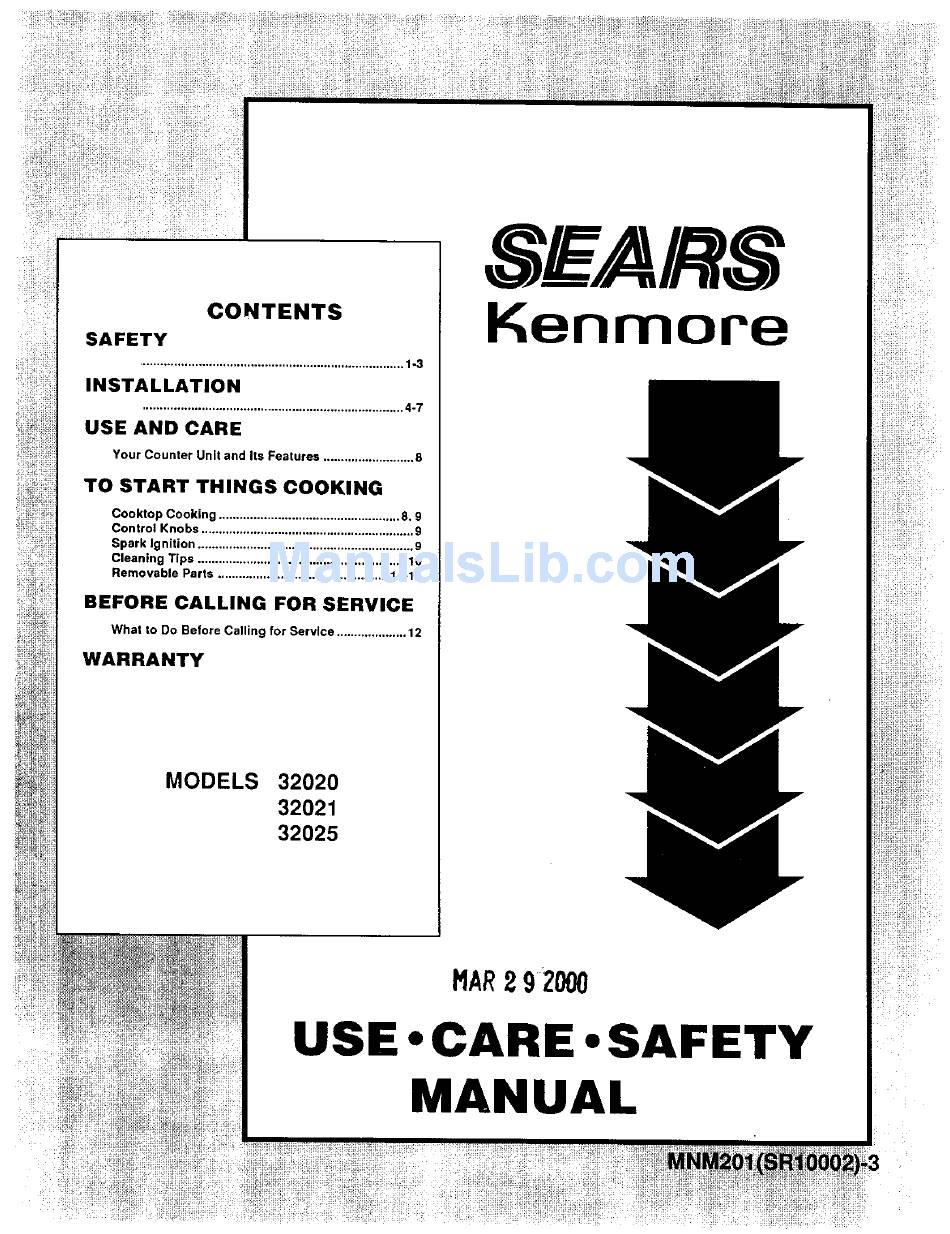

USE • CARE • SAFETY
MANUAL
Advertisement
Related Manuals for Kenmore 32025
Summary of Contents for Kenmore 32025
-
Page 1: Table Of Contents
Spark Ignition ... Cleaning Tips ... Removsble Parts ... BEFORE CALLING FOR SERVICE What to 0o Before Calling for Service ... 12 WARRANTY MODELS 32O2O 32O21 32025 USE • CARE • SAFETY SF_AIRS Kenmore 8. g 11-12 MAR 2 9z00e MANUAL... - Page 2 IMPORTANT Read all instructions appliances, basic safety WARNING: If the InformaUon In this manual Is not followed exactly, a fire or explosion may result causing property damage, personal Injuryordeath. Do not store or use gasoline flammable vapors and liquids In the vicinity of this or any other appliance.
- Page 3 CAUTION: Never store things In an ovenor near cooktop elements/burners. These things may catch fire and plastic Items could melt. CAUTION: Do Not store Items of Interest to children above a counter unit.
- Page 4 In this book. cause steam burns If used on a hot surface. Always All other glass surface ot the cooktop will retain heat after con- trols have been turned off. Always other linens a safe distance away from your counter unit.
- Page 5 IMPORTANT: Reaching over surface burners can cause fire or burns. You should not use storage space above the cooktop. If you choose to use cabinets above the cooktop, a range hood that sticks out at least 5" beyond the front 3"...
- Page 6 PREPARATION Adequate counterspace must be provided for the unit. The area should be easy to reach and be lighted with natural light during the day. See t he first page for cutout dimensions. Mark the cutout on t he counter. Use a hand or saber saw to make t he cut. ELECTRICAL CONNECTIONS Call your Electric Company and ask which codes apply...
- Page 7 OFF before you open the main gas supply valve. See next page for information on placing burner tops on cooktop burners. TO CHECK Apply a soap solution to all gas connections. L. P. should be will form where any gas Is leaking.
- Page 8 REMOVING SHIPPING Lift the cooktop (g rasp at front) and remove the shipping screw from each of the four surface burner assemblies (see Fig. 7). The screws can be discarded. ADJUSTMENTS L.P. GAS CAUTION: The following adjustments made before turning on the burner. Failure to do so could result in serious injury.
-
Page 9: Your Counter Unit And Its Features
The model and serial number of your counter unit can be found on a tag on the underside of the unit. BURNER GRATE (See page 10) BURNER BOWL (See page 10) COUNTER IMPORTANT: COOKTOP (See page 11) UNIT COOKTOP CONTROLS (See page 9) (See page 11) NGCUF02... -
Page 10: To Start Things Cooking
Flames licking pan sides are unsafe and waste heat. If a cooktop burner falls to IIght within five seconds, turn the knob to OFF and wait five minutes before trying again. If the burner still will not light, check the service section In this manual. -
Page 11: Cleaning Tips
Do not use metal scouring pads, except where recommended. PART Control panel and knobs Porcelain enameled cooktop, area under cooktop, burner grates, burner bowls Cooktop burners Brushed chrome cooktop Cooktop finishes brushed chrome. -
Page 12: Removsble Parts
To raise ¢ooktop: 1. Remove the burner grates, bowls and knobs. 2. Grasp the cooktop at the front and lift up. 3. Raise the support rod Into place to hold the cooktop while cleaning. Securethe rodlnto the spacer bracket on the cooktop. -
Page 13: What To 0O Before Calling For Service
Cooktop burners will not light Ticking sound of spark Igniter persists after burner lights Ticking sound of spark Igniter persists after burner isturned Heavily soiled or stained chrome cooktop cannot be satisfactorily cleaned To replace Be sure that the 1. Match the flat side of the "D" Shaft on the knob to the flat side of the stem and replace knob. - Page 14 NOTES...
- Page 15 "We Service What We Sell" Is our assurance service Is nationwide. Your Kenmore Counter Unit has added value when you consider that Sears has a service unit near you staffed by Sears trained tech nlclans.., profeselonal technicians specifically trained on Sears appliances, having the parts, tools and equipment to ensure that we meet our pl_.dge to you -- "We Service What We Sellr'...
