Motorola TC 70 Quick Start Manual

TC70
QUICK START
GUIDE
Review Copy

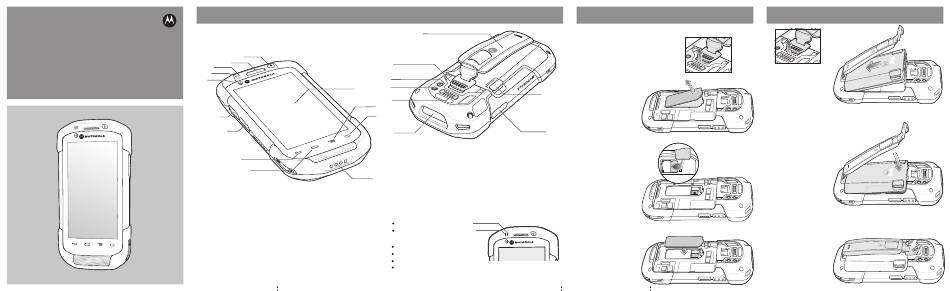

FEATURES
Note: Remove protective shipping film that covers the touch screen, exit
window and camera window before using.
9
10
11
12
13
8
7
6
1
2
3
4
5
1 Scan Button 8 Touch Screen (with screen
2 Programmable Button
protector)
3 Back Button 9 Power Button
4 Home Button
10 Receiver
5 Power Input 11 Charging/Notification LED
6 Search Button 12 Data Capture LED
7 Menu Button 13 Front-facing Camera
Note 1: To reset the TC70, press and hold the Power button until the menu
appears and then select Reset.
21
14
15
16
20
17
19
18
14 Handstrap Mounting Point 18 Exit Window
15 Camera Flash
19 Volume Button
16 Rear-facing Camera
20 Battery Release Latch
17 Interface Connector
21 Handstrap
Notifications
Data Capture LED:
Charging/Notification
Green: Good Decode
Data Capture
Red: Data capture in process
Charging\Notification LED:
Slow blinking amber: Battery charging
Solid green: Fully charged
Fast blinking amber: Charging error
Slow blinking blue: Application notification.
CARD INSTALLATION
MicroSD Card Installation (Optional)
1. Remove the handstrap.
2. Lift the access door.
3. Insert the microSD card into the card holder.
1
1
Push the card all the way into the card holder.
NOTE :
2 2
Proper position of the microSD card — the
card connector (i.e., gold
contacts) should be facing
down.
4. Replace the access
door. Ensure that it is
properly seated.
3 3
4 4
BATTERY INSTALLATION
1
1 2
2
Remove the handstrap.
1.
2. Insert the bottom of the battery into
the battery compartment.
3. Rotate the battery down into the
battery compartment and press the
battery down until it snaps into
position.
4. Re-attach the handstrap.
3 3
4 4
