Scag Power Equipment SWU Operator's Manual

Scag power equipment operator's manual
Hide thumbs Also See for SWU:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL SWU
PART NUMBER 03085

Advertisement

Table of Contents
loading

Related Manuals for Scag Power Equipment SWU

Summary of Contents for Scag Power Equipment SWU

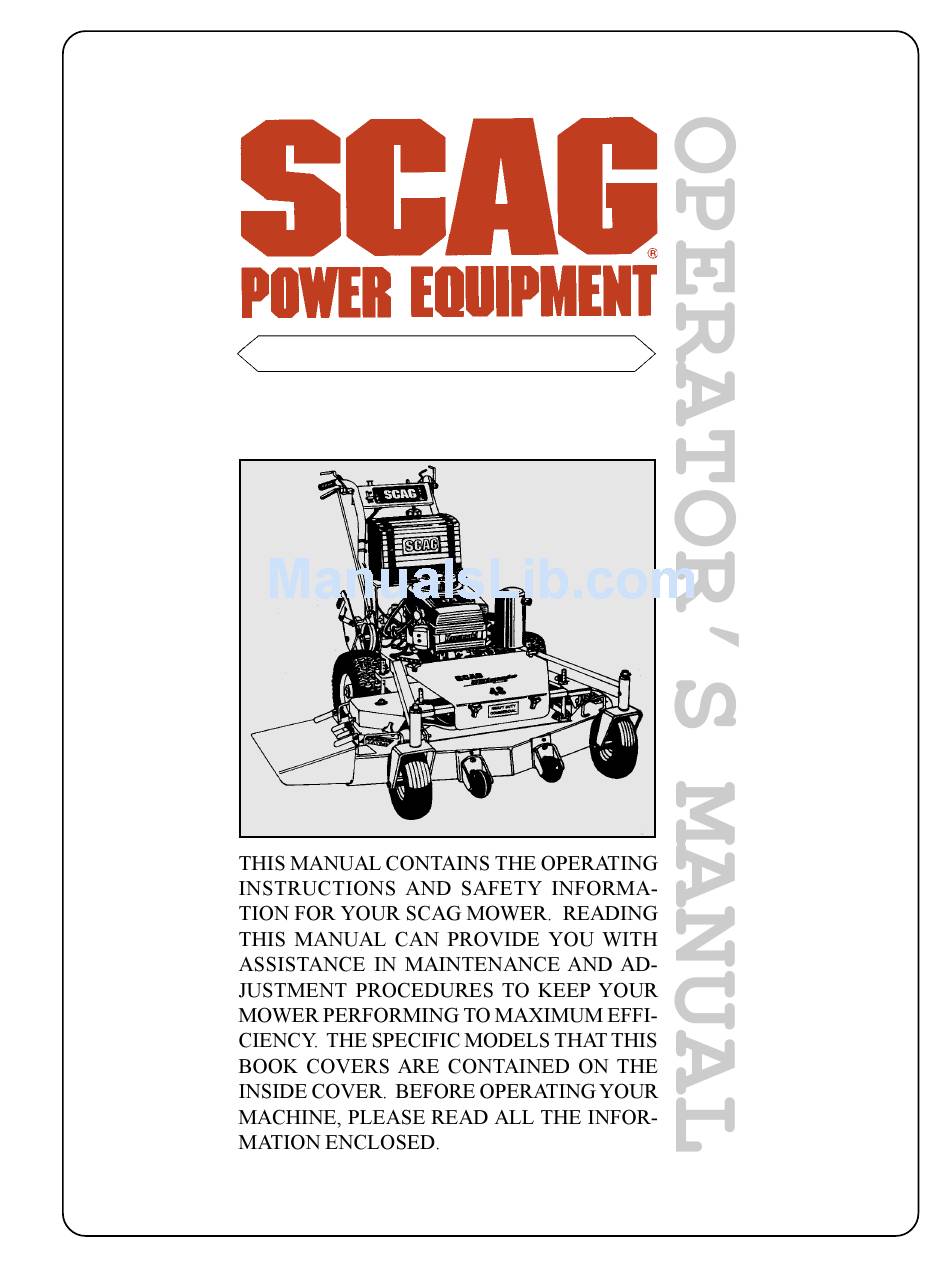

  • Page 1 MODEL SWU PART NUMBER 03085...
  • Page 2 WARNING: REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR! Hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper training of the personnel involved in the operation, transport, maintenance, and storage of the equipment.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SUBJECT PAGE Introduction ... 1 General Safety Instructions ... 1 Signal Words ... 1 Symbols ... 2-3 Before Operating ... 4 While Operating ... 4-5 Maintenance and Storage ... 5-6 Initial Run-In Procedures ... 6 Mower Operation ... 6-7 Cutter Deck Belt Adjustments ...
  • Page 4 TABLE OF CONTENTS (CONTINUED) SUBJECT PAGE Illustrated Parts List Notes ... 15 SWMU - 36" Cutter Deck ... 16-17 SWMU - 48" & 52" Cutter Deck ... 18-19 Deck Frame - 36" ... 20-21 Deck Frame - 48" & 52"... 22-23 Engine Deck ...

  • Page 5: Introduction

    INTRODUCTION SIGNAL WORDS GENERAL SAFETY INSTRUCTIONS WARNING: CAUTION:...

  • Page 6: Symbols

    ISO Symbols SYMBOL DESCRIPTION SYMBOL DESCRIPTION 48071S WARNING FALLING HAZARD USE ONLY SCAG APPROVED RIDING ATTACHMENTS SEE OPERATOR'S MANUAL 481109...

  • Page 7: Symbols

    SYMBOL DESCRIPTION SYMBOL DESCRIPTION 481039S...

  • Page 8: Before Operating

    BEFORE OPERATING WHILE OPERATING...

  • Page 9: Maintenance And Storage

    MAINTENANCE AND STORAGE WARNING: DO NOT operate on steep slopes. To check a slope, attempt to back up it (with the cutter deck down). If the machine can back up the slope without the wheels slipping, reduce speed and use extreme caution. ALWAYS FOLLOW OSHA APPROVED OPERATION.

  • Page 10: Initial Run-In Procedures

    MOWER OPERATION INITIAL RUN-IN PROCEDURES (FIRST DAY OF USE OR APPROXIMATELY 10 -NOTE- HOURS) PULL UP TO ENGAGE PUSH DOWN TO DISENGAGE 390S0138...

  • Page 11: Cutter Deck Belt Adjustments

    -NOTE- WARNING: -NOTE- CUTTER DECK BELT ADJUSTMENTS TRANSMISSION DRIVE BELT DRIVE CONTROL ADJUSTMENTS NEUTRAL LATCH 3/4" STEERING BRAKE LEVER Figure 1. Steering Control Rod Adjustment "ADJUST-A-GRIP SETTINGS" NEUTRAL LOCK POSITION DRIVE POSITION SC404GB...

  • Page 12: Adjusting Cutting Height

    Do not reach under the cutter deck to lift it. SWU99AG Remove Hair Pins Figure 3. Cutting Height Adjustment CUTTER BLADES DO NOT CUT IN Figure 4. Blade Sharpening Lift deck with handles only 2K SWU DHA -NOTE- ANGLE BLADE BACK X MUST NOT EXCEED 1/3 BLADE WIDTH SC4O8G...

  • Page 13: Lubrication And Maintenance Chart

    LUBRICATION & MAINTENANCE BREAK-IN 8 HOURS (DAILY) 40 HOURS (WEEKLY) 100 HOURS (BIWEEKLY) COMMENTS PROCEDURE...

  • Page 14: Troubleshooting Cutting Conditions

    TROUBLESHOOTING CUTTING CONDITIONS CONDITION Stringers - Occasional Low engine RPM Blades of Uncut Grass Ground speed too fast Wet grass Dull blades, incorrect sharpening Deck plugged, grass accumulation Width of Deck Belts slipping SGB020 Streaking - Strips of Dull, worn blades Uncut Grass in Cutting Path Incorrect blade sharpening...
  • Page 15 TROUBLESHOOTING CUTTING CONDITIONS CONDITION Uneven Cut on Flat Lift worn off of blade Ground - Wavy High-Low Blade upside down Appearance, Scalloped Cut, or Rough Contour Deck plugged, grass accumulation Too much blade angle (deck pitch) Deck mounted improperly Bent spindle area Dull blade Width of Deck SGB020...

  • Page 16: Troubleshooting Cutting Conditions

    TROUBLESHOOTING CUTTING CONDITIONS CONDITION Scalping - Blades Low tire pressures Hitting Dirt or Cutting Very Close to Ground speed too fast the Ground Cutting too low Rough terrain Ground speed too fast Wet grass Width of Deck SGB022 Step Cut Blades not mounted evenly Ridge in Center of Cutting Path...

  • Page 17: Technical Specifications

    MODELS ENGINE General Type: Brand / Model: Horsepower: Type: Displacement: Cylinder: Governor: Air Cleaner: Exhaust: Fuel Pump Group: Oil Pump Group: Starter/Electrical: ENGINE DECK Thickness: Fuel Tank: Drive Wheels/Tires: Handle Bars: DRIVE SYSTEM Type: Transmissions: Steering/Travel Control: Brakes: Axles: Wire Harness: Safety Group: Forward Speed Range: Reverse Speed Range:...

  • Page 18: Technical Specifications

    TECHNICAL SPECIFICATIONS (CON'T) CUTTER DECK Type: Construction: True Cutting Width: Blade Engagement: Cutting Height Adjustment: Cutter Blades: Discharge Opening: Caster Wheels: Spindles: Spindle Pulleys: Idler Arm: Cutter Deck Belts: ADDITIONAL SPECIFICATIONS OPTIONAL ITEMS/ATTACHMENTS Fabric Grass Catcher: Metal Grass Catcher: Sulky: Mulch Master APPROXIMATE DIMENSIONS Length:...

  • Page 19: Notes

    NOTES...

  • Page 20: Swmu - 36" Cutter Deck

    36" CUTTER DECK "A" 13 34 To"A" 2001-SWU-CD36...
  • Page 21 Ref. Part No. Number Description 461363 Cutter Deck (Includes Decals) 04017-27 Capscrew, 3/8-16 x 1.0"Serrated Flange Hex Hd 422478 Bracket, Anti-Scalp Wheel 04021-05 Lock Nut, 3/8-16 Center Lock 48100-15 Bushing, 376 ID Oilite 481632 Wheel, Anti-Scalp (Incl. Item 5) 04003-26 Bolt, Carriage 3/8-16 x 4.0"...

  • Page 22: Swmu - 48" & 52" Cutter Deck

    "D" To"B" To "C" To"A" 48" & 52" CUTTER DECKS "A" "B" "C" To "D" 2001-SWU-CD48, 52...
  • Page 23 Ref. Part No. No. Description 461368 Cutter Deck With Decals 48" 461373 Cutter Deck With Decals 52" 04017-27 Capscrew, 3/8-16 x 1.0" Serrated Flange 04021-05 Lock Nut, 3/8-16 Center Lock 48100-15 Bushing, 376 ID Oilite 481632 Wheel, Anti-Scalp 422478 Bracket, Anti-Scalp Wheel 04003-26 Bolt, Carriage 3/8-16 x 4.0"...

  • Page 24: Deck Frame - 36

    36" DECK FRAME 36" Deck Frame SWU99DF36...
  • Page 25 Ref. Part No. No. Description 461170 Belt Cover With Decal 481625-01 Knob With Stud 04029-03 Knob, Deck Cover Mounting 48100-08 Bushing, Caster 451097 Frame Weldment, Deck Mounting - 36" 04062-04 Hair Pin Cotter, .177 x 3.25" 48114-04 Grease Fitting Str. 1/4-28 Self Tap 04066-01 Quick Pin .438 Dia 04024-02...

  • Page 26: Deck Frame - 48" & 52

    48" Deck Frame 48" & 52" DECK FRAME SWU99DF48...
  • Page 27 Ref. Part No. No. Description 461171 Belt Cover With Decal - 48" 461279 Belt Cover With Decal - 52" 481625-01 Knob With Stud 04029-03 Knob, Deck Cover Mounting 48100-08 Bushing, Caster 451098 Frame Weldment, Deck Mounting - 48" 451155 Frame Weldment, Deck Mounting - 52" 48114-04 Grease Fitting Str.

  • Page 28: Engine Deck

    15, 17 KA ONLY To "B" 40, 40A To "A" ENGINE DECK ENGINE DECK "B" Pulley "X" "A" Pulley "X" 2K SWU ED...
  • Page 29 Ref. Part No. No. Description 482144 Engine,15HP Kawasaki (FH451V - AS02) 481563 Engine, 17HP Kawasaki (FH500V) 48030-09 Cable Clamp 481580 Transmission, 5-speed (Peerless 700-070, 9 spline) 48231 Neutral Safety Switch 48122-01 Fibre Washer, thin 5A 48122-02 Fibre Washer, thick 481581 Coupler, Jackshaft 48114-05 Grease Fitting, straight 1/4-28...

  • Page 30: Handle Assembly

    HANDLE ASSEMBLY HANDLE ASSEMBLY 2K SWU HA...
  • Page 31 Ref. Part No. No. Description 49403 Handle Assembly 16" Frame 421360 Belt Guard 04017-27 Capscrw, 3/8-16 x 1" Ser. Flange 04041-07 Flatwasher, 3/8 (.391 x .938 x .105) 04021-09 Nut, 3/8-16 Elastic Stop 481834 Spring, Idler 04001-10 Bolt, 5/16-18 x 1-1/4" Hex Head 04021-10 Nut, 5/16-18 Elastic Stop 04017-05 Capscrew, 1/4-20 x 3/4"...

  • Page 32: Instrument Panel

    Ref. Part No. No. Description 48717 Switch, Neutral Interlock 48946 Throttle Control 481687 Engagement Switch, Electric Clutch 48609 Key Switch (Includes hardware) 48023 Hour Meter (Dealer installed) Screw, #10-32 x .50 Phillips Washer Head 04019-01 Nut, #10-32 Serrated Flange Hex Head 481678 Handle Wire Harness, Manual Start 48030-09...

  • Page 33: Peerless Transmission

    REF. PART NO. NO. DESCRIPTION 772083A Case, Transmisson 780086A Needle Bearing Grease Spec 780142 Needle Bearing 770061A Case, Transmission 792089A Shift Key 784266 Shift Collar 784376 Shift Rod & Fork 778154 Bevel Gear (42 teeth) 778176 Bevel Pinion (14 teeth-steel) 792077 Steel Ball, 5/16"...

  • Page 34: Wire Harness - Handle

    BLACK YELLOW...

  • Page 35: Wire Harness - Engine Deck

    WHITE WHITE YELLOW INSTRUMENT PANEL HARNESS WIRE HARNESS ADAPTER / KAWASAKI BLADE CLUTCH GROUND BLACK ADAPTER - ENGINE PART NO. 481717 ENGINE DECK WIRE HARNESS - 15 HP KAWASAKI 17 HP KAWASAKI PART NO. 481073 WIRE HARNESS 2K SWU WH481073...

  • Page 36: Replacement Decals

    CAUTION BEFORE OPERATING MOWER DECK READ OPERATORS PULL OUT TO ENGAGE MANUAL AND SAFETY INSTRUCTIONS CAUTION KEEP BYSTANDERS AWAY PUSH IN TO DISENGAGE 481684 481684 48314 48314 481863 481905...

  • Page 37: Operating Machine

    PARKING BRAKE 482285 INSTALL BELT COVER BEFORE Hea vy- Duty Comm e rcial 481971 481971 481483 WARNING OPERATING MACHINE READ OPERATOR'S MANUAL 481039 MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING PATENTS: 4, 487, 006 4, 991, 382 4, 885, 903 4, 998, 948 4, 920, 733 5, 118, 617...
  • Page 38 36" - 482297 48" - 481953 52"- 481954 R N 1 2 3 WARNING DO NOT OPERATE WITHOUT DISCHARGE CHUTE, MULCHING KIT, OR ENTIRE GRASS CATCHER INSTALLED 482286 WARNING FALLING HAZARD USE ONLY SCAG APPROVED RIDING ATTACHMENTS SEE OPERATOR'S MANUAL 481109 48332 48332...
  • Page 39 LIMITED WARRANTY - COMMERCIAL EQUIPMENT...

This manual is also suitable for:

Swu36a-15kaSwu48a-17kaSwu52a-17ka
