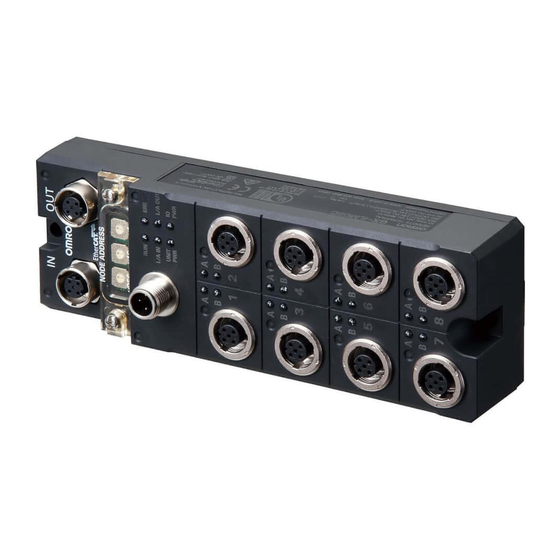

Omron GX Series Instruction Sheet

GX series INSTRUCTION SHEET
© OMRON Corporation 2016 All Rights Reserved.
9609146-4A
Precautions for Compliance with
EU Directives
Notice to Users of the GX series components in Europe
This manual must be consulted in all cases in order to find out the nature of the potential
HAZARDS and any actions which have to be taken to avoid them. If the equipment is
used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired.
Environment
Surrounding Air temperature: -10 to 55 °C
Surrounding Air Humidity: 25% to 85%
Unit power supply: 24V dc (-15% to +10%, SELV), Max. 0.06A
I/O power supply: 24V dc (-15% to +10%, SELV), Max. 0.1A
Indoor use only
Altitude: Max. 2,000 m
Installation environment:
Overvoltage Category II, Pollution Degree 2
IP67
Ratings
[IO-Link mode]
IO-Link: 24V dc, 8ports
DI input: 24V dc, 2mA/port
Device supply source 24V dc, 0.2A/port
[SIO mode, Digital input]
24V dc, 5mA/port
Sensor supply source 24V dc, 0.2A/port
[SIO mode, Digital output]
24V dc (GEN) (P.D.), 0.3A/port
Current restrictions from power supply connector
The external power supplies must be DC power supplies that satisfy the SELV
requirements. It must be equipped with an oveprotection with current limitation.
I/O power supply
Unit power supply
: Over-current protection
(Current limitation :
F4A Min.24V dc)
Wiring diagram for I/O
1 2 2
DI DI L-
L+
4 3 1
C/Q
C/Q L- L+
1 4 3 2
IO-Link Device Solenoid or Valve
LAN Cable
Product name
Comment
Twist-pair cable 100BASE-TX (Category 5 or higher)
(Cable with connectors below are Double-shield (aluminum tape +
also allowed) braidedshielding)
M12 type connector D-coding
Category 5 or higher Shielded
Installation method
Use screws to mount the Slave in the Control Panel.
Conformance to EU Directives
This product is EMC-compliant when assembled in PLC system or Machine
Automation Controller.
To ensure the EC Directive conformance of customer's machinery or equipment in
which the product is incorporated, be sure to observe the following precautions.
1. The SELV requirements must be satisfied for the DC power supply connected to
this product
2. This product complies with the common emission standard (EN61131-2,
EN61000-6-4) with regard to EMI. For the radiated emission requirement (10-m
regulations), in particular, please note that the actual emission varies depending on
the configuration of the control panel to be used, the connected devices, and wiring
methods.
Therefore, the customer must confirm the EC Directive conformance of the overall
machinery or equipment by themselves, even if this EC conforming product is used.
This is a class A product. In residential areas it may cause radio interference, in which
case the user may be required to take adequate measures to reduce interference.
Conformance to KC Standards
Observe the following precaution if you use GX-series Unit in Korea.
A
A
,
.
3
4
OMRON Corporation
(Manufacturer)
Shiokoji Horikawa, Shimogyo-ku, Kyoto, 600-8530 Japan
Tel: (81)75-344-7109 Fax: (81)75-344-7149
Regional Headquarters
OMRON EUROPE B.V. (Importer in EU)
Wegalaan 67-69,2132 JD Hoofddorp, The Netherlands
Tel: (31)2356-81-300 Fax: (31)2356-81-388
OMRON ASIA PACIFIC PTE. LTD.
No. 438A Alexandra Road # 05-05/08 (Lobby 2), Alexandra Technopark,
Singapore 119967
Tel: (65) 6835-3011 Fax: (65) 6835-2711
OMRON ELECTRONICS LLC
2895 Greenspoint Parkway, Suite 200 Hoffman Estates, IL 60169 U.S.A.
Tel: (1) 847-843-7900 Fax: (1) 847-843-7787
OMRON (CHINA) CO., LTD.
Room 2211, Bank of China Tower, 200 Yin Cheng Zhong Road,
Pu Dong New Area, Shanghai, 200120, China
Tel: (86) 21-5037-2222 Fax: (86) 21-5037-2200
Note: Specifications subject to change without notice.
