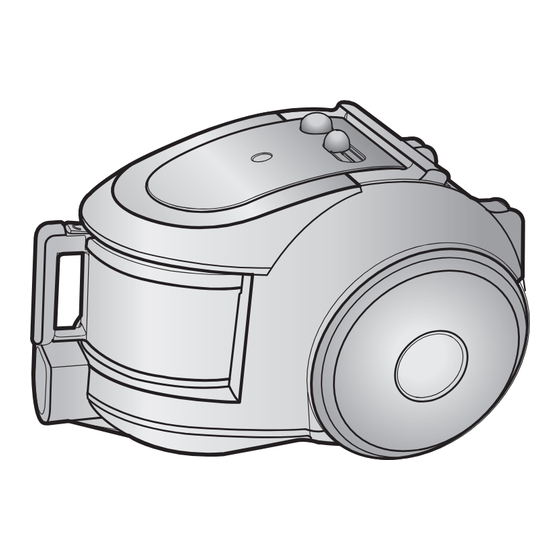

VACUUM CLEANER ❈ Before operating this unit, please read the instructions carefully. ❈ Indoor use only. Register your product at www.samsung.com/global/register Operating Instructions...
Use the vacuum cleaner only for its intended use as described in these instructions. 4. Do not use the vacuum cleaner without a dust bin. Empty the dust bin before it is full in order to maintain the best efficiency.
ASSEMBLING THE CLEANER OPTION Features may vary according to model. CAUTION Please do not press the button of dust bin handle when carrying machine. For storage, park the floor nozzle.
OPERATING THE CLEANER 2-1 ON/OFF SWITCH 1) BODY CONTROL TYPE 2-2 POWER CORD 2-3 POWER-CONTROL 1) SILDE CONTROL TYPE ONLY (Optional) • SLIDE TO THE STOP POSITION Vacuum-cleaner switches off (stand by mode) • SLIDE FORWARD TO MAX Suction capacity increases smoothly up to maximum. 2) BODY-CONTROL TYPE / ON/OFF TYPE - HOSE To reduce suction for cleaning draperies,...
2-4 HOW TO USE AND MAINTAIN THE ACCESSORIES Features may vary according to model. PIPE Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth. ACCESSORY OPTION Carpet Cleaning...
Page 6
OPTION - Detach transparent drum cover for easy cleaning. Clogs on turbine keep brush from turning, thus need to be unclogged as follows. OPTION Remove waste matter com- Brush for blanket pletely when inlet is blocked. For picking up pet hair and fibre on upholstery and bed Warning : Use for bedclothes only.
EMPTYING THE DUST BIN Option Once dust reaches the dust full mark, or once the dust full light is on, empty the dust bin. Throw away dust into the bin. - Empty into a plastic bag (recommended for asthma/allergy sufferers) NOTE You may rinse the dust bin with cold water Take the dust bin out by...
CLEANING THE DUST PACK 4-1. WHEN TO CLEAN THE DUST PACK - If suction is noticeably reduced during cleaning, please check the dust pack as indicated below. Suction is significantly weakened during cleaning. Shaking sound of inlet stuck to the floor (soft mats, blankets, etc.) is heard. HANDLE CONTROL Turn the vacuum power to 'MAX' If the filter check indicator turns red...
Page 9
4-2 CLEANING THE DUST PACK Remove the dust bin and dust pack as shown. Wash the sponge and the filter of the dust pack with water. Before reassembly, align the dust pack cover and dust pack correctly. NOTE : Make sure the filter is completely dry before putting it back into the vacuum cleaner.
Shake and tap the dust from it and put back in machine. Put the HEPA filter into the main body until you hear a ‘click’ sound. NOTE : Replacement filters are available at your local Samsung dis- tributor.
Page 11
- IF YOU HAVE A PROBLEM PROBLEM Motor does not start. Suction force is gradually decreasing. Cord does not rewind fully. Vacuum cleaner does not pick up dirt. Low or decreasing suction CAUSE No power supply. Thermal cut-out. Nozzle, suction hose or tube is blocked.
Page 12
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Customer Care Center AUSTRALIA HONG KONG MALAYSIA SINGAPORE 1800-SAMSUNG (7267864) ☎ 1300 362 603 3698-4698 1800-88-9999 Web Site www.samsung.com/au www.samsung.com/hk www.samsung.com/my www.samsung.com/sg...
