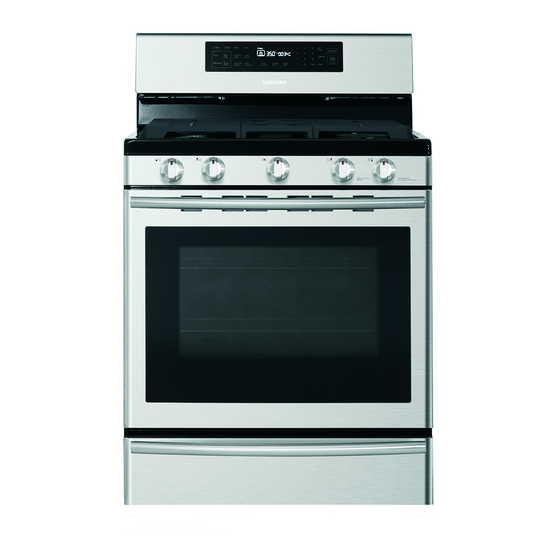

Samsung NX58H5650WS Manual

IMPORTANT SAFETY INSTRUCTIONS
WARNING
Dual-Purpose
Orifice
The following information is intended for use by
persons possessing adequate electrical, electronics,
and mechanical backgrounds and experience. Lack
of proper background and experience during any
repair of a major appliance could result in death,
personal injury, and/or property damage. The
manufacturer or seller cannot be responsible for the
E. Reinstall the spud in the pressure regulator so the large,
interpretation of this information, nor can it assume
open LP gas end is exposed. Tighten the spud until it
any liability in connection with its use.
is finger-tight. Do not overtighten. Replace the plastic
• Disconnect the electrical power to the appliance
cap over the exposed spud threads.
before servicing.
F. Make sure the gas shut-off lever on the side of the
• Shut off the gas supply to the appliance before
pressure regulator is in the open position.
servicing.
G. Replace the warming drawer or the storage drawer.
• Reconnecting all grounding devices before
2. Converting the surface burners
reconnecting the electrical power and opening the
gas supply to the appliance.
The range comes with low-altitude LP conversion kits.
• All electrical components in this appliance are
The kit contains 7 burner orifices. Five of these 7 orifices
grounded. All grounding wires, screws, straps,
are sized and color-coded for surface burner use. The
nuts, and/or washers must be replaced to their
remaining 2 orifices are for the bake and broil oven burners.
original position and properly fastened.
Use the following charts to properly size and replace the
orifices:
• LP conversion must be performed by a qualified
installer or gas supplier in accordance with the
BURNER ORIFICE SIZES AND OUTPUT RATINGS
manufacturer's instructions and all codes and
(LP Gas [Propane] 10 in WCP)
requirements of the authority having jurisdiction.
Burner location
Failure to follow ALL instructions could result
RF 1
in serious injury or property damage. The
RF
2
qualified agency performing this work assumes
LF 1
responsibility for the conversion. LF
2
RR
• Know the location of the gas shut-off valve and
LR
how to shut it off if necessary.
CTR
• Do not operate the cooktop surface burners or
BAKE
oven burners of this range when using LP gas BROIL
before converting the pressure regulator and
¹Model NX58H5650WS
burner orifices for LP gas use. Failure to do so
could cause high flames and toxic fumes which 115
can result in serious injury.
• Do not mix up or substitute LP gas burner
orifices during the conversion process. Improper
orifice placement will affect burner and cooking
BURNER ORIFICE SIZES AND OUTPUT RATINGS
performance and could result in personal injury
(Natural Gas 5 in WCP)
and/or product damage.
Burner location
RF 1
RF 2
LP GAS (PROPANE) CONVERSION
LF
RR
LR
1. Converting the pressure regulator
CTR
BAKE
The regulator is located in the lower, left-hand rear corner
BROIL
of the bottom drawer opening.
¹Model NX58H5650WS
A. Remove the warming drawer or the storage drawer.
B. Locate the pressure regulator in the rear of the drawer 180
opening. The pressure regulator can be seen and
accessed through the square hole in the rear wall as
viewed from the front.
C. Using your fingers, turn the red plastic cap and the
dual-purpose orifice spud counterclockwise to remove
them from the pressure regulator.
D. Completely remove the cap from the spud and the
threads and reinstall it on the opposite side of the spud.
Mini-Manual_NX58H56_DG68-00528A_EN+MES+CFR.indb 1
A. Remove the surface burner grates.
Shut-Off
B. Lift off the surface burner caps and the surface burner
Lever
heads from the surface burner manifold cups.
C. Using a 9/32˝ or 7 mm nut driver, remove the burner
orifice from the bottom of each manifold cup.
NOTE: K eep these orifices and note their positions for
Flip Orifice future conversion back to natural gas.
to change
Pressure
application
Regulator
size.
White
Plastic Cap
White
Red
NX58H5650WS
White
White
Blue
NX58H5600SS
BTU Rate Orifice size [mm]
D. Identify the proper orifice by orifice size and color
14,500 1.12
code for each of the surface burners.
12,500 1.06
11,500 1.04
E. Install the proper orifices in each of the burner manifold
10,000 0.98
cups as shown above. Tighten with a 9/32˝ or 7 mm nut
4,000 0.62
driver. Do not overtighten.
7,500 0.83
NOTE: A ny other placement of orifices could result in
7,500 0.83
dangerous operating conditions and/or poor
15,000 1.15
11,500 1.02 cooking results.
²Model NX58H5600SS F. Replace the surface burner heads and caps in the
same location from which they were removed. The
Orifice markings:
burner heads should be flat on top of the manifold cups
115 – Denotes 1.15 mm orifice size and the caps should be flat on top of the burner heads
to ensure proper, safe operation.
opening.
3. Converting the oven burners
WARNING
BTU Rate Orifice size [mm]
18,000 1.92
The following adjustments must be made before
17,000 1.92
turning on the gas to the oven burners. Failure to
15,000 1.78
do so could result in death and/or serious personal
5,000 1.01
injury due to high flames and toxic fumes.
9,500 1.40
9,500 1.38
18,000 1.90 The oven has a bake (lower) and a broil (upper) oven
13,500 1.64 burner. Both burners require the orifices to be changed.
See the charts in column 2 for the proper orifice usage.
²Model NX58H5600SS
To replace the bake (lower) burner orifice:
Orifice Markings:
A. Remove the two screws from the back of the cavity
180 – Denotes 1.80 mm orifice size
floor. Lift back to clear the front edge and lift out the
opening.
cavity floor.
B. Remove two screws from the front of the bracket bake-
spreader.
C. Lift front the bracket bake spreader and lift out the
bracket-bake spreader.
D. Lift up the burner bake from the holder-bake burner on
the bottom of the drawer.
E. Using a 9/32˝ or 7mm nut driver and an adjustable
wrench, hold the gas fitting with the wrench and
remove the bake oven burner orifice from the center of
the lower gas fitting.
F. Install a properly sized burner orifice for the lower oven
burner using LP gas.
To replace the broil (upper) burner orifice:
Locking Screw
G. Remove 1 screw of bracket HSI-wire
H. Remove 4 screw of bracket-broil spreader to top of
oven. F. Loosen the locking screw and adjust the oven burner
air shutter. Clockwise rotation will open the air shutter
Yellow
I. Support the burner-broil with one hand, remove 2 screw
and increase airflow. Counterclockwise rotation will
supporting the burner-broil to the front and the rear of
close the air shutter and decrease airflow.
the oven.
NOTES:
J. To replace the nozzle broil-burner, remove the gas
• If the flames are yellow, the air shutter on the burner
nozzle with a 9/32˝ nut driver.
Orange K. Install a properly sized burner orifice for the upper oven
•
burner, using LP gas.
L. Position end of upper oven burner over the burner
•
orifice and secure it in place with the front screw.
4. Adjusting the air shutter settings on the
Yellow G. After flames are adjusted, tighten the locking screw.
oven burners
H. Program the oven to BROIL and press START. Repeat
Steps E~G.
NOTE: T o ensure proper flame characteristics, install and
None
close the oven door before checking the oven burner I. Turn off the oven, install the oven bottom, and replace
flames. the oven racks.
A. Install and close the oven door.
5. Adjusting low flame settings on surface
B. Open the gas shut-off valve to the range.
burners
C. Plug in the power cord or connect the power supply to
All surface burner flames should be checked and adjusted
the range.
at their lowest setting.
D. Program the oven to BAKE and press START.
NOTE: L ow setting adjustments should always be made
E. Visually check the flame characteristics through the
oven window.
• The inner cone of the flames should be A. Turn on 2 or more surface burners and set them HI.
approximately 1/2˝ to 3/4˝ long.
B. Quickly turn one of the control knobs counterclockwise
• The visual appearance of the flame will denote the to the lowest setting. The flame should stay lit. If the
flame flutters or goes out, adjust the bypass valve in
flame combustion quality.
the base of the valve stem for that control knob.
Soft blue flames are
C. Pull the control knob for that burner straight off.
normal for natural gas
operation.
Yellow tips on outer
cones are normal for
LP gas operation.
Yellow flames are
Valve Stem
abnormal for any gas
operation. Further
adjustment required.
D. Insert a small flat-blade screwdriver into the valve stem.
Orange flames occur
While holding the valve stem in place, turn the bypass
from foreign particles
valve adjusting screw counterclockwise to increase the
in the gas line. The
flame size.
particles will burn off
and the orange flames E. Replace the control knob and repeat Steps A and B.
will disappear.
F. Repeat Steps A~E to check and adjust the remaining
surface burners.
WARNING
Additional low flame check
Quickly open the oven door while a surface burner is set
Use caution when measuring the flames and
on LO. If the flame is extinguished, increase the low flame
adjusting the air shutter. The burner flames could
setting and repeat the test until the flame is stable.
burn you or ignite your clothes causing personal
injury and/or death.
WIRING DIAGRAMS
Model NX58H5650WS
POWER MUST BE DISCONNECTED BEFORE SERVICING THIS APPLIANCE.
Locking Screw
needs to be opened further.
If the flames flutter or blow away, the air shutter on
the burner needs to be closed further.
We highly recommend that the air shutter be fully
opened in case of using LP gas.
with 2 or more burners operating at the same time.
Small Screwdriver
WARNING
NX58H5650WS
