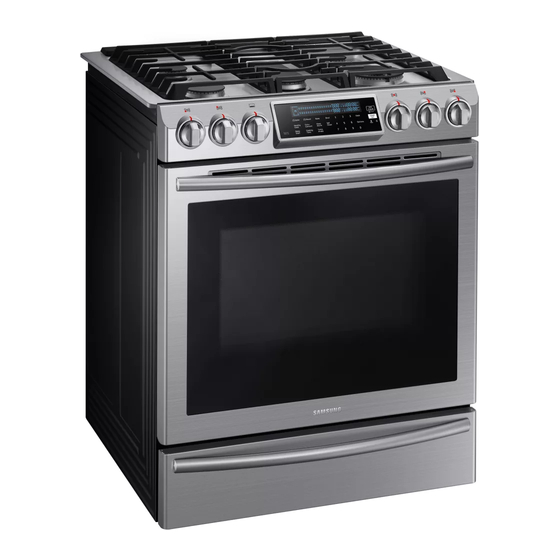

Samsung NX58H9500W Series Installation Manual
Hide thumbs
Also See for NX58H9500W Series:
- Installation manual (120 pages) ,
- User manual (60 pages) ,
- User manual (216 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Samsung NX58H9500W Series
Summary of Contents for Samsung NX58H9500W Series
- Page 1 Slide-In Gas Range Installation manual NX58H9500W*/NX58H9950W*/NX58K9500W*...
- Page 2 ANTI-TIP DEVICE WARNING If the information in this manual is not followed exactly, a fire WARNING or explosion may result causing property damage, personal injury or death. ALL RANGES CAN TIP, RESULTING IN PERSONAL • DO NOT store or use gasoline or other flammable vapors INJURY.
- Page 3 • To prevent accidental tipping of the range, attach an approved anti-tip device to the floor. (See Installing the Anti-Tip Device in the Installation Instructions.) Check for proper installation by carefully tipping the range forward. The anti-tip device should engage and prevent the range from tipping over.
-
Page 4: Table Of Contents
Contents Before you begin Gas range components About this manual Overview Gas range specifications Important safety information Installation requirements Read all instructions before using this appliance Symbols used in this manual Location requirements California Proposition 65 Warning To avoid breakage Commonwealth of Massachusetts Gas requirements General safety... -
Page 5: Before You Begin
Before you begin Important safety information About this manual Read all instructions before using this appliance Read these instructions completely and carefully. • All electrical and gas equipment with moving parts can be dangerous. Please read the important safety instructions for this appliance in this manual. The Important note to the installer instructions must be followed to minimize the risk of injury, death, or property •... -
Page 6: Commonwealth Of Massachusetts
Important safety information Commonwealth of Massachusetts • Do not use the range as a space heater. This range is to be used for cooking purposes only. • This product must be installed by a licensed plumber or gas fitter qualified •... -
Page 7: Gas Safety
Important safety information • If a grease fire should occur in the oven, turn off the oven by pressing the Electrical and grounding safety OFF/CLEAR button. Keep the oven door closed until the fire goes out. WARNING If necessary, use a multipurpose dry chemical or foam-type fire extinguisher. To reduce the risk of fire, electric shock, personal injuries, and/or death, obey the •... -
Page 8: Installation Safety
Important safety information • The range is supplied with a 3-pronged grounded plug. This cord must be • Due to the size and weight of the range, have two or more people move the plugged into a mating, grounded 3-prong outlet that meets all local codes and range. -
Page 9: Location Safety
Important safety information Location safety Cooktop safety WARNING WARNING To reduce the risk of fire, electric shock, personal injuries, and/or death, obey the To reduce the risk of fire, electric shock, personal injuries, and/or death, obey the following precautions. following precautions. •... -
Page 10: Oven Safety
Important safety information • Select cookware that is designed for top-range cooking. Use cookware that is Oven safety large enough to cover the burner grates. Adjust the burner flames so that the flames do not extend beyond the bottom of the cookware. WARNING •... -
Page 11: Warming Drawer/Lower Drawer Safety
Important safety information Warming drawer/lower drawer safety Self-cleaning oven safety WARNING WARNING To reduce the risk of fire, electric shock, personal injuries, and/or death, obey the To reduce the risk of fire, electric shock, personal injuries, and/or death, obey the following precautions. -
Page 12: Gas Range Components
Gas range components Overview Cooktop Burner Placement MODEL NX58H9950W*/NX58H9500W*/NX58K9500W* Heavy-Duty continous cast Grates Control panel Cooktop Burners (under grates) Warming drawer Knob (1) Burner Locations and Output Ratings Surface Burner Knobs (5) Location Output Rating (Natural Gas) Oven Racks (3) Left-Front (LF) 15,000 BTU Left-Rear (LR) -
Page 13: Gas Range Specifications
Gas range components Gas range specifications MODEL NX58H9950W* DESCRIPTION Gas Slide-in Range OVERALL DIMENSIONS ⁄ ” (W) x 36 1⁄4” (H) x 28 11⁄16” (D) NET WEIGHT 231 lb (104.5 Kg) ELECTRICAL Refer to the rating label. GAS, NG (NATURAL GAS) 5–13 in WC GAS, LP (LIQUID PROPANE) 10–13 in WC... - Page 14 Gas range components (921.2 mm) (761.0 mm) 14 English...
-
Page 15: Installation Requirements
Installation requirements Location requirements Side 13” Clearance (33 cm) 30” Clearances and dimensions (76.2 cm) Above Overhead Cabinet Cooking 30” NOTE Depth Surface to For OTR over Gas Stove, please follow local GAS CODE. 4” 30” Wall 6” 18” (10.2 cm) (76.2 cm) (15.2 cm) (45.7 cm) - Page 16 Installation requirements Minimum dimensions Installation guide WARNING SLIDE-IN CUTOUT FREESTANDING CUTOUT If overhead cabinets are provided, a range hood should also be provided that Hatched Faces projects horizontally a minimum of 5” (12.7 cm) beyond the front of the cabinets. 1/2”...
- Page 17 Installation requirements Recommended locations for gas piping and electrical outlets CAUTION (For models NX58H9950W*/NX58H9500W*/NX58K9500W*) You must use the rear filler kit to install the range in a freestanding cutout cabinet. For more information, see Optional rear filler kit as shown below. Optional rear filler kit WARNING Recommended...
-
Page 18: To Avoid Breakage
Installation requirements To avoid breakage CAUTION Do NOT lift or handle the unit by the cooktop frame. Fig. 1 CAUTION: Please DO NOT push the Please DO NOT grasp the knob and unit strongly when you install. These push when you install. 1. -
Page 19: Gas Requirements
Installation requirements 5. The metal flange under each side of the cooktop MUST be placed over the Gas requirements cabinet countertop for proper unit support. The cooktop should NOT rest directly on the countertop or else it could cause damage to the cooktop Provide adequate gas supply voiding the warranty. -
Page 20: Special Gas Requirements (Gas Models Sold In Massachusetts)
Installation requirements Special gas requirements (Gas models sold in Massachusetts) Electrical requirements Commonwealth of Massachusetts requirements: WARNING WARNING To reduce the risk of fire, electric shock, or personal injury: Gas leaks may occur in your system, creating a dangerous situation. All ranges •... - Page 21 Installation requirements Grounding Usage situations where appliance power cord will be disconnected frequently • All ranges must be grounded for personal safety. • All gas models have a power cord with an equipment- Do not use an adapter plug in these situations because disconnecting of the grounding conductor and a grounding plug.
-
Page 22: Tools And Materials
Tools and materials Tools and materials What's in the box Parts needed Parts supplied Gas line Flexible metal Flare union Flare union 135-degree Lag bolt shut-off appliance adapter ¾” or adapter ½” elbow or ½” (OD) valve connector ½” ½” (NPT) x ½” (NPT) x ½”... -
Page 23: Installation Instructions
Installation instructions Installation instructions Installing your gas range Step 1. Unpack the range Remove all packaging materials. Failure to remove packaging materials could IMPORTANT: Please read the following instructions, as well as the Important result in damage to the appliance. Safety Instructions section at the front of this manual, completely and carefully BEFORE installing and/or operating the gas range. - Page 24 Installation instructions Never use an old connector when installing a new range. If the hard-piping Flexible connector hookup method is used, you must carefully align the pipe; the range cannot be moved Installer: Inform the consumer of the location of the gas shut-off valve. after the connection is made.
- Page 25 All new gas ranges are shipped from the factory set up to use natural gas. Any WARNING Samsung gas range can be converted to use LP gas. Refer to page 57 in the User To reduce the risk of tipping, the appliance must be secured by properly installing Manual to contact a qualified service technician.
- Page 26 Installation instructions Step 5. Plug in and place WARNING Anti-Tip BEFORE OPERATING OR TESTING, follow the grounding requirements on pages bracket 20 ~ 21 in this manual. Improper connection of the grounding plug can result in a *approximately risk of electric shock. 21/32”...
- Page 27 Installation instructions Step 6. Level the range Step 7. Assemble the surface burners 1. Make sure the range is positioned where CAUTION you want it. Do not operate the surface burners without all burner parts in place. 2. Using a wrench, level the range by turning the front leveling legs in or out 1.
- Page 28 Installation instructions Step 8. Check the ignition of surface burners and oven burners To start the bake burners: Check the operation of all cooktop and oven burners after the range has been installed and assembled, gas supply lines have been carefully checked for leaks, and electrical power cord has been plugged in.
- Page 29 Installation instructions To start the broil burners: Step 9. Final installation checklist Broiling uses an upper gas oven alone to brown food. Meat or fish must be put on You have just completed installing your range. Make sure all controls are in the off a broiling grid in a broiling pan.
-
Page 30: Adjusting The Oven Burner Air Adjustment Shutters
Installation instructions Adjusting the oven burner air adjustment shutters The shutters are located at the base of the burner manifolds near the back oven wall. All oven burners have an air adjustment shutter. The purpose of the shutter is To adjust the shutter, loosen the locking to regulate the flow of air to the flames. - Page 31 Installation instructions Memo To adjust flame low setting Identify which burner is exhibiting too high or too low of simmer rate via manifold panel graphics. 1. Rotate a knob to “LO” position and remove the knob from the valve stem while the flame is lit.
- Page 32 How-to Videos and Live Shows * Requires reader to be installed on your smartphone Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS?
