Summary of Contents for Samsung DVD-V4800
-

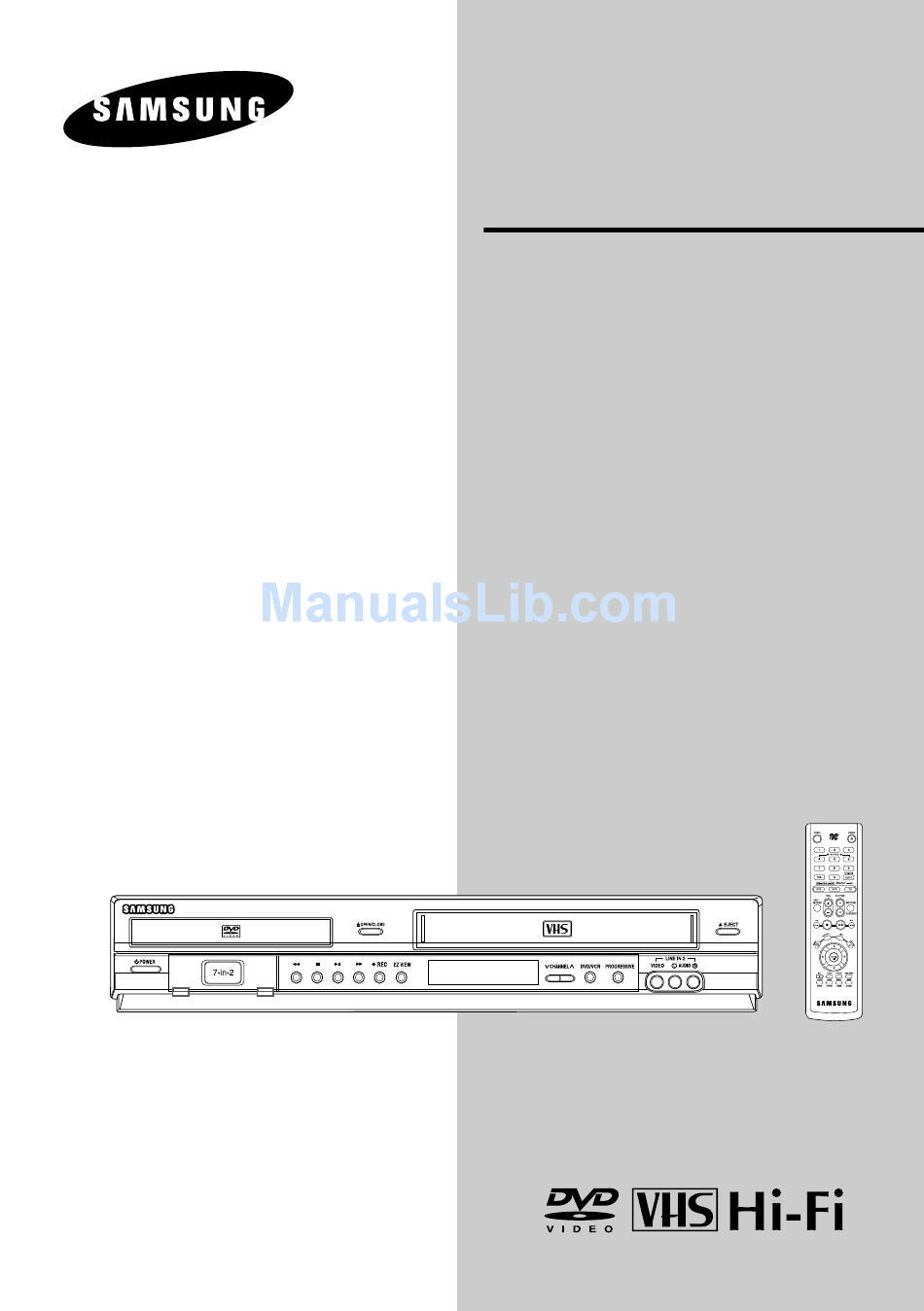

Page 1: Instruction Manual
Instruction Manual DVD-V4800 www.samsungusa.com... - Page 2 Remote Control Overview...
-
Page 3: Important Safety Instructions
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. -
Page 4: Table Of Contents
Digital Output ......18 DTS ....... 18 Dynamic Compression . -
Page 5: Feature Summary
Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is described on the rear panel of the player. -
Page 6: Unpack
AUDIO-CD Audio * It may not be to play CD-R,CD-RW and DVD-R in all cases due to the type of disc or condition of the recording. Unpack When you unpack the DVD-VCR, please check the following list of items is included in the packing case. -
Page 7: Front Panel Overview
REWIND/REV STOP PLAY/PAUSE FAST-FORWARD/FWD Rear Panel S-VIDEO OUT DIGITAL AUDIO OUT(OPTICAL) DIGITAL AUDIO OUT(COAXIAL) COMPONENT VIDEO OUT AUDIO LINE OUT TO TV (S-VIDEO OR COMPONENT) 8 9 10 11 12 RECORD EZ VIEW FRONT PANEL DISPLAY CHANNEL DVD-VCR SELECT PROGRESSIVE... -
Page 8: Front Panel Display
• Slide the cover back onto remote. Basic Connections/Auto Setup You will need to connect the DVD-VCR to a TV and run Auto Setup. The Auto Setup will automatically search for channels and then set your DVD-VCR's internal clock. -
Page 9: Using The Tv Buttons On The Remote Control
It is now programmed to operate with the remote control. If several codes are indicated for your television brand, try each one in turn until you find one that works. You can then control the television using the following buttons. Button Function... -
Page 10: S-Video/Component Video Connections (For Dvd)
S-Video/Component Video Connections (for DVD) Use the S-Video or Component Video connection method only for the DVD. The VCR can still be viewed through the RF or line inputs. To activate your alternative (S-Video or Component) video selection, follow the “Alt Video Out” instructions on page 21. -
Page 11: Connecting Other Video Equipment
Receiver with a Dolby Digital Decoder 1 Digital Audio Out Connect a digital coaxial cable or an optical cable from the Digital Audio Out jack on the rear panel of the DVD-VCR to the corresponding Digital Audio Input jack on your A/V Receiver: •... -
Page 12: Deck Control Buttons
• Most discs will start to playback as soon as the tray closes. • If a DVD has a MENU, the menu may pop up on TV screen. 5 Additional DVD Options •... -
Page 13: Basic Tv Tuner Operations
1 TV/VCR Press this button to switch between your TV’s tuner and the VCR’s internal tuner. • Use this button when you want to watch TV while in recording mode. 2 Channel UP/DOWN Use these buttons to move to the previous or the next channel. -
Page 14: Manual Clock Set
UP/DOWN buttons to set each option: • Hour – Set the hour • Month – Set the month. • Minute – Set the minute. • Day – Set the day. • Year – Set the year Manual Clock 2004 THU... -
Page 15: Rf Output Channel
6 Change “TV Channel” A message will appear on your TV. When the message disappears, change your TV to channel 3 or 4 to match the RF output channel of the player. Auto Channel Memory Auto Channel Memory will automatically seek and store all active channels in your area. -
Page 16: Channel Add/Delete
RETURN ❷ Front Panel Dimmer You can set the Front Panel Display to be bright all the time, dim all the time, dim during power off. 1 Open “ MENU” With the DVD in Stop or Play mode, press the MENU button. -
Page 17: Auto Power Off
RIGHT button to select from following options: • Off – Auto power off is disabled. • 1Hr – DVD-VCR will auto shut off 1 hour after the last button is pressed. • 2Hr – DVD-VCR will auto shut off 2 hours after the last button is pressed. -
Page 18: Audio Language
DVD, your Audio Language will automatically be set to the language you choose. 1 Open “MENU” Press the MENU button while the DVD is in Stop mode. 2 Select “DVD” Use the UP/DOWN buttons to highlight “DVD” then press the ENTER button. -
Page 19: Digital Output
4 Set “DTS” Highlight “DTS” then press the RIGHT button to select one of the following options: • Off – To use your DVD with an A/V receiver • On – To use your DVD with an A/V receiver PCM Down Sampling... -
Page 20: Dynamic Compression
Highlight “PCM Down Sampling”, then press the RIGHT button to select one of the following options: • On – When a 96K audio disc is played, 96K will be downsampled to 48K and outputted. • Off – When a 96K disc is played, 96K will be outputted. -
Page 21: Tv Aspect Ratio
TV Aspect Ratio Set the aspect ratio (length x width) of your TV screen so the DVD player will display movies at the appropriate size for your television. Choose from standard, letterbox, or widescreen format. 1 Open “MENU” Press the MENU button while the DVD is in Stop mode. -
Page 22: Alt Video Out
DVDs based on their content. The system uses an eight level rating system. • If you try to play a DVD that exceeds the selected rating, an error message will appear. • Not all discs are rated. -
Page 23: Special Playback Features
Press Enter to confirm your selection. • If you forgot your password, press power on from a cold start with no disc in the unit. Press the REW and F.F buttons simultaneously on the front panel for 5 seconds. The “Reset Ok” message will appear. -
Page 24: Disc Menu Navigation
Special Playback Features 5 Stop/Resume • Press the STOP button once to stop playback. To resume the DVD/CD from the point where the disc stopped, press the ❿ll (PLAY/PAUSE) button. • Press the (STOP) button twice to completely stop playback. The next time you press (PLAY/PAUSE), the disc will start over from the beginning. -
Page 25: Title/Chapter/Time Selection
EZ View • Screen Fit The top and bottom of the screen are cut off and the full screen appears. The picture will look vertically stretched. • Zoom Fit The top, bottom, left and right of the screen are cut off and the central portion of the screen is enlarged. -
Page 26: Angle View
To access the desired title when there is more than Title one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified. Most DVD discs are recorded in chapters so that Chapter you can quickly find a specific passage. -
Page 27: A To B Repeat
Press the REPEAT button to open the Repeat Menu, use the LEFT/RIGHT buttons to highlight “Off,” then press the ENTER button. When in VCD 2.0 mode (MENU ON), this function dose not work. Repeat Chapter/Title You can repeat a single chapter or a complete title. -
Page 28: Audio
ENG DOLBY DIGITAL 5.1CH VCD/CD Stereo Bookmarks Up to three Bookmarks can be inserted for a given DVD or VCD allowing you to quickly jump to your favorite scene. 1 Open Bookmark Menu During playback, press the MARK button on the remote control. -
Page 29: Function (Dvd)
Bookmark Repeat EZ View Special VCR Playback Features While a videotape is playing, you can enjoy a variety of special playback features, including Still, Frame Advance, Skip, Repeat, and more. Press the Play button again to resume normal playback. 1 Pause In Play mode, press ❿ll... -
Page 30: Tracking
• Off - Auto play is disabled. 5 Select “Auto Repeat” Move the selection bar to “ Auto Repeat”. It sets the VCR to play a tape repeatedly [unless a tape control is activated (stop, fast forward or rewind)]. -
Page 31: Variable Search System
VCRs. If the VCR has trouble finding a mark, it is probably because the cassette was recorded on a VCR without VISS. If you want to index two programs in a row, set your VCR to stop, then start recording each program. Forward... -
Page 32: Special Recording Features
Special Recording Features While a recording is in progress, you can watch a different channel, a DVD, or add recording time in 30- minute increments. 1 To watch a different channel Make sure that you connect the DVD-VCR to the TV using an RF cable. -
Page 33: Record Speed
Insert a blank videotape into the VCR deck. Be sure to leave the Record Safety Tab intact. With the Timer Recording function, you can program up to 7 events at a time to record up to a month in advance. To Begin Setting the Timer Recording, •... -
Page 34: Function (Vcr)
Note • Memory Cards over 2GB use FAT 32, which may be not compatible with this unit. • If it is not fully inserted, the “Memory Card” will not work. • If you remove the “Memory Card” during Memory Card operation, the recorded data may become corrupted. -
Page 35: Clips Menu For Mp3/Wma/Jpeg
S O N G F I L E 3 ENG-34 C u r r e n t F o l d e r S u b - F o l d e r s P e e r F o l d e r s... -
Page 36: Mp3/Wma Play
• It is impossible to write MP3 or JPEG files to a Memory Card in this unit as it is read only. • Only MP3/WMA Format files with the “ .mp3 and .wma”... -
Page 37: Jpeg Playback
General name format of: Title.mp3 or Title.wma. When composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+). • Use a decompression transfer rate of at least 128 Kbps when recording MP3 files. -
Page 38: Program Play & Random Play
JPEG files in the clips menu. • QSS Picture CD : The unit cannot play QSS Picture • If a number of files in 1 Disc are over 3000, only 3000 JPEG file can be played. • If a number of folders in 1 Disc are over 300, only JPEG files in 300 folders can be played. -
Page 39: Technical Specifications
POWER REQUIREMENT 120V AC, 60Hz, 25watts ENVIRONMENT SYSTEM WEIGHT 2 Stereo audio inputs, RCA Connector, -8dbm, 47K , front and rear 2 Composite video inputs, RCA Connector, 75 , 1Vp-p Antenna or CATV Input, F-Connector, 75 1 Stereo audio outputs, RCA Connector, -8dbm, 1.5K... - Page 40 (*90 Days Parts and Labor for Commercial Use) This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures.
- Page 41 SAMSUNG ELECTRONICS AMERICA, INC. HEADQUARTERS 105 Challenger Road, Ridgefield Park, N.J. 07660-0511 TEL: 1-800-SAMSUNG SERVICE DIVISION 400 Valley Road, Suite 201, Mount Arlington, NJ 07856 1-800-SAMSUNG (1-800-726-7864) www.SAMSUNGUSA.com ELECTRONICS AK68-00353A...
