Samsung DVD-V4300 Service Manual

Hide thumbs Also See for DVD-V4300:
Table of Contents

Advertisement

Quick Links

ELECTRONICS
This Service Manual is a property of Samsung Electronics Co .,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© Samsung Electronics Co., Ltd. FEB. 2003
Printed in Korea
AK82-00516A

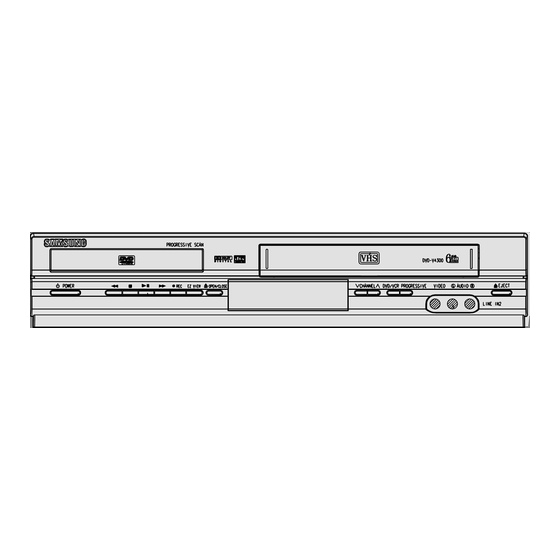

DVD-VCR COMBINATION
Chassis : Kaiser
DVD-V4300
DVD-V4600
SERVICE
If you want to know additional information which is not included on this Service Manual, please refer to the
DVD-V4600 Training Manual (AK82-00460A).
DVD-VCR COMBINATION
DVD-V4300
DVD-V4600
Manual
CONTENTS
3. Exploded Views and Parts List

Advertisement

Table of Contents
loading

Related Manuals for Samsung DVD-V4300

Summary of Contents for Samsung DVD-V4300

  • Page 1: Table Of Contents

    5. Block Diagram 6. Schematic Diagrams DVD-V4300 DVD-V4600 This Service Manual is a property of Samsung Electronics Co .,Ltd. © Samsung Electronics Co., Ltd. FEB. 2003 Any unauthorized use of Manual can be punished under applicable Printed in Korea International and/or domestic law.
  • Page 2 IMPORTANT SERVICE GUIDE ◆ MODE SWITCH (PROGRAM SWITCH) ASSEMBLY POINT 1) When installing the ass’y deck on the Main PCB, be sure to align the assembly point of mode switch. ASSEMBLY POINT VCR MAIN PCB Fig. 1 ◆ HOW TO EJECT THE CASSETTE TAPE (If the tape is stuck in the unit) 1) Turn the Gear Worm Œ...

  • Page 3: Precautions

    Metal Part cal return path to the chassis. Any current measured must not exceed 0.5mA. Reverse the instrument power cord plug in the out- ohmmeter let and repeat the test. See Fig. 1-1. Fig. 1-2 Insulation Resistance Test Samsung Electronics...
  • Page 4 (5) antenna wiring. Always inspect in all areas tinuously and new instructions are issued whenev- for pinched, out-of-place, or frayed wiring, Do not er appropriate. change spacing between a component and the printed-circuit board. Check the AC power cord for damage. Samsung Electronics...

  • Page 5: Servicing Precautions

    Components identi- fied by shading, by( ) or by ( ) in the circuit dia- gram are important for safety or for the characteris- tics of the unit. Always replace them with the exact replacement components. Samsung Electronics...
  • Page 6 (6) Do not remove a replacement ESD device from its protective package until immediately before your are ready to install it.(Most replacement ESD devices are packaged with leads electrically short- ed together by conductive foam, aluminum foil or comparable conductive materials). Samsung Electronics...
  • Page 7 ◆ Be sure to put on a wrist strap grounded to the sheet. ◆ Be sure to lay a conductive sheet made of copper etc. Which is grounded to the table. Samsung Electronics...
  • Page 8 3) Make solder land 2 points short on Pick-up. (See Fig. 1-4) 4) Disassemble the Pick-up. Note : If the assembly and disassembly are not done in correct sequence, the Pick-up may be damaged. SOLDER LAND 2 POINTS SHORT PICK-UP ASS'Y Fig. 1-4 Samsung Electronics...

  • Page 9: Alignment And Adjustment

    - If the corresponding adjustment button is pressed, the adjustment is performed automatically. - When the adjustment is completed, be sure to turn the power off. 2-1-1(a) Location of adjustment button of remote control X-Point (Tracking Center) Adjustment ; NVRAM Option Setting ; Head Switching Adjustment ; Fig. 2-1 Samsung Electronics...
  • Page 10 Alignment and Adjustments 2-1-1(b) TEST location for adjustment mode setting Short-Circuit for few seconds and release. (Just one time) Fig. 2-2 VCR Main PCB (Top View) Samsung Electronics...
  • Page 11 ENTER MOVE : COMPLETE Fig. 2-3 Fig. 2-4 <Table 2-1 NVRAM Option Table> MODEL OPTION NUMBERS DVD-V4300 2, 7, 8, 9, 14, 16, 18, 22, 25, 28 DVD-V4600 2, 7, 8, 9, 14, 16, 18, 22, 25, 28 Samsung Electronics...

  • Page 12: Dvd Adjustment

    Alignment and Adjustments 2-2 DVD Adjustment 2-2-1 Location of Test Point Fig. 2-5 Location of test Point (Main PCB - Top Side) Samsung Electronics...
  • Page 13 <Table 2-2> Test Disc Adjustment Spec. Test Point Adjustment Location TDV-533 “ENV” Ass’y Deck - Top Side Chapter 14 Flat Waveform (DVD Main PCB - Top Side) (See Fig. 2-6) (See Fig. 2-5) Fig. 2-6 Ass’y Deck (Top Side) Samsung Electronics...
  • Page 14 If you cannot obtain a Flat waveform, then the unit is defective. Note : The Deck must be in a horizontal position. Use both “A” and “B” screws to adjust. Typical Waveform before Adjustment Waveform after Correct Adjustment Fig. 2-7 Envelope Waveform Samsung Electronics...

  • Page 15: Vcr Mechanical Adjustment

    Fig. 2-8 Location of Tape Transport Adjustment PINCH ROLLER FE HEAD CYLINDER ASS'Y GUIDE ROLLER "S" GUIDE ROLLER "T" POST TENSION #8 GUIDE POST #9 GUIDE POST #3 GUIDE POST MAIN BASE ACE HEAD CAPSTAN SHAFT Fig. 2-9 Tape Travel Diagram Samsung Electronics...
  • Page 16 HEIGHT ADJUST X-POSITION ADJUSTING SLIT SCREW (B) SCREW (D) AZIMUTH ADJUST X-POSITION LOCKING Fig. 2-10 Location of ACE Head Adjustment Screw AUDIO HEAD VIDEO HEAD 0 ~ 0 .25 mm CONTROL HEAD Fig. 2-11 ACE Head Height Adjustment Samsung Electronics...
  • Page 17 Fig. 2-12 Tape Guide Check c. AUDIO AZIMUTH ADJUSTMENT 1) Load alignment tape (Mono scope) and playback the 7KHz signal. 2) Connect channel-1 scope probe to audio output. 3) Adjust screw (B) to achieve maximum audio level. (See Fig. 2-10) Samsung Electronics...
  • Page 18 5) Insert the (-) driver into the X-Point adjustment hole and adjust it so that envelope waveform is maximum. Test point : TP2 (Audio Output) TP3 (Envelope) TP4 (H’D S/W -Trigger) TP5 (Control Pulse) CONTROL PULSE HEAD SWITCHING ENVELOPE AUDIO OUTPUT Fig. 2-13 Location of Test point (VCR Main PCB-Top View) 2-10 Samsung Electronics...
  • Page 19 5) If the section B in Fig. 2-15 does not meet the specification, adjust the guide roller T up or down. a b c d c,b,d/a Fig. 2-14 Envelope Waveform Adjustment H'D SWITCHING PULSE ENVELOPE Fig. 2-15 Adjustment Points Samsung Electronics 2-11...
  • Page 20 ) driver to obtain a flat video RF envelope as shown in Fig. 2-16. IDEAL ENVELOPE S HEIGHT TOO HIGH S HEIGHT TOO LOW T HEIGHT TOO HIGH T HEIGHT TOO LOW GUIDE ROLLER S GUIDE ROLLER T Fig. 2-16 Guide Roller S, T Height Adjustment 2-12 Samsung Electronics...
  • Page 21 2) If excessive tape wrinkle is observed, perform the following adjustments in Playback mode : ◆ Tape wrinkle at the guide roller S, T section : Linearity adjustment. ◆ Tape wrinkle at tape guide flange : ACE head assembly coarse adjustment. Samsung Electronics 2-13...
  • Page 22 4) Transportation of accurate driving force is done by gears. (Gear Center Ass’y) Note : If the spec. does not meet the followings specifications, replace the holder clutch ass’y and then recheck. <Table 2-4> MODE TORQUE g/cm GAUGE 42 ± 11 Cassette Torquemeter 145 ± 30 Cassette Torquemeter 2-14 Samsung Electronics...
  • Page 23 3-4 DVD Mechanical Parts - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-8 Notice You can search for the updated part code through ITSELF web site. URL; http://itself.sec.samsung.co.kr Samsung Electronics...

  • Page 24: Cabinet Assembly

    Exploded View and Parts List 3-1 Cabinet Assembly Samsung Electronics...
  • Page 25 SCREW-BH;-,-,FE,FZY,BH,-,-,4*12,-,- 6003-000275 SCREW-TAPTITE;BH,+,B,M3,L10,BLK ,SWCH101 AC60-10063A SCREW-TAPTITE;-,-,L12,ZPC3,+,-,M3,-,SWRC AC39-10014A CBF POWER CORD;KKP-211,VFF0.75MM,JIS,CON Other Only AC39-00019A CBF POWER CORD;KKP-419C,H03VVH2-F,VDE/KE CHILE/PERU Only AK92-00387D ASSY PCB-MAIN VCR;DVD-V4300/XAX,LED-M AK92-00341A ASSY PCB-MAIN DVD;DVD-V4500,VENUS,SEA AK94-00006B ASSY PCB-SMPS;DVD-V4300/XAX,FREE AK94-00011A ASSY SORT-FUNCTION;DVD-V4700,04-SECCOM43 DVD-V4300 Only AK94-00010A ASSY SORT-FUNCTION;DVD-V4600,04-SECCOM43 DVD-V4600 Only LD601A AC61-00340A HOLDER-LED;X-11,POM(K300),-,-,-,NTR,-...

  • Page 26: Vcr Mechanical Parts (Top Side)

    3-2 VCR Mechanical Parts (Top Side) G001 K490 K502 K530 G555 G530 B474 G450 G510 B473 G420 G480 K546 K250 K240 K248 B411 B410 K350 K110 B440 K182 B448 K340 K330 B452 G546 K470 K140 K188 G527 G070 G520 G060 Samsung Electronics...
  • Page 27 BAND-BRAKE ASS’Y;TS-10,-,-,-,-,-,- K330 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9 K340 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9 K350 AC61-00106A SPRING ETC-BRAKE;TS-10,SUS304-WPB,-,-,-, K470 AC66-00020A SLIDER-FL DRIVE;TS-10,SECC ,T1.0,-,-,SIL K490 AC61-00120A HOLDER-FL CASS. ASS’Y;TS-10,-,-,-,-,-,- K502 AC61-60561A SPRING ETC-FL.LEVER-LR;X-9,SUS304 WPB,OD K530 AC66-00034A LEVER-FL ARM ASS’Y;TS-10,-,-,-,-,-,-,- K546 AC61-50658A GUIDE-CASS. DOOR;X-9,POM,-,-,-,NTR Samsung Electronics...

  • Page 28: Vcr Mechanical Parts (Bottom Side)

    Exploded View and Parts List 3-3 VCR Mechanical Parts (Bottom Side) G542 B462 B456 B460 B560 B500 B458 B464 B488 B484 B468 B475 K222 K200 K225 K221 B478 B570 Samsung Electronics...
  • Page 29 AC97-02195A ASSY-LEVER LOADING S;SECC+POM+SUS,X-11,F B500 AC97-02196A ASSY-LEVER LOADING T;SECC+POM+SUS,X-11,F B560 AC81-00004A MOTOR-CAPSTAN;THRUST END PLAY-0.2,MR-FG B570 AC60-10514A SCREW-CAPSTAN;-,-,M2.6,L6,PH,+,-,-,-,- G542 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9 K200 AC61-21012A HOLDER-CLUTCH ASSY;X-9,ABS,-,-,-,BLK,- K221 AC66-20581A GEAR-CENTER ASSY;X-9,POM,M=O.5,-,-,GRY,- K222 AC60-30306A FASTENER-WASHER SLIT;-,-,ID2.1,OD5.0,T0. K225 AC66-00006A LEVER-UP DOWN;TS-10,POM,-,-,-,-,NAT,- Samsung Electronics...

  • Page 30: Dvd Mechanical Parts

    Exploded View and Parts List 3-4 DVD Mechanical Parts H212 H102 H205 H900 H204 H202 H903 H903 H210 H241 H211 H207 H206 H206 H904 H904 H203 H209 H107 H105 H106 H103 H903 H108 H104 H109 Samsung Electronics...
  • Page 31 H206 AK61-00032A HOLDER-CAM SKEW;DP-9,POM,-,-,-,BLACK,- H207 AK31-00014A MOTOR SPINDLE;DP-15,3000RPM,-,-,-,- H209 AK64-00491A CHASSIS SUB;DP-15,POM,-,-,-,-,- H210 AK31-00005A MOTOR-FEED ASSY;-,DP-9,-,-,-,-,-,-,-,-,- H211 AK97-00638A ASSY-PICK UP;-,SOH-DT2,TRINO ASSY PICK U H212 AK61-00253A HOLDER-CHUCK;DP-15,POM,-,-,-,-,- H241 AK41-00156B FFC-PU;DP-15,-,FFC,24,T0.3,RIGHT H900 6003-001157 SCREW-TAPTITE;PWH,+,B,M2,L6,ZPC(YEL),SWR H903 6001-001370 SCREW-MACHINE;CH,+,M1.7,L3.0,ZPC(YEL),SW H904 6002-001086 SCREW-TAPPING;PH,+,B,M1.7,L5.0,ZPC(YEL), Samsung Electronics...
  • Page 32 Exploded View and Parts List MEMO 3-10 Samsung Electronics...

  • Page 33: Electrical Parts List

    2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5 C501 2203-001724 C-CER,CHIP;4700NF,+80-20%,16V,Y5V,TP,321 C308 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2.5 C502 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V C309 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5 C503 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5 C310 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608 C504 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608 C311 2401-000408 C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5 C505 2401-000909 C-AL;22uF,20%,16V,GP,TP,5x5,2.5 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 34 IC-VIDEO PROCESS;LA71207,QFP,80P,14X14MM C620 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608 IC501 1204-002222 IC-SIGNAL PROCESSOR;LA72670M-MPB,QFP,80P C621 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1608 IC601 AC09-00489A IC MICOM;MN101D10G-AB3,DVD-V4500,100PIN C622 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,-,1608 IC603 1103-001330 IC-EEPROM;S524A40X41,512x8Bit,DIP,8P,9.2 C623 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP IC6B1 AC14-12009W IC-RESET;PST572K,TO-92,R59-1766 2.5V Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 35 2007-001114 R-CHIP;680Kohm,5%,1/10W,TP,1608 R609 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R312 2007-000122 R-CHIP;1.2Kohm,5%,1/10W,TP,1608 R611 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP,1.8X3.2M R313 2001-000258 R-CARBON;1.8KOHM,5%,1/8W,AA,TP,1.8X3.2M R613 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R314 2007-000123 R-CHIP;1.5Kohm,5%,1/10W,TP,1608 R614 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM R315 2007-001179 R-CHIP;8.2Kohm,5%,1/10W,TP,1608 R615 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 36 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO R714 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M ZD1P06 0403-000717 DIODE-ZENER;MTZJ5.1B,4.94-5.2V,500MW,DO- R715 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M ZD401 0403-000390 DIODE-ZENER;UZP33B,31.4-34.6V,1000MW,DO- R716 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M R717 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R718 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R719 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM R720 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 37 FR16 2007-007277 R-CHIP;392ohm,1%,1/10W,TP,1608 RC30 2203-001662 C-CER,CHIP;5.6NF,10%,50V,X7R,TP,1608 FR17 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 RC31 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 FR18 2007-000127 R-CHIP;9.1Kohm,5%,1/10W,TP,1608 RC32 2203-001662 C-CER,CHIP;5.6NF,10%,50V,X7R,TP,1608 FR19 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 RC33 2203-001662 C-CER,CHIP;5.6NF,10%,50V,X7R,TP,1608 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 RC34 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,TP,1608,- Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 38 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 ZR30 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ZC35 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 ZR31 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 ZC36 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 ZR35 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 ZC37 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608 ZR36 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 ZC39 2203-000681 C-CER,CHIP;0.027NF,5%,50V,C0G,TP,1608 ZR46 3301-001419 BEAD-SMD;-,220,-,500,TP,-,0.3 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 39 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP SW738 3404-001182 SWITCH-TACT;DC12V,50MA,100GF,6.0X6.0X5.0 DVD-V4300 Only D1SS12 0402-001195 DIODE-RECTIFIER;F1T4,400V,1A,DO-204AC,TP D1SS13 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,-,TP F1SS01 3601-001122 FUSE-CARTRIDGE;250V,1.6A,FAST-ACTING,GLA IC1SF1 1203-002805 IC-PWM CONTROLLER;ICE2BS01,PDIP,8P,9.52X IC1SS1 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DIP-4,ST IC1SS2 AC14-12006D IC;KA431Z,TO-92,TAPING L1P102 3301-000297 BEAD-AXIAL;25ohm,3.6x1.2x5.7mm,,TP,,, Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 40 Electrical Parts List MEMO Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 41: Block Diagram

    A/V Decoder Video IN ZIC4 IC601 IC603 EEPROM (TC74VHCT125) (MN101D10F) VCR Main Micom Level Shifter TR DRIVE ZIC3 (Q701~Q705, Q708~Q715) (MBM29LV800BA) LED Drive IMB Flash Memory Front A/V Jack (DT701) Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 42 Block Diagram MEMO This Document can not be used without Samsung’s authorization Samsung Electronics...

  • Page 43: Schematic Diagrams

    6-10 DVD Input-Output- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 44: Block Identification Of Main Pcb

    VCR MAIN PCB <Component Side> <Conductor Side> LOGIC DVD AUDIO DATA DVD MAIN PCB DVD RF DVD MAIN DECODER SIGNAL BLOCK A/V BLOCK DVD MOTOR DRIVE BLOCK <Component Side> Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 45 Schematic Diagrams 6-1 S.M.P.S. Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 46: Power

    Schematic Diagrams 6-2 Power Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 47: Logic/Function

    Schematic Diagrams 6-3 Logic/Function Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 48: A/V

    Schematic Diagrams 6-4 A/V Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 49: Hi-Fi/Mts

    Schematic Diagrams 6-5 Hi-Fi/MTS Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 50: Tm/Input-Output

    Schematic Diagrams 6-6 TM/Input-Output Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 51: Dvd Av-Decoder

    Schematic Diagrams 6-7 DVD AV-Decoder Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 52: Dvd M_Drive/Rf

    Schematic Diagrams 6-8 DVD M_Drive/RF 6-10 Samsung Electronics This Document can not be used without Samsung’s authorization...

  • Page 53: Dvd Audio_Dac

    Schematic Diagrams 6-9 DVD Audio_Dac Samsung Electronics 6-11 This Document can not be used without Samsung’s authorization...

  • Page 54: Dvd Input-Output

    Schematic Diagrams 6-10 DVD Input-Output 6-12 Samsung Electronics This Document can not be used without Samsung’s authorization...
  • Page 55 SERVICE BULLETIN ELECTRONICS Product COMBO Bulletin No. 04-DVD-E0008 Model Refer to the below Bulletin Date : 01-Jul-04 Buyer Refer to the below ECN Date SUBJECT : MAIN PCB CHANGE INFORMATION ECN No. Background : Note : ▶ Cause - a short supply of RF IC from our supplier. ▶...
  • Page 56 APPLICABLE MODELs and BUYERs DVD-V4300/GEN DVD-V4600/XAA DVD-V4300/GEN DVD-V4600/XAA DVD-V4300/RCL DVD-V4600/XAC DVD-V4300/RCL DVD-V4600/XAC DVD-V4300/STR DVD-V4600/XAO DVD-V4300/STR DVD-V4600/XAO DVD-V4300/XAO DVD-V4600/XAP DVD-V4300/XAO DVD-V4600/XAP DVD-V4300/XAP DVD-V4600/XAX DVD-V4300/XAP DVD-V4600/XAX DVD-V4300/XAX DVD-V4600A/XAA DVD-V4300/XAX DVD-V4600A/XAA DVD-V4500/XAA DVD-V4650/RCL DVD-V4500/XAA DVD-V4650/RCL DVD-V4500/XAC DVD-V4650/XAX DVD-V4500/XAC DVD-V4650/XAX DVD-V4600/GEN DVD-V4700/XAA DVD-V4600/GEN DVD-V4700/XAA...
