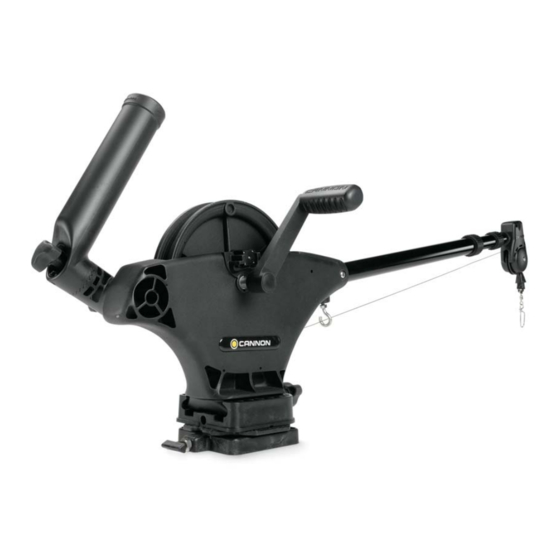

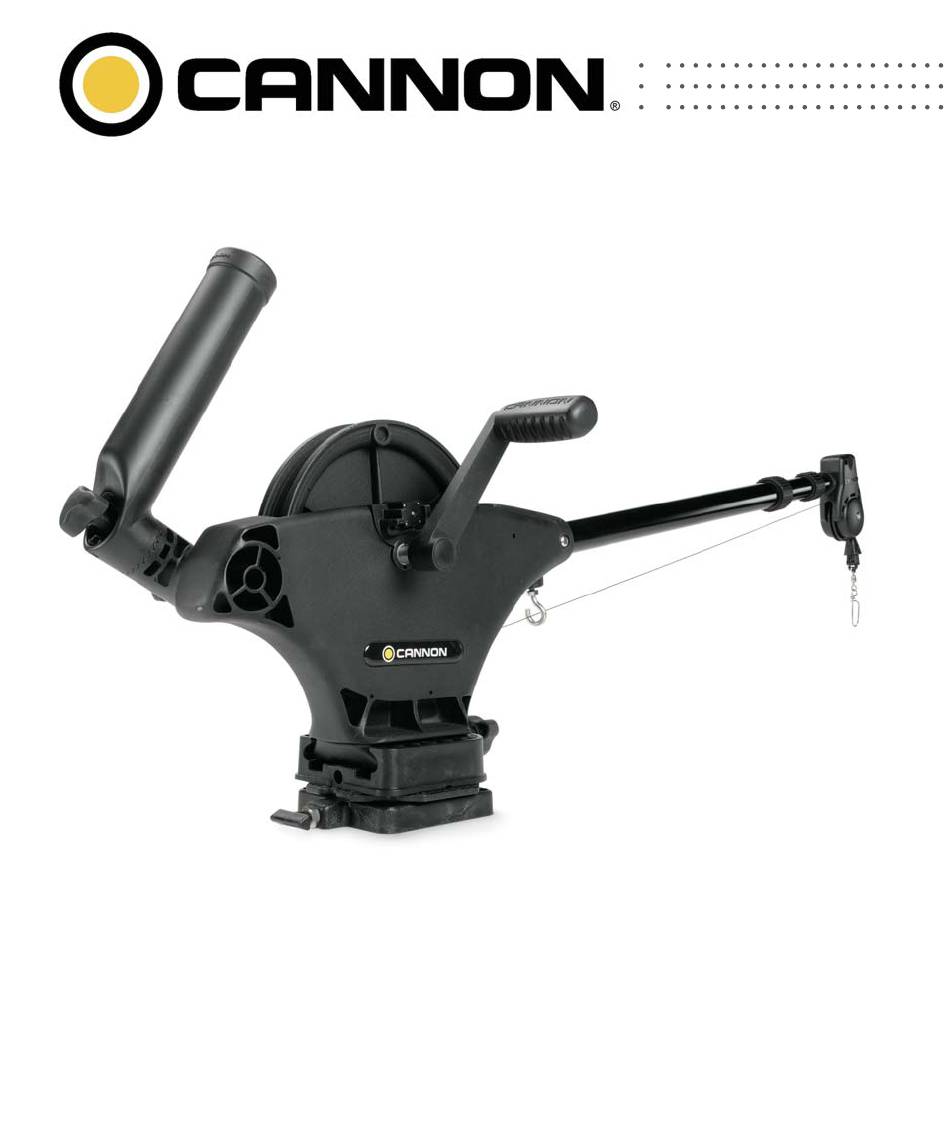

Summary of Contents for Cannon Easi-Troll ST
- Page 1 OWNER’S MANUAL FOR UNI-TROLL & EASI-TROLL MANUAL DOWNRIGGERS...
- Page 2 SAFETY AND CAUTIONS Your Cannon downrigger should only be used for its intended purpose. Improper use will void the warranty and may be a safety risk. We hope that you enjoy the use of your new downrigger and enjoy the benefi t of controlled depth fi shing for years to come by always following safe boating practices and laws for wherever you are fi...
-
Page 3: Cannon® Service Policy
After the applicable warranty period, or, if one of the above exclusions warranty periods, Johnson Outdoors Marine Electronics, Inc. will, at applies, Cannon products will be repaired for a charge of parts plus its option, either repair or replace same without charge (but no cash labor. -
Page 4: Parts Description
INTRODUCTION TO CONTROLLED DEPTH FISHING ..................................Undoubtedly there are many fi shermen familiar with the methods and use of controlled depth fi shing. During the mid 1960’s the state of Michigan introduced Pacifi c salmon into the Great Lakes in an attempt to revitalize its sport fi... - Page 5 fi shing rod and to react quickly. So,choosing a good location to mount your downrigger on your boat is very important. Due to the great variety of boats available,mounting your downrigger can be a diffi cult decision. Cannon has a complete line of mounting and fi shing accessories to aid in your fi shing experience. Before making any permanent changes to your boat consider what accessories might be used in your application.
- Page 6 7/16”. DECKS THINNER THAN 1/4” Use a Cannon deck plate (PN 2200693) to prevent defl ection and add stability to decks thinner than 1/4”. Use the deck plate as a template to mark the hole locations. If access to the underside of the deck is not available, the deck plate can be mounted using screws and wellnuts.
- Page 7 INSTALLING THE BOOM AND BALL HOOK .................... 1) Insert boom into frame (Figure 1) and line up holes in boom with holes in frame. Note: Easi-Troll units require the included boom adapter. 2) Remove 1/4-20 x 2” bolt and 1/4-20 nylon locknut from included hardware bag assembly.
- Page 8 BOOM END PULLEY ..................Telescopic Boom 1) Remove boom end assembly from hardware bag. 2) Remove #8 self tapping screw from hardware bag. 3) Insert boom end post into end of the small tube of the telescopic boom assembly. (Figure 5) 4) Align hole in boom post with hole in small end tube.
-
Page 9: Attaching The Crank Handle Assembly
ATTACHING THE CRANK HANDLE ASSEMBLY ..................................Make sure the thrust bearing is sandwiched between its two races. The thrust bearing spring should be oriented where the narrow end is toward the bearing. Slide the bearing with races and spring over the ratchet shaft. Then, carefully thread the crank handle onto the shaft and continue turning the handle clockwise until the clutch is fully tightened NOTE: Place your fi... - Page 10 ATTACHING THE ROD HOLDER(S) ..................The locking rod holder(s) incorporate a locking tooth design which can be easily adjusted every 15° with the soft grip knob. **The unique two piece design allows independent adjustment of the rod holder and the rod holder arm in two axes.
-
Page 11: Terminating The Downrigger Cable
ATTACHING THE LINE RELEASE (UNI-RELEASE) ..................................The Cannon Uni-Release attaches directly to the downrigger weight. Attach fi shing line to the clip at the end of the release, and then click through a series of increasing tension settings. - Page 12 6 MPH The following charts provide you with blowback informa- tion for three sizes of Cannon downrigger weights pulled at three different speeds with no lures attached and with no current. Current drag, water salinity and the use of non-Cannon products will affect your actual trolling depth.
- Page 13 1901141 UNI-TROLL 10 STX-TS / E In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept. Be sure to provide the MODEL and SERIAL num-bers of your downrigger when ordering parts. Please use the correct part numbers from the parts list.
- Page 14 1901020 EASI-TROLL ST In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept. Be sure to provide the MODEL and SERIAL num-bers of your downrigger when ordering parts. Please use the correct part numbers from the parts list.
- Page 15 1901140 UNI-TROLL 10 STX TS In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept. Be sure to provide the MODEL and SERIAL num-bers of your downrigger when ordering parts. Please use the correct part numbers from the parts list.
- Page 16 1901021 EASI-TROLL ST / E In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept. Be sure to provide the MODEL and SERIAL num-bers of your downrigger when ordering parts. Please use the correct part numbers from the parts list.
- Page 17 1901131 UNI-TROLL 10 STX / E In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept. Be sure to provide the MODEL and SERIAL num-bers of your downrigger when ordering parts. Please use the correct part numbers from the parts list.
- Page 18 1901120 UNI-TROLL 5 ST In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept. Be sure to provide the MODEL and SERIAL num-bers of your downrigger when ordering parts. Please use the correct part numbers from the parts list.
- Page 19 1901130 UNI-TROLL 10 STX In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept. Be sure to provide the MODEL and SERIAL num-bers of your downrigger when ordering parts. Please use the correct part numbers from the parts list.
- Page 20 1901121 UNI-TROLL 5 ST/ E In the U.S.A., replacement parts may be ordered directly from CANNON Parts Dept. Be sure to provide the MODEL and SERIAL num-bers of your downrigger when ordering parts. Please use the correct part numbers from the parts list.
