WAGNER GM 5000EA Translation Of The Original Operating Manual

Hide thumbs Also See for GM 5000EA:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

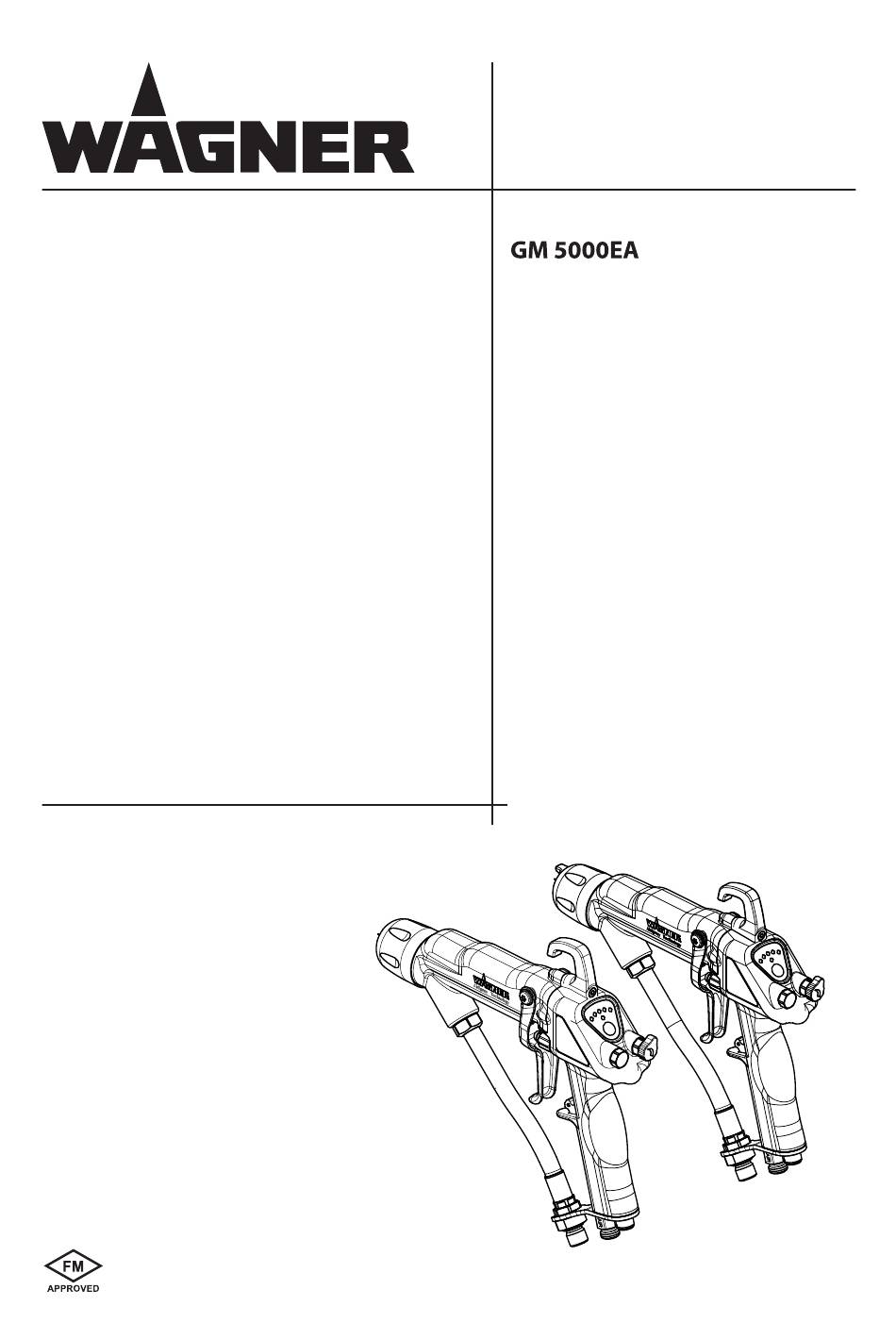

Electrostatic Airspray Gun
for Manual Operation with
Flat or Round Jet Nozzles
c
us
Translation of the Original
Operating Manual
Version 07/2014
B_03229

Advertisement

Table of Contents
loading

Related Manuals for WAGNER GM 5000EA

Summary of Contents for WAGNER GM 5000EA

  • Page 1 Translation of the Original Operating Manual Version 07/2014 Electrostatic Airspray Gun for Manual Operation with Flat or Round Jet Nozzles B_03229...

  • Page 3: Table Of Contents

    Safety Instructions for the Operator 4.1.1 Electrical Equipment 4.1.2 Staff Qualifi cations 4.1.3 Safe Work Environment Safety Instructions for Staff 4.2.1 Safe Handling of WAGNER Spray Devices 4.2.2 Grounding the Device 4.2.3 Material Hoses 4.2.4 Cleaning 4.2.5 Handling Hazardous Liquids, Lacquers and Paints 4.2.6...
  • Page 4 Air Supply 6.4.4 Product Supply 6.4.5 Grounding Preparation of Lacquer 6.5.1 Viscosity Conversion Table Wagner Electrostatic Air Spraying System 6.6.1 Pressure Settings for Round Jet Nozzles 6.6.2 Pressure Settings for Flat Jet Nozzles 6.6.3 Electrostatic and Atomization 6.6.4 Output Measuring Commissioning 6.7.1...
  • Page 5 13.1 How Can Spare Parts Be Ordered? 13.2 Spare Parts List GM 5000EA 13.2.1 Spare Parts List GM 5000EA - Adapter 13.2.2 Spare Parts List GM 5000EA - Handle 13.3 Accessories Spare Parts Lists 13.3.1 Spare Parts List AR 5000 Nozzle (D8) 13.3.2 Spare Parts List AR 5000 Nozzle (D12)

  • Page 6: General

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL GENERAL The operating manual contains information about safely operating, maintaining, cleaning and repairing the device. The operating manual is part of the device and must be available to operating and service staff .

  • Page 7: Languages

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL LANGUAGES The operating manual is available in the following languages: German English 2344499 ABBREVIATIONS Order No. Order number Spare part Marking in the spare parts lists Low R Low-resistance Position...

  • Page 8: Correct Use

    (See Chapter 3 "Identifi cation") SAFETY PARAMETERS The GM 5000EA electrostatic manual spray gun is only suitable for spraying liquid products, particularly coating products. J. Wagner AG forbids any other use!

  • Page 9: Processible Products

    μA value = ok. low kV value, high μA value = excessive conductivity of the paint -> no wrap-around In the event of application problems, please contact your local WAGNER offi ce and the lacquer manufacturer.

  • Page 10: Reasonably Foreseeable Misuse

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL REASONABLY FORESEEABLE MISUSE Processing inadmissible coating products Use of defective spare parts Use for foodstuff s Use in the pharmaceutical sector RESIDUAL RISKS Residual risks are risks which cannot be excluded even in the event of correct use.

  • Page 11: Identification

    Maximum permissible product temperature: 50 °C; 122 °F Permissible ambient temperature: 0 to +40 °C; +32 to +104 °F Safety instructions Safe handling of WAGNER spray devices Mechanical sparks can form if the device comes into contact with metal. In an explosive atmosphere: Do not knock or push the unit against steel or rusty iron.

  • Page 12: Permissible Device Combinations

    Risk of injury and equipment damage. Connect the GM 5000EA manual spray gun only to original Wagner control units. The GM 5000EA manual spray gun may only be connected to the control units listed below: VM 500 controller VM 5000 controller...

  • Page 13: General Safety Instructions

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL GENERAL SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOR THE OPERATOR Keep this operating manual at hand near the unit at all times. Always follow local regulations concerning occupational safety and accident prevention.

  • Page 14: Safe Handling Of Wagner Spray Devices

    The liquid ejection devices are to be checked for safe working conditions by an expert (e.g. Wagner Service Technician) as often as necessary or at least every 12 months, in accordance with the guidelines for liquid ejection devices (ZH 1/406 and BGR 500 Part 2 Chapter 2.36).

  • Page 15: Material Hoses

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 4.2.3 MATERIAL HOSES Ensure that the hose material is chemically resistant to the sprayed products. Ensure that the product hose is suitable for the pressure generated in the device. Ensure that the following information can be seen on the high-pressure hose:...

  • Page 16: Handling Hazardous Liquids, Lacquers And Paints

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL An explosive gas/air mixture forms in closed tanks. When cleaning devices with solvents, never spray into a closed tank. Only use electrically conductive tanks for cleaning liquids. The tanks must be grounded.

  • Page 17: Correct Use

    OPERATING MANUAL CORRECT USE WAGNER accepts no liability for any damage arising from incorrect use. Use the device only to work with the products recommended by WAGNER. Only operate the device as a whole. Do not deactivate safety fi xtures.
  • Page 18 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL...

  • Page 19: Description

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL DESCRIPTION FUNCTIONAL DESCRIPTION 5.1.1 DESIGN OF THE SPRAY GUN (BASIC VERSION) Note: The nozzle parts (pos 5; 7; 14 and 20) do not belong to the basic equipment of the spray gun.

  • Page 20: Functioning Of The Spray Gun

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 5.1.2 FUNCTIONING OF THE SPRAY GUN When the spray gun is connected to the control unit and the control unit is switched on, the pre-defi ned recipe (R1, R2 or R3) is shown on the gun display (2) as follows.
  • Page 21 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL The trigger can be used to activate, one after the other, the various functions of the spray gun. Distance Description Atomizing air open Atomizing air open and electrostatically (high-voltage) activated.

  • Page 22: Scope Of Delivery

    ORDER NUMBER DOC 2344499 OPERATING MANUAL SCOPE OF DELIVERY Order No. Designation 2344471 GM 5000EA spray gun Without control unit, product and air hose, electric cable, air cap and nozzle. Each gun includes as standard equipment: Order No. Designation 2309368...

  • Page 23: Technical Data

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL TECHNICAL DATA Maximum air pressure 0.8 MPa; 8 bar; 116 psi Maximum product pressure Fluid inlet G 1/4" A Air connection G 1/4" A Input voltage maximum 20 Vpp Input current maximum 1.0 A AC...

  • Page 24: Spray Process

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL SPRAY PROCESS 5.4.1 AIR ATOMIZING SPRAY PROCESS - ROUND JET In this process, the paint is fed to the nozzle with a pressure of appprox. 0.05-0.2 MPa; 0.5-2 bar; 7-29 psi.The atomizing air at approx.

  • Page 25: Electrostatic Effect

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 5.4.3 ELECTROSTATIC EFFECT The spray gun produces an electrostatic fi eld by means of the high-voltage electrode. As a result, the paint particles atomized by the spray gun are carried to the grounded work piece by kinetic and electrostatic energy where they adhere fi nely dispersed to the object to be sprayed.

  • Page 26: Commissioning And Operation

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL COMMISSIONING AND OPERATION TRAINING ASSEMBLY/COMMISSIONING STAFF WARNING Incorrect installation/operation! Risk of injury and equipment damage. The commissioning staff must have the technical skills to safely undertake commissioning. When putting into commissioning and for all work, read and follow the operating manual and safety regulations for the additionally required system components.

  • Page 27: Installation And Connection

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL INSTALLATION AND CONNECTION 6.4.1 TYPICAL ELECTROSTATIC AIR SPRAYING SYSTEM Electrostatic air spraying system B_03233 Designation Designation Pressure tank VM 5000 controller Stop valve Product hose Air pressure regulator tank Compressed air main...

  • Page 28: Ventilation Of The Spray Booth

    (spray pack). The system shown in fi gure B_03233 is only one example of an electrostatic air spraying system. Your Wagner distributor would be happy to assist you in creating a spraying system solution that meets your individual needs. You must familiarize yourself with the operating instructions and the safety regulations of all additional system components before starting commissioning.

  • Page 29: Air Supply

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 6.4.3 AIR SUPPLY The use of an air fi lter with the air regulator (4) ensures that only dry, clean atomizing air gets into the spray gun. Dirt and moisture in the atomizing air worsens the spraying quality and spraying pattern.

  • Page 30: Grounding

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 6.4.5 GROUNDING Perfect grounding of all conductive parts such as fl oors, walls, roofs is important for optimum coating and safety. Barriers, work pieces, transport devices, coating product tank, coating product supply or construction parts in the spray area with exception of the high-voltage parts during normal operation.
  • Page 31 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Grounding schema (example) Conveyor Note for the sprayer: Safety shoes and gloves, Control unit Power cable if used, must be static dissipative. Work piece Grounding cable Pump or pressure tank...

  • Page 32: Preparation Of Lacquer

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL PREPARATION OF LACQUER The viscosity of the lacquers is of great importance. The best spraying results are obtained with values between 15 and 30 DIN-s (measured in immersion fl ow cup DIN 4 mm;...

  • Page 33: Wagner Electrostatic Air Spraying System

    2344499 OPERATING MANUAL WAGNER ELECTROSTATIC AIR SPRAYING SYSTEM The nozzle range (chapter 12), provided by Wagner, allows optimum coating results for each application. General criteria for the selection of nozzles: fl at jet -> for large-surface parts round jet -> for small delicate parts...

  • Page 34: Pressure Settings For Flat Jet Nozzles

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL By turning the lateral adjusting screw of the gun, the outlet cross-section can be adjusted on the product valve. By reducing this cross-section under the same pressure settings you can create a further refi nement of the atomization, i.e. turning the adjustment screw upwards.

  • Page 35: Electrostatic And Atomization

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 6.6.3 ELECTROSTATIC AND ATOMIZATION The electrostatic charging of the spray cloud produces a more homogeneous distribution of paint particles on the object. See also Chapter 5.4.3. 6.6.4 OUTPUT MEASURING Device: GM 5000EAF...

  • Page 36: Commissioning

    Connect the electric cable to the spray gun and to the VM 5000 or VM 500 control unit. Visually check the permissible pressures for all the system components. When using a Wagner pneumatic pump: Check the level of the separating agent and fi ll the separating agent up if necessary.
  • Page 37 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Provide product tank, tanks for fl ushing agent and an empty tank for return. Connect the system to the air and power supply. A basic fl ushing of system must be carried out before commissioning. Make sure that no nozzle is inserted into the gun.
  • Page 38 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Attention: guns with electric extension cable Secure the cover sleeves with the warning sign by means of the screws (84) on the connectors. Note: In order to prevent power losses keep the cable length as short as possible. The maximum power is available with the standard cable length of 10 m.

  • Page 39: Operation

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL OPERATION TRAINING THE OPERATING STAFF WARNING Incorrect operation! Risk of injury and equipment damage. The operating staff must be qualifi ed to operate the entire system. Before work commences, the operating staff must receive appropriate training.

  • Page 40: Work

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL B_03233 WORK 7.3.1 FILLING WITH WORKING PRODUCT Provide an empty tank for return (13). See picture B_03233. Put the tank with work product into the pressure tank (1) and close the pressure tank.

  • Page 41: Start-Up Spraying

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 7.3.2 START-UP SPRAYING Insert the desired nozzle into the gun. Open stop valve (2). Turn on the control unit (9). Set the product supply to operating pressure Spray on a test object (pull trigger).

  • Page 42: Changing From Air Round Jet To Air Flat Jet

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 7.3.3 CHANGING FROM AIR ROUND JET TO AIR FLAT JET NOTICE Defective electrode! Material damage due to functional faults. Do not damage the electrode. 1. Switch off control unit. 2. Relieve spray gun and device pressure! 3.

  • Page 43: Changing The Valve Housing

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 7.3.5 CHANGING THE VALVE HOUSING NOTICE Changing the valve housing! Equipment damage. Activate the spray gun trigger when changing the valve housing. To prevent damage to the gun (valve seat rubs on the valve needle, valve needle may loosen), activate the spray gun trigger when changing the valve housing.

  • Page 44: Cleaning And Maintenance

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL CLEANING AND MAINTENANCE CLEANING 8.1.1 CLEANING STAFF Cleaning work should be undertaken regularly and carefully by qualifi ed and trained staff . They should be informed of specifi c hazards during their training.

  • Page 45: Cleaning And Decommissioning

    Incorrect maintenance/repair! Risk of injury and equipment damage. Have repairs and part replacements be carried out only by specially trained staff or a WAGNER service center. Before all work on the device and in the event of work interruptions: - Switch off the energy/compressed air supply.
  • Page 46 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL DANGER Exploding gas / air mixture! Danger to life from fl ying parts and burns. Never spray into a closed tank. Ground the tank. Gun fl ushing Switch off control unit.

  • Page 47: Maintenance

    In accordance with the guideline for liquid ejection devices (ZH 1/406 and BGR 500 Part 2 Chapter 2.36): - The liquid ejection devices should be checked by an expert (e.g. Wagner service technician) for their safe working conditions as required and at least every 12 months.

  • Page 48: Disassembly Of The Spray Gun

    DANGER Incorrect maintenance/repair! Danger to life and equipment damage. Only a WAGNER service center or a suitably trained person may carry out repairs and replace parts. Only repair and replace parts that are listed in the "Spare Parts" chapter and that are assigned to the device.

  • Page 49: Disassembly Of The Spray Gun

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 8.3.2 DISASSEMBLY OF THE SPRAY GUN SW12 SW12 B_03246 Torx 25 SW19 B_03247 SW19...
  • Page 50 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Carefully release the cascade without pliers. SW19 B_03248 SW19 Note: Assembly tool for Loosen valve tip Air by hand needle valve. using an assembly tool. Order No. 2309368 SW11 Use socket or ring spanner (no wrench).
  • Page 51 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 1. Remove pressure spring (4). 2. Loosen clamping screw compl. (1) with assembly tool (5). 3. Unscrew the complete package (3) via valve rod unit complete (2, 6 and 7) or pull out the valve rod unit and unscrew it using an Allen wrench SW5.

  • Page 52: Cleaning The Parts After Disassembly

    Care should be taken that these parts remain free of solvents, grease or sweat from the hands (salt water). Spare parts may have safety-relevant properties. Use only WAGNER original spare parts and accessories. Defective parts, O-rings and seal sets must always be re-placed. WARNING Incompatibility of cleaning agent and working medium! Risk of explosion and danger of poisoning by toxic gasses.

  • Page 53: Assembly Of The Spray Gun

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL ASSEMBLY OF THE SPRAY GUN B_03448 Ensure the correct insertion position! B_03251a Mounting aids: Order No. Designation SW14 9992590 Loctite 222 3 Nm 9992698 Vaseline white PHHV II 9992831 Loctite 542...
  • Page 54 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Valve rod unit Length adjusting measure X = 122 ± 0.1 Push together the valve rod unit and the complete package. Screw in together the valve rod unit and 0.4 - 0.5 Nm the complete package.
  • Page 55 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Clean and degrease the inside of the adapter and the cascade, then grease the cascade surface with Vaseline. SW19 0.8 Nm 2.5 Nm SW19 B_03255 SW19 B_03254 Push the trigger upward into the air valve piston.
  • Page 56 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 0.8 Nm Ensure the correct insertion position! SW12 SW12 B_03257 Flat jet nozzle Various nozzle sizes see Chapter 12.3 Round jet nozzle Various nozzle sizes see Chapter 12.2 B_03258...

  • Page 57: Function Test After Assembly Of The Gun

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL FUNCTION TEST AFTER ASSEMBLY OF THE GUN 8.6.1 TEST OF THE HIGH-VOLTAGE Necessary test equipment: VM 500 or VM 5000 control unit and HV200 high-voltage tester. High-voltage measurement on spraying gun.

  • Page 58: Air Test

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 8.6.2 AIR TEST Connect test or air hose to the spray gun and switch on mains pressure 0.8 MPa; 8 bar; 116 psi maximum. Checking the air valve The air valve must switch on and off correctly.

  • Page 59: Test Of Spray Pattern

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 8.6.4 TEST OF SPRAY PATTERN Start air-spraying (without electrostatics) Start up with product supply set to approx. 0.05 to 0.15 MPa; 0.5 to 1.5 bar; 7 to 22 psi operating pressure.

  • Page 60: High Pressure Hoses

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL HIGH PRESSURE HOSES The service life of the fl uid hoses is reduced due to environmental infl uences even when handled correctly. Check hoses, pipes, and couplings every day and replace if necessary.

  • Page 61: Troubleshooting And Rectification

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL TROUBLESHOOTING AND RECTIFICATION Functional fault Cause Remedy Insuffi cient product output Nozzle too small. Select larger nozzle (see nozzle table 12.2 und 12.3). Product pressure too low. Increase product pressure.

  • Page 62: Product Disposal

    Wagner or one of our dealers will take back your used Wagner electric or electronic equipment and will dispose of it for you in an environmentally-friendly way.

  • Page 63: Accessories

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL ACCESSORIES 12.1 VALVE SEATS / VALVE TIPS 12.1.1 VALVE SEATS Order No. Designation Valve seat Air complete (steel) 2312179 (Standard version) B_03697 2312176 Valve seat Air complete (PEEK) B_03697 12.1.2 VALVE TIPS Order No.

  • Page 64: Round Jet Nozzles

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 12.2 ROUND JET NOZZLES 12.2.1 AR 5000 AIR CAPS Order No. Designation 2310557 AR 5000 air cap (D8) B_03239 2315049 AR 5000 air cap (D12) B_03239 12.2.2 AR 5000 NOZZLES Order No.

  • Page 65: Af 5000 Nozzles

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 12.3.2 AF 5000 NOZZLES Order No. Designation 2310539 AF 5000 nozzle - 0.6 mm (black) B_03241 2310540 5000 nozzle - 0.8 mm (yellow) B_03241 2310541 AF 5000 nozzle - 1.0 mm (red)

  • Page 66: Hoses And Electric Cables

    HOSES AND ELECTRIC CABLES 12.4.1 STANDARD HOSE SETS AND COMPONENTS B_03245 Order No. Designation 2339167 GM 5000EA hose set (7.5 m) Consists of: 2339130 Low pressure hose DN6-PN20-G¼"-7.5 m-PA 2339152 Air hose complete (8.0 m) 2339157 GM 5000E gun cable (10.0 m) 3676437 Protection hose fabric PP30 (8.0 m)
  • Page 67 2 Air hose 3 Electric cable Order No. Description A [mm] B [mm] C [mm] D [mm] E [mm] 2339167 GM 5000EA hose set (7.5 m) 29±2 47±2 300±10 20±10 1500 +100 +100 2339168 GM 5000EA hose set (10m) 29±2 47±2...

  • Page 68: Hose Sets For Low-Resistance Products

    GM 5000E gun cable (15.0 m) 10.5 m 3676437 Protection hose fabric PP30 (10.5 m) Order No. Designation 2339177 GM 5000EA hose set (15.0 m), Low R Consists of: 2310466 EA product hose complete (15.0 m) Low R 2339154 Air hose complete (15.5 m) 2339159 GM 5000E gun cable (20.0 m)
  • Page 69 GM 5000EA hose set (10m) Low R 200±2 171±2 300±10 20±10 1500 +100 182±1 +100 2339177 GM 5000EA hose set (15 m), Low R 200±2 171±2 300±10 20±10 1500 182±1 2339178 GM 5000EA hose set (20 m) Low R 200±2 171±2...

  • Page 70: Gun Cables And Gun Cable Extensions

    Reduction fi tting RF-FM-M16x1,5-G1/4"-PN530-SSt 384556 Reduction fi tting RF-FM-M16x1,5-3/8"NPSM-PN530-SSt 34041 Reduction fi tting RF-FM-1/4"NPS-M16x1,5--PN270-SSt B_03221 179732 Reduction fi tting RF-FM-1/4"NPS-3/8"NPS--PN270-SSt 179247 Reduction fi tting RF-FM-1/4"NPS-G1/4"--PN270-SSt In the large Wagner Accessories Catalogue for wet coating you will also fi nd other material fi ttings.

  • Page 71: Miscellaneous

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 12.6 MISCELLANEOUS Order No. Designation 2319653 Protective gun coating B_03693 259010 HV200 N high-voltage tester P_00265 2326041 Lacquer resistance meter B_03692 999080 Wet fi lm thickness gauge B_03224 50342 Viscosity cup DIN 4 mm; 0.16 inch...
  • Page 72 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL...

  • Page 73: Spare Parts

    Incorrect maintenance/repair! Risk of injury and equipment damage. Have repairs and part replacements be carried out only by specially trained staff or a WAGNER service center. Before all work on the device and in the event of work interruptions: - Switch off the energy/compressed air supply.

  • Page 74: Spare Parts List Gm 5000Ea

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 13.2 SPARE PARTS LIST GM 5000EA B_03235...
  • Page 75 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Spare parts list GM 5000EA Order No. Designation 2344471 GM 5000EA basic version 2315709 Protection cap valve needle GM 5000EA adapter complete Details see Chapter 13.2.1 2314361 Hook ES 5000 Air handle complete Details see Chapter 13.2.2...

  • Page 76: Spare Parts List Gm 5000Ea - Adapter

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 13.2.1 SPARE PARTS LIST GM 5000EA - ADAPTER B_04367...
  • Page 77 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Spare parts list Adapter Order No. Designation GM 5000EA adapter complete 2309391 Air manifold ring Air 2307180 O-ring, sheathed 2312179 Valve seat Air complete (steel) 2312176 Valve seat Air complete (PEEK)

  • Page 78: Spare Parts List Gm 5000Ea - Handle

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 13.2.2 SPARE PARTS LIST GM 5000EA - HANDLE B_04774...
  • Page 79 GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL Spare parts list Handle Order No. Designation GM 5000EA handle complete 2307288 Nipple 9971025 O-ring 2307290 Hose holder 2312182 Plug complete 2314270 Handle complete 2307232 Adapter seal 2325789 Adjusting screw complete...

  • Page 80: Accessories Spare Parts Lists

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 13.3 ACCESSORIES SPARE PARTS LISTS Notes concerning AR5000 D8 nd D12 nozzles: Parts 3 and 4 can be pushed out of the nozzle by means of a suitable pin ( 2.0-2.3 mm; 0.08-0.09 inch).

  • Page 81: Spare Parts List Ar 5000 Nozzle (D8)

    GM 5000EA EDITION 07/2014 ORDER NUMBER DOC 2344499 OPERATING MANUAL 13.3.1 SPARE PARTS LIST AR 5000 NOZZLE (D8) B_03263 Spare parts list AR 5000 nozzle (D8) Order No. Designation 2310558 AR 5000 nozzle complete (D8) 2327658 AR nozzle (D8) 2327659...

  • Page 82: Warranty

    The manufacturer will not be held liable or will only be held partially liable if third-party accessories or spare parts have been used. With genuine WAGNER accessories and spare parts, you have the guarantee that all safety regulations are complied with.
