Sram® Hydror™ Brake Caliper Service; Parts, Tools, And Supplies; Exploded View - SRAM HydroR Service Manual

S R A M ® H y d r o R ™ B r a k e C a l i p e r S e r v i c e
P a r t s , T o o l s , a n d S u p p l i e s
Parts
• HRD B1 Caliper Parts Kit
Safety and Protection Supplies
• Apron
• Clean, lint-free rags
• Nitrile gloves
• Oil pan
• Safety glasses
Lubricants and Fluids
• Isopropyl alcohol
• SRAM DOT 5.1 hydraulic brake fluid
• SRAM DOT assembly grease
SRAM Tools
• SRAM bleed block hydraulic road disc

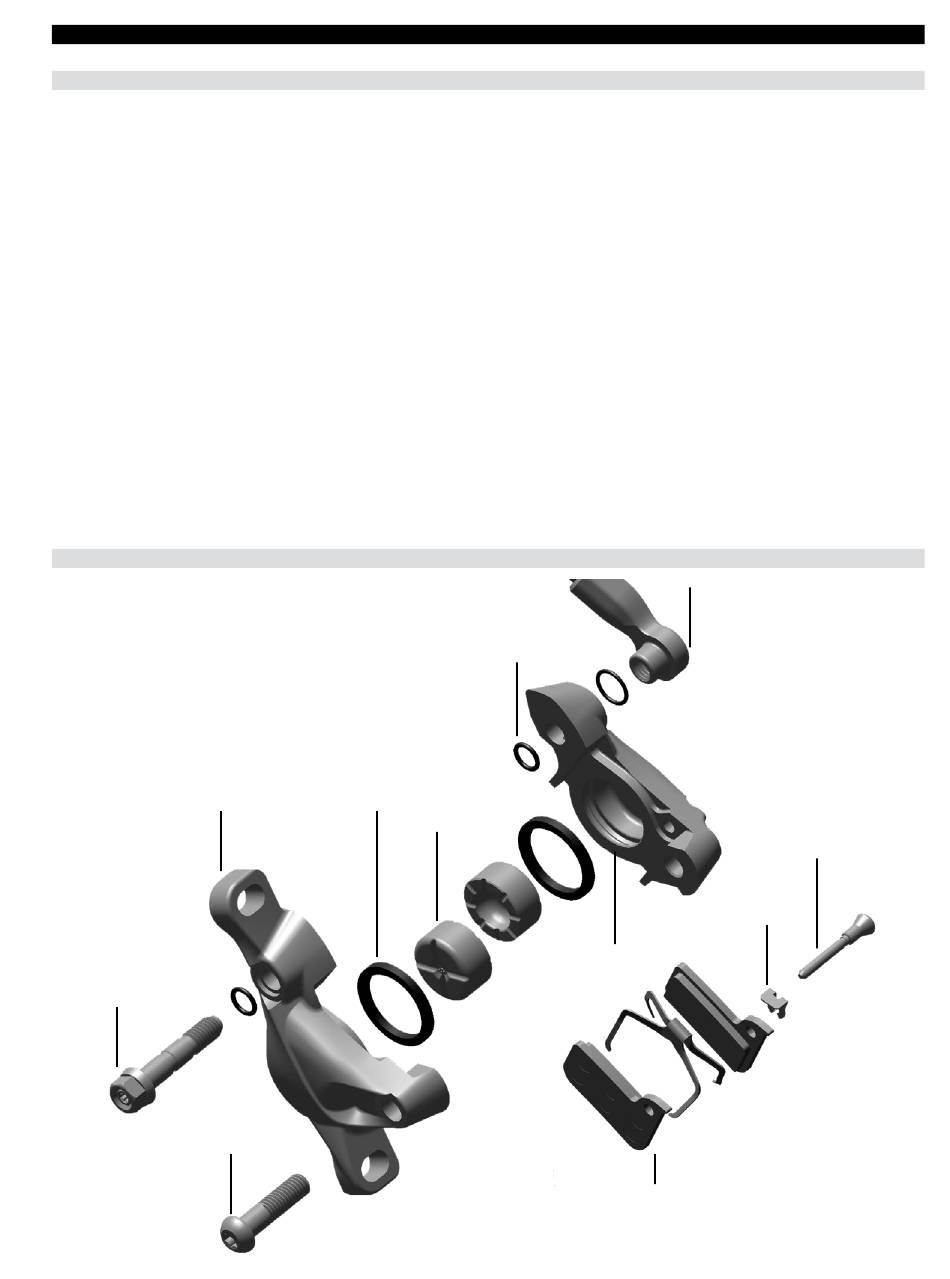

E x p l o d e d V i e w
Caliper body
Banjo bolt
Body bolt
Bicycle Tools
• Bicycle work stand
Common Tools
• Air compressor with rubber-tipped air chuck nozzle
• Bench vise with aluminum soft jaws
• Crowfoot wrench: 8 mm, 9 mm
• Digital caliper
• Flare nut wrench: 8 mm
• Hex wrench: 2.5 mm
• Hex bit socket: 2.5 mm
• Needle nose pliers
• Open end wrench: 6 mm, 10 mm
• Pick
• T25 TORX® wrench
• T25 TORX bit socket
• Torque wrench
O-ring(s)
Piston seal(s)
Caliper
piston(s)
Banjo
E-clip
Piston bore(s)
Brake pads
SRAM® HydroR™ Brake Caliper Service
Pad retention bolt
8
