QUICK REFERENCE GUIDE

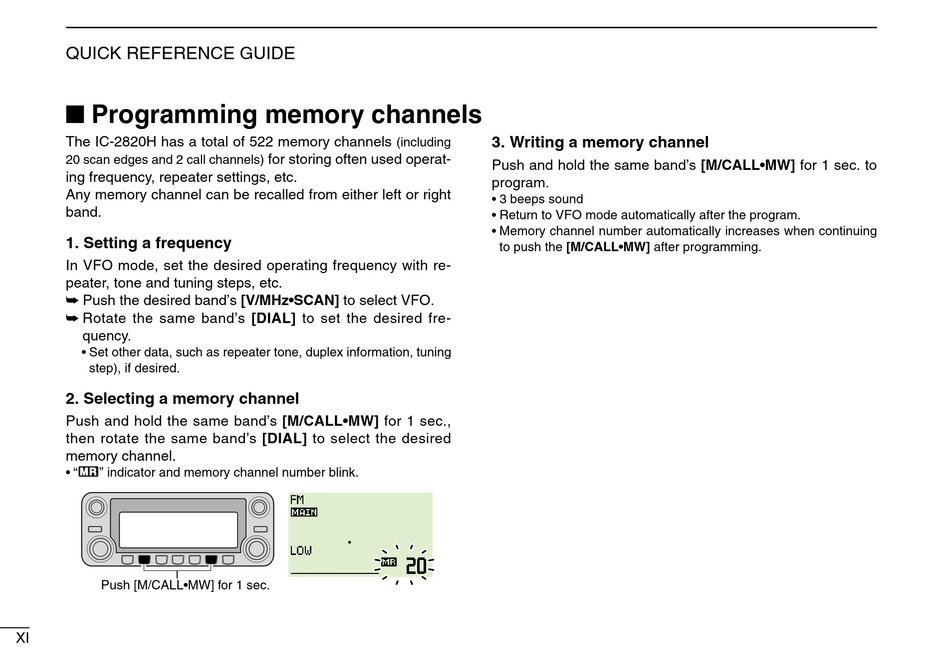

I Programming memory channels

The IC-2820H has a total of 522 memory channels
20 scan edges and 2 call channels)
ing frequency, repeater settings, etc.
Any memory channel can be recalled from either left or right
band.
1. Setting a frequency
In VFO mode, set the desired operating frequency with re-
peater, tone and tuning steps, etc.
➥ Push the desired band's [V/MHz•SCAN] to select VFO.
➥ Rotate the same band's [DIAL] to set the desired fre-
quency.
• Set other data, such as repeater tone, duplex information, tuning
step), if desired.
2. Selecting a memory channel
Push and hold the same band's [M/CALL•MW] for 1 sec.,
then rotate the same band's [DIAL] to select the desired
memory channel.
• "X" indicator and memory channel number blink.
Push [M/CALL•MW] for 1 sec.
XI
(including
for storing often used operat-
3. Writing a memory channel
Push and hold the same band's [M/CALL•MW] for 1 sec. to
program.
• 3 beeps sound
• Return to VFO mode automatically after the program.
• Memory channel number automatically increases when continuing
to push the [M/CALL•MW] after programming.
