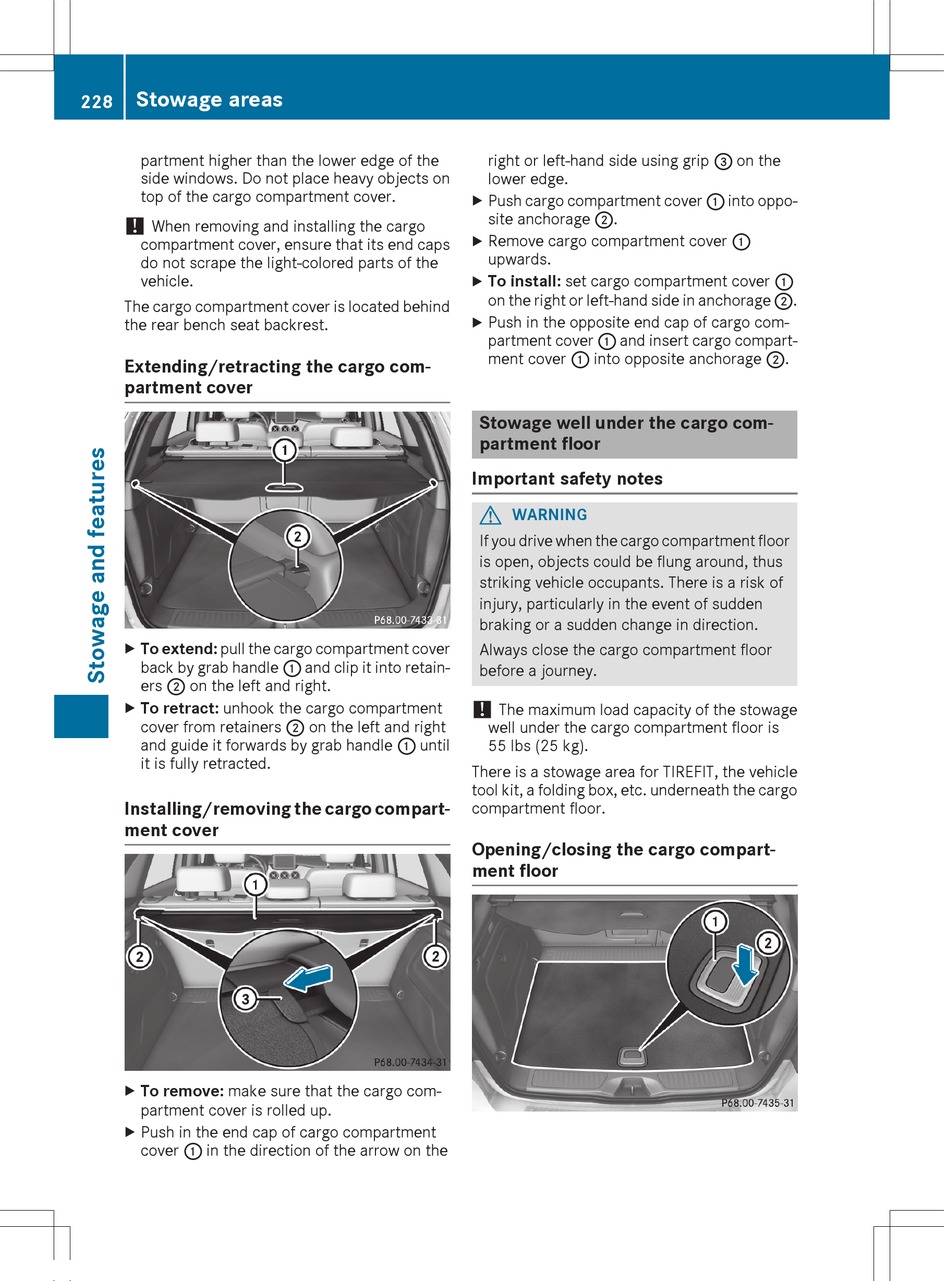

Stowage areas
228
partment higher than the lower edge of the
side windows. Do not place heavy objects on
top of the cargo compartment cover.
!
When removing and installing the cargo
compartment cover, ensure that its end caps
do not scrape the light-colored parts of the
vehicle.
The cargo compartment cover is located behind
the rear bench seat backrest.
Extending/retracting the cargo com-
partment cover
To extend: pull the cargo compartment cover
X
back by grab handle : and clip it into retain-
ers ; on the left and right.
To retract: unhook the cargo compartment
X
cover from retainers ; on the left and right
and guide it forwards by grab handle : until
it is fully retracted.
Installing/removing the cargo compart-
ment cover
To remove: make sure that the cargo com-
X
partment cover is rolled up.
Push in the end cap of cargo compartment
X
cover : in the direction of the arrow on the
right or left-hand side using grip = on the
lower edge.
Push cargo compartment cover : into oppo-
X
site anchorage ;.
Remove cargo compartment cover :
X
upwards.
To install: set cargo compartment cover :
X
on the right or left-hand side in anchorage ;.
Push in the opposite end cap of cargo com-
X
partment cover : and insert cargo compart-
ment cover : into opposite anchorage ;.
Stowage well under the cargo com-
partment floor
Important safety notes
G
WARNING
If you drive when the cargo compartment floor
is open, objects could be flung around, thus
striking vehicle occupants. There is a risk of
injury, particularly in the event of sudden
braking or a sudden change in direction.
Always close the cargo compartment floor
before a journey.
!
The maximum load capacity of the stowage
well under the cargo compartment floor is
55 lbs (25 kg).
There is a stowage area for TIREFIT, the vehicle
tool kit, a folding box, etc. underneath the cargo
compartment floor.
Opening/closing the cargo compart-
ment floor
