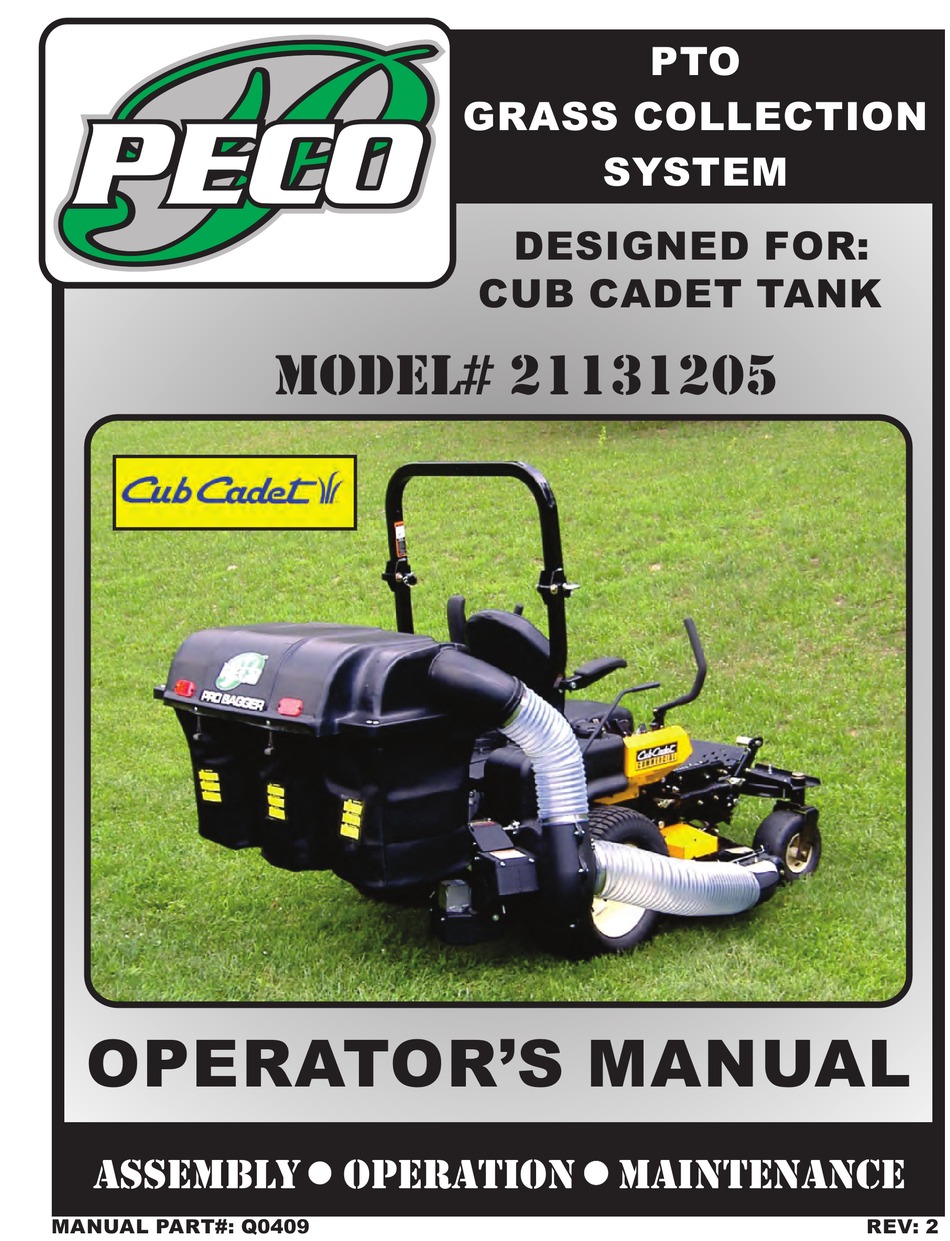

- Page 1 P P P GRASS COLLECTION PECO PECO PECO PECO PECO SYSTEM DESIGNED FOR: CUB CADET TANK MODEL# 21131205 OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE MANUAL PART#: Q0409 REV: 2...
-
Page 2: Table Of Contents
GRASS COLLECTION SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 2-13 Length Of Hose Adjustment - - - - - - - - - - - - - - 10 Safety Alert Symbols - - - - - - - - - - - - - - - - - - - - - - 3 2-14 Upper Hose Installation - - - - - - - - - - - - - - - - 10... -
Page 3: Safety Alert Symbols
SAFETY WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 4: Warranty
1. NO SERVICE CENTER WARRANTY The selling Service Center makes no warranty on his own on any item warranted by New PECO, Inc. unless he delivers to purchaser a separate written warranty certificate specifically warranting the item. The dealer has no authority to make any representation or promise on behalf of PECO or to modify the terms of this warranty in any way. -
Page 5: Introduction And Description
P#(A1109), (1) 7/16” lock washer P#(K0140), (1) keyway P#(K1627) and (1) 7/16”-20 x 3/4” HHCS P#(K0350). We are pleased to have you as a PECO customer. Your The added pulley will power the collection system. Note collection system has been designed to give you a low... -
Page 6: Lower Mount Plate And Pto Mount Plate Assembly Installation
2-2 Lower Mount Plate And PTO 2-4 Universal PTO Installation Mount Plate Assembly Installation To mount the PTO assembly, insert the mount rod on the PTO assembly P#(A0623) into the mounting slots Fasten the lower mount plate P#(B0395) and the PTO located on the PTO mount plate assembly P#(A0846). -
Page 7: Belt Installation And Adjustment
2-5 Belt Installation PTO Mount Loosen the (4) bolts P#(K1191), (2) on each side, that Plate secure the gear box assembly to the PTO assembly P#(A0623) (Figure 2-5a and 2-5b). Loosen the adjustment bolt P#(K0348) until the gear box assembly Gear Box is at its far left adjustment (the gear box is moved toward the mower’s engine pulley). -
Page 8: Upper Frame Assembly Installation
2-8 Upper Frame Assembly 2-10 Boot To Mower Deck Installation Installation Remove the grass deflector (Figure 2-10a) from the mower deck by lifting the deflector and removing the NOTE: During this step, it is suggested that two people deflector rod and spring (Figure 2-10b). Remove the install the upper frame to the lower mount tube. -
Page 9: Blower Cone Installation
2-12 Impeller Blade 2-11 Blower Cone Installation Removal/Replacement Remove the blower cone from the blower housing Thread (1) 5/16”-18 jam nut P#(K0120) onto each end of located on the PTO assembly P#(A0623). With the (2) 5/16”-18 x 2-1/2” HHCS P#(K0125). Now partially blower cone removed, you will have access to the thread the bolts into each of the two tabs located on the impeller blade P#(A0645). -
Page 10: Length Of Hose Adjustment
2-16 Lower Hose To Boot Installation 2-13 Length Of Hose Adjustment Take the unattached end of the lower hose and slide it The hoses in steps 2-14 and 2-15 must be cut to fit your over the circular end of the boot. Use the lower hose machine. -
Page 11: Installation Of Collection Bags
2-18 Installation/Removal Of Figure 2-18c Collection Bags Plastic Top IMPORTANT! To prevent bag wear, install (2) red plastic end caps P#(J0274), as shown in Figure 2-18a, on each bag ring before installing bags. Figure 218a Bag Ring Red Plastic End Caps Fasten Draw -Latch Here &... -
Page 12: Exploded Part Views And Assemblies
Exploded Parts View A1158 Top Assembly Item # Doc # Title V0022 PRO 3 BAGGER TOP B0676 Hinge Stop Pl. K0114 BLACK PLASTIC RIVET C0069 DUST GUARD BRACE K1030 1/4"-20 x 1-1/4" CARRIAGE BOLT J4009 SHORT RUBBER STRAP W/ S HOOK K0037 1/4"... - Page 13 A1841_01 PTO Arm Assembly...
- Page 14 A1941_01 PTO Base Assembly Exploded Parts View...
- Page 15 A1941_01 PTO Base Assembly Exploded Parts List...
- Page 16 A0623 PTO Assembly w/ Small Pulley Guard Exploded Parts View...
- Page 17 MODEL#: 21131205 MOWER NAME: CUB CADET MOWER MODEL: TANK W/ 23HP KW MOWER DECK SIZE: 48”, 54”, & 60” VAC NAME: 12 CUBIC FOOT PRO BAGGER FOR YEAR: 2010 PTO DRIVEN REVISED: A1787 UNIT ASSEMBLY HB0425 HARDWARE J1000 C0058 2” - 10”...
-
Page 18: Operating Instructions
SECTION III 3-3 Disengagement Of The Blower OPERATING A. To disengage the blower, rotate the engagement INSTRUCTIONS handle towards the mower. 3-1 General Safety WARNING: The blower will continue to spin. DO NOT TOUCH the blower, pulleys, or the belt until the tractor is Only qualified people familiar with this operator’s manual turned off. -
Page 19: Lubrication
5-1 Parts And Service Information 1. Clean all debris from machine especially from the container, underneath the belt shields, and safety PECO collection system owners should record the name decals. Replace any missing or illegible decals. and telephone number of their Service Center. Your Service Center will be happy to supply replacement 2. -
Page 20: Safety Decals
SAFETY DECALS To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #: R1057 Part #: R1054... - Page 22 P P P PECO PECO PECO PECO PECO P.O. BOX 1197 ARDEN, NORTH CAROLINA 28704 (800) 438-5823 OR (828) 684-1234 FAX: (828) 684-0858 EMAIL: peco@lawnvac.com WEBSITE: www.lawnvac.com...
