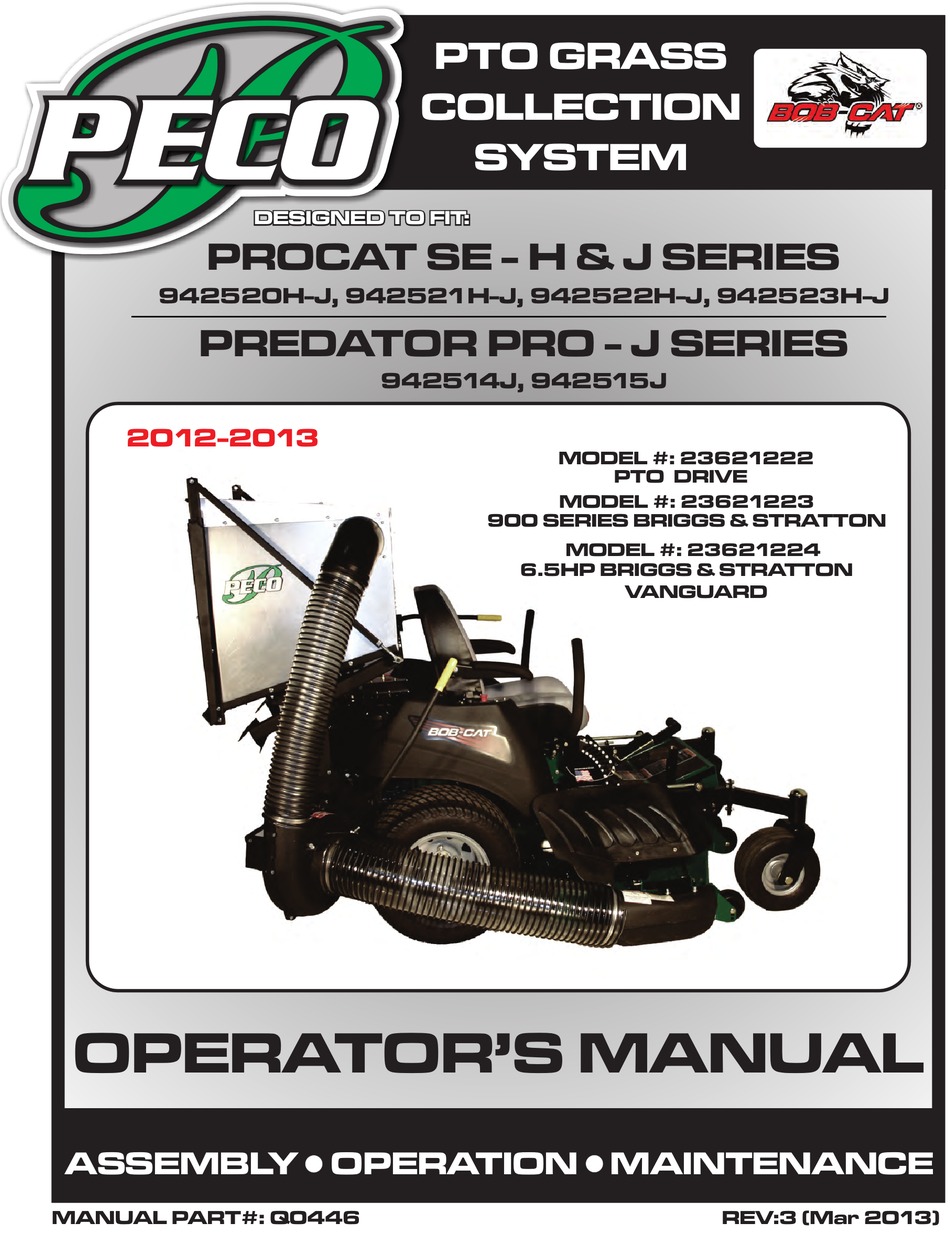

2012-2013
OPERATOR'S MANUAL
ASSEMBLY OPERATION MAINTENANCE
MANUAL PART#: Q0446
DESIGNED TO FIT:
DESIGNED TO FIT:
PROCAT SE - H & J SERIES
942520H-J, 942521H-J, 942522H-J, 942523H-J
PREDATOR PRO - J SERIES
PTO GRASS
R
COLLECTION
SYSTEM
942514J, 942515J
MODEL #: 23621222
MODEL #: 23621223
900 SERIES BRIGGS & STRATTON
6.5HP BRIGGS & STRATTON
PTO DRIVE
MODEL #: 23621224
VANGUARD
REV:3 (Mar 2013)
Advertisement
Table of Contents
Related Manuals for Peco 942520H-J
Summary of Contents for Peco 942520H-J
- Page 1 PECO PECO COLLECTION SYSTEM DESIGNED TO FIT: DESIGNED TO FIT: PROCAT SE - H & J SERIES 942520H-J, 942521H-J, 942522H-J, 942523H-J PREDATOR PRO - J SERIES 942514J, 942515J 2012-2013 MODEL #: 23621222 PTO DRIVE MODEL #: 23621223 900 SERIES BRIGGS & STRATTON MODEL #: 23621224 6.5HP BRIGGS &...
-
Page 2: Table Of Contents
PECO GRASS COLLECTION SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2... -
Page 3: Safety Alert Symbols
SAFETY WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating. -
Page 4: Warranty
PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or before the expiration of the original warranty period, whichever is later. -
Page 5: Introduction And Description
Section I - INTRODUCTION AND DESCRIPTION 1-1 Introduction 1-2 Description We are pleased to have you as a PECO customer. Your The grass collection system is designed for turf collection system has been designed to give you a low maintenance where there is a need to collect the grass maintenance, simple, and effective way to collect the clippings as the mower cuts the turf. -
Page 6: Installation For Use
SECTION I INTRODUCTION AND DESCRIPTION Remove the rear bumper from the mower and save all Section II hardware for use in the next steps of installation. Refer to Figure 2-1b and Figure 2-1c. INSTALLATION FOR USE Figure 2-1b 2-1 Preparation Of Mower Remove Rear Bumper Carefully dismantle wooden shipping crate from around... -
Page 7: Right & Left Frame Bracket Installation
2-3 Right and Left Frame Bracket 2-4 Main Frame Assembly Installation Installation NOTE: On units with the Donaldson air cleaner, loosen the hardware are rotate the air cleaner to the forward- Secure the right frame bracket P#(B0785) to the rear most position. -
Page 8: Lift Handle Installation
2-5 Lift Handle Installation Fasten the ball joint P#(K1442) to the end of the latch rod P#(A0620). Tighten the ball joint to approximately NOTE: Before continuing the lift handle installation, half way down the threads on the latch rod. Attach the have someone assist you in turning the grass container ball joint to the latch hook as shown in Figure 2-5d, using upside down. -
Page 9: Aluminum Grass Container Installation
2-6 Aluminum Grass Container 2-8 Inlet Installation Installation Remove the (4) tinnerman screws P#(K1092) and (4) inlet clamp plates P#(B1668) from the inlet opening on NOTE: It is recommended that (3) people assist in the aluminum box. Insert the plastic inlet from the inside mounting the container. -
Page 10: Box Assembly Exploded Views
Lift Handle Assembly Aluminum Grass Container Assembly Inlet Aluminum Grass Container With Handle Attached Latch Hook Mechanism Assembly MAIN FRAME... - Page 11 Exploded Parts View A0794 Aluminum Grass Container...
-
Page 12: Pto Mount Plate Installation
2-9 PTO Mount Plate Installation 2-10 PTO Assembly Installation PTO MODELS ONLY PTO MODELS ONLY Secure the right PTO mount plate P#(B0787) and left Insert the PTO assembly P#(A0623) into the mounting PTO mount plate P#(B0788) to the right frame bracket slots on the PTO mount plates and secure using (1) using (3) 3/8”-16 x 1”... -
Page 13: Belt Installation And Adjustment
Connect the kevlar cord belt A57K P#(M0256) from the 2-11 Belt Installation and Adjustment engine pulley to the lower gear box pulley as shown in Figure 2-11d. PTO MODELS ONLY Loosen the (4) bolts P#(K1191), (2) on each side, that Figure 2-11d secure the gear box assembly to the PTO assembly Connect Belt... -
Page 14: Cam Assembly Adjustment
2-12 Cam Assembly Adjustment 2-14 Engine Mount Arm Assembly Installation PTO MODELS ONLY The cam assembly P#(A0422), which controls the blower belt tension, comes from the factory pre-adjusted. Insert the engine mount arm assembly P#(A1824) into If the belt is too tight or becomes too loose, remove the the end of the outer engine mount tube and secure using hair pin clip P#(K0099) from the belt tension rod (1) detent pin P#(J0248). -
Page 15: Impeller Blade Removal And Replacement
2-17 Impeller Blade Removal/Replacement Tips on removing impeller blade; To gain impeller blade (#1) access, first remove the 1 - Try carefully hitting the base of the impeller blade blower cone (#2) from the blower housing, located on (#1), between each vein (#12), with a rubber mallet to the PTO assembly P#(A1821), by removing two blower loosen the taper-lock bushing hold. - Page 19 Exploded Parts View A0623 PTO Assembly M0250 A30K BELT (32”) ISO VIEW M0256 A57K BELT (59”) (INCLUDED IN H.W. BAG)
- Page 20 PTO Parts List A0623 PTO Assembly Item Document Title Quantity Number Number A0429 GEAR BOX ASSEMBLY K0348 3/8"-16 x 2" ALL THREAD HHCS K0047 3/8" FLAT WASHER 1.00 OD x .446 ID x .075 T K0353 1/4"-20 x 1/2" HHSTS K1159 5/16"-18 x 2"...
-
Page 21: Boot To Mower Deck Installation
2-18 Boot to Mower Deck Installation 2-21 Lower Hose To Blower Cone Secure the boot plate P#(B0673) to the mower deck Installation using (1) boot rod P#(B0288) and (1) hair pin clip Slide a 2”-10” upper hose clamp P#(J1000) over both P#(K0099). -
Page 22: Throttle Cable Installation
2-25 Throttle Cable Installation NOTE: Engine Driven Models Only Figure 2-25c To install the throttle cable kit to the ROPS (roll over protection system), place the 3/8” U-Bolt P#(K0136) onto the ROPS with the threads facing the front of the mower. -
Page 23: Operating Instructions
SECTION III 3-3 Disengagement Of The Blower OPERATING A. To disengage the blower, rotate the engagement INSTRUCTIONS handle towards the mower. 3-1 General Safety WARNING: The blower will continue to spin. DO NOT TOUCH the blower, pulleys, or the belt until the tractor is Only qualified people familiar with this operator’s manual turned off. -
Page 24: Lubrication
5-1 Parts And Service Information 1. Clean all debris from machine especially from the container, underneath the belt shields, and safety PECO collection system owners should record the name decals. Replace any missing or illegible decals. and telephone number of their Service Center. Your Service Center will be happy to supply replacement 2. -
Page 25: Safety Decals
SAFETY DECALS To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #: R1055 Dump Grass Label... - Page 27 P P P PECO PECO PECO PECO PECO 10 WALDEN DRIVE ARDEN, NORTH CAROLINA 28704 (800) 438-5823 OR (828) 684-1234 FAX: (828) 684-0858 EMAIL: peco@lawnvac.com WEBSITE: www.lawnvac.com...
