Planet WDAP-702AC Quick Installation Manual

Quick Installation Guide
WDAP-702AC
1200Mbps Dual Band 802.11ac
Outdoor Wireless AP

1. Package Contents

Thank you for choosing PLANET Outdoor Wireless AP. Before installing,
please verify the contents inside the package box. The device mentioned
herein is the brief name of the "Outdoor Wireless AP/CPE".
WDAP-702AC Quick Guide
Mounting Ring x 1 Screw Set x 1
If there is any item missing or damaged, please contact the
seller immediately.
Note

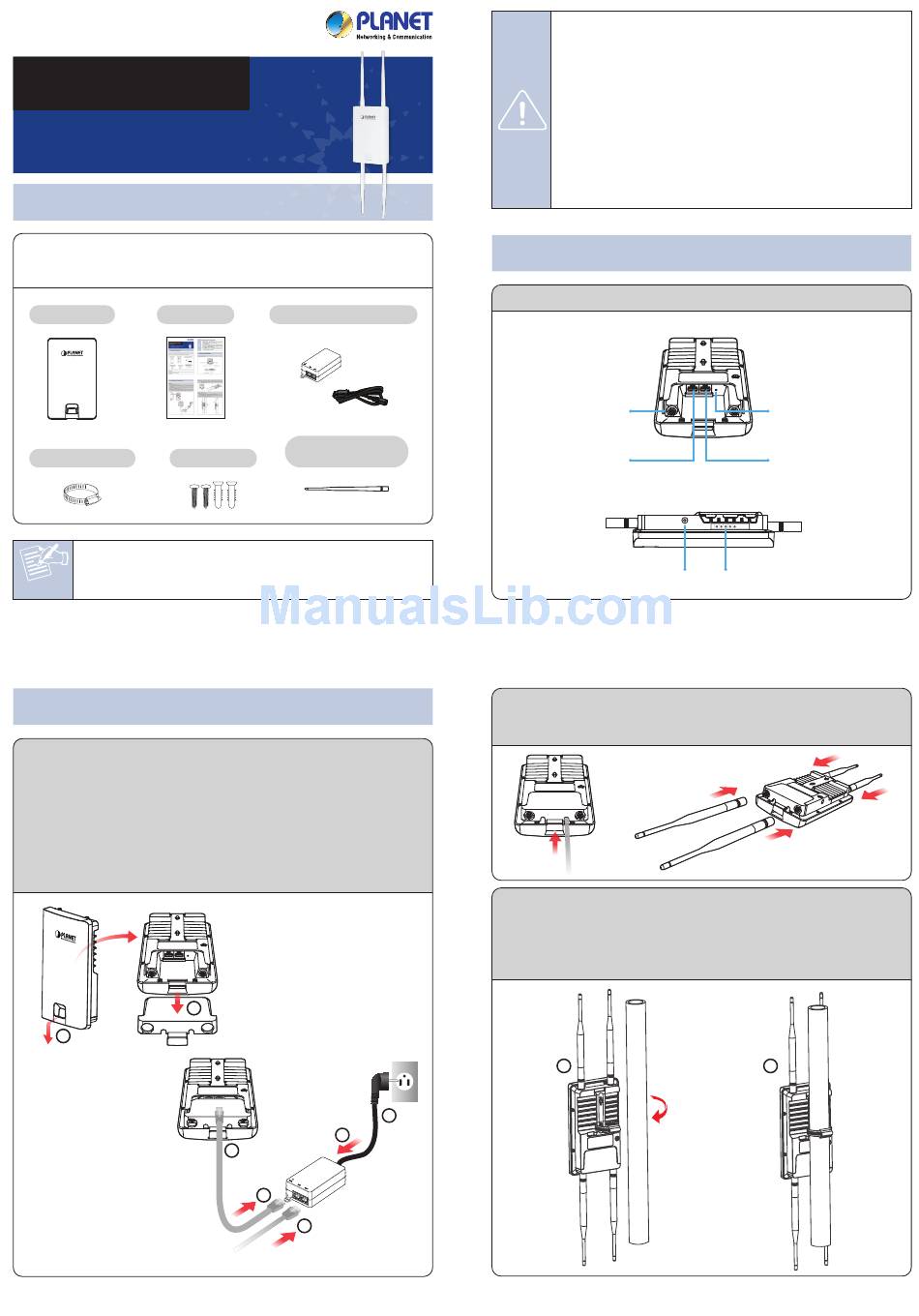

3. Hardware Installation

Step 1:
(1) Remove the bottom cover.
(2) Connect one end of the Ethernet cable into the LAN (Passive PoE)
port of the device and the other end to the PoE port on the PoE
Injector.
(3) Connect the power cord with the PoE Injector and plug the other
end into an electrical outlet.
(4) Connect the second Ethernet cable into the LAN port of the PoE
Injector and the other end to the Ethernet port on the computer.
1
1
PoE Injector & Power Cord
2.4GHz Antenna x 2
5GHz Antenna x 2
– 1 –
3
2
2
4
To PC
– 3 –
2. Physical Introduction
Hardware Description
RP-SMA Connector
Step 2: Place the bottom cover back into the device and attach the
antennas onto the antenna connectors of the device to finish
the installation.
Step 3: Pole Mounting
(1) Thread the open end of the mounting ring through the tab on the
pole mounting bracket on the back of the device.
(2) Lock and tighten the mounting ring to secure the mounting bracket
to the pole to finish the installation.
3
IMPORTANT SAFETY PRECAUTIONS:
1. LIVES MAY BE AT RISK! Please be aware of the
electrical wires around. Carefully read the section
"OUTDOOR INSTALLATION WARNING" in the manual
before installation.
2. Users MUST complete grounding wired with the device;
otherwise, a sudden lightning could cause fatal damage
to the device. EMD (Lightning) DAMAGE IS NOT
COVERED UNDER WARRANTY.
3. Users MUST use the "PoE Injector and Power Cord"
shipped in the box with the device. Use of other options
will cause damage to the device.
LAN2
Grounding Terminal LEDs
– 2 –
1
– 4 –
Reset Button
LAN1 (Passive PoE)
2
