Jøtul GI 635 DV IPI Installation Manual

GI 635 DV IPI Hearth Guide & Template
This guide is only intended for use on-site as
a quick reference tool. Final installation must
conform to the requirements specified in the
Installation Manual included with each unit
and also available at www.jotul.us.
23 ⁄ "
597
mm
8 ⁄ "
222
mm

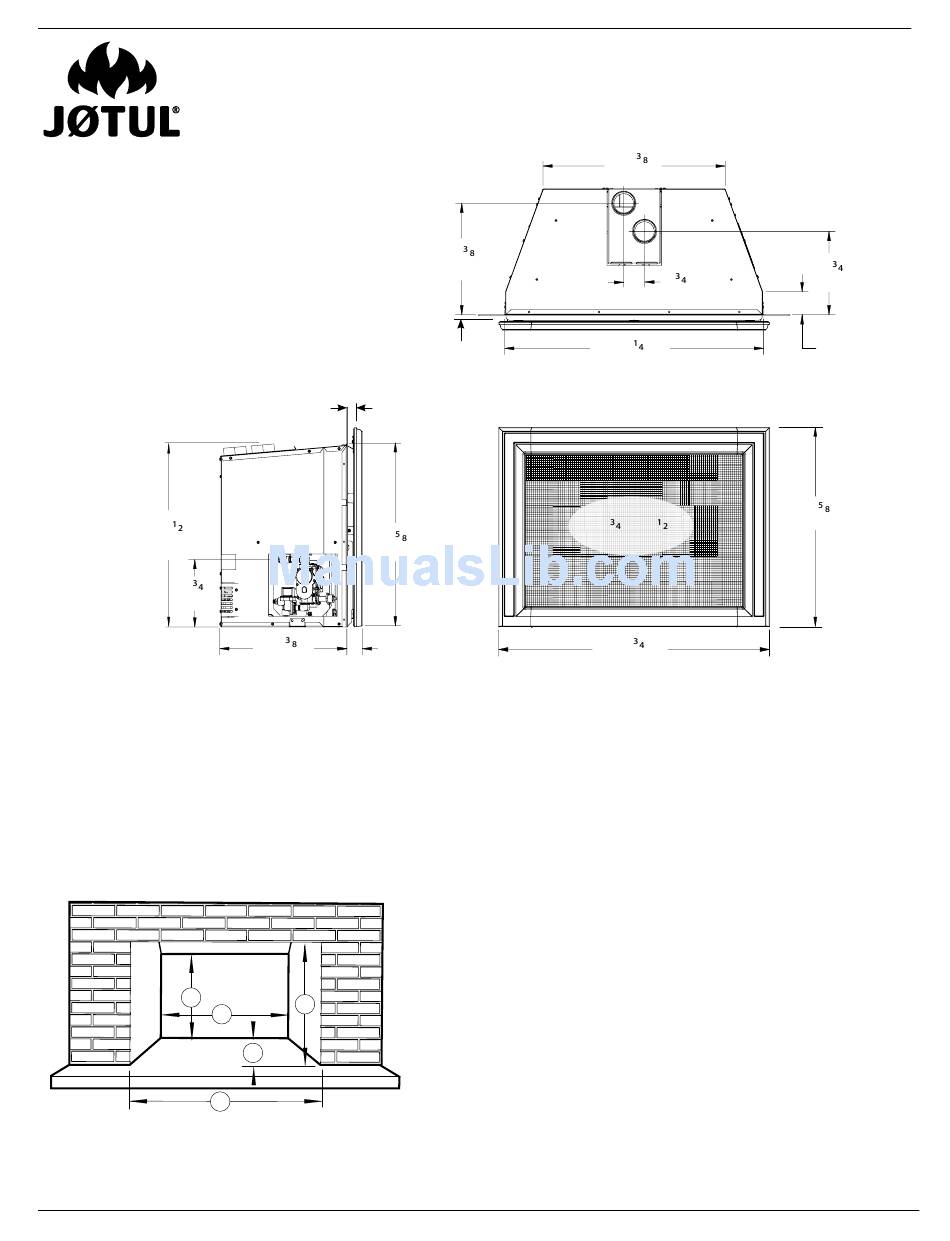

Fig. 1.

Minimum Fireplace Dimensions

A - Inside Height =24" (610mm)
B - Inside Width = 23 1/2" (597mm) at 16 1/2" of depth
C - Inside Depth = 16 1/2" (420mm)
D - Opening Height = 24" (610mm)
E - Opening Width = 33 3/4" (857mm)
A
B
E
Fig. 2.
Fireplace Insert Specifications for the
GI 635 DV IPI
Backer Plate
Fireplace Front
Min. 3/4" (19mm)
Backer Plate Air Space -
or
DO NOT RESTRICT
Fireplace Front
Gas Inlet
23 ⁄ "
C L
600
mm
16 ⁄ " 2"
416 51
mm mm
D
C
Air Inlet
C L
14 ⁄ "
365
mm
or
Min. 3/4" (19mm)
Air Space - DO NOT RESTRICT
Cast Iron Overlay
Glass Viewing Area
27 ⁄ " x 19 ⁄ "
705
Maximum Fireplace Opening
Cast Iron Overlay:
Will cover a maximum fireplace opening
25 3/8" high x 34 1/2" wide. (645mm x 876mm)
NOTE: If a Backer Plate will not be used, Backerless Overlay Hanger
Kit 157802 must be installed on the insert firebox in order to attach the
Overlay assembly.
Backer Plate Options
The Backer Plate functions to neatly cover the fireplace opening be-
tween the insert shell and the fireplace walls.
Standard Backer Plates are fabricated of 12 gauge, aluminized steel,
finished in high-temperature Matte Black powder coating.
Trimmable Backer Plates are fabricated of 22 ga. aluminized steel fin-
ished in Matte Black paint.
Choose an overall size that is at least 1 inch larger than your fireplace
opening.
157799 3-Sided Backer Plate -28 1/4"H x 40"W
157800 3-Sided Backer Plate - 31"H x 42" W
157801 3-Sided Backer Plate - 34"H x 46"W
157826 3-Sided Trimmable Backer Plate - 38"H x 47 3/4"W
157827 4-Sided Trimmable Backer Plate - 38 5/8"H x 47 3/4"W
Intended for flush-faced fireplace installations.
23 ⁄ "
594
mm
2 ⁄ "
70
mm
33 ⁄ "
845
mm
x 495
mm mm
34 ⁄ "
883
mm
Exhaust
Outlet
C L
10 ⁄ "
273
mm
3"
76
mm
25 ⁄ "
651
mm
