Samson S12 Specifications

2

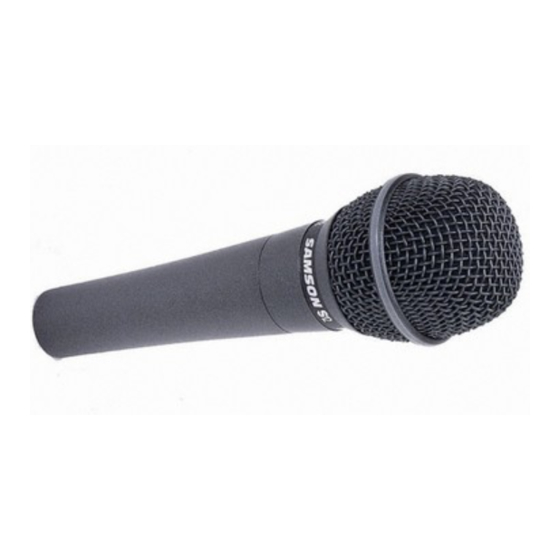

Congratulations on purchasing the Samson S12
Hyper-Cardioid Neodymium Microphone! This
professional quality dynamic mic is specially
designed for use in live performance and public
address environments where unwanted ambient
sound is occurring from many different directions.
Its hyper-cardioid pattern ensures maximum
rejection of these signals (thus minimizing feedback
problems) while delivering a strong, crisp signal
from the audio source directly in front of the mic
capsule. The S12 is particularly well-suited for use
with Samson wireless systems.
In this manual, you'll find a more detailed descrip-
tion of the features of your S12 microphone, as well
as instructions for using your S12, and full specifica-
tions. You'll also find a warranty card enclosed—
don't forget to fill it out and mail it in! This will
enable you to receive online technical support and
will allow us to send you updated information about
other Samson products in the future.
SPECIAL NOTE: Should your S12 ever require
servicing, a Return Authorization number (RA) is
necessary. Without this number, the microphone will
not be accepted. Please call Samson at
(516) 364-2244 for a Return Authorization number
prior to shipping your microphone. Please retain the
original packing material and, if possible, return the
S12 in its original carton and packing materials.
A • B
Span range : ___
SAMSON
10
5
Measuring Obj.; 0
0
S-12
-5 -10
-20
-10
-15 -30
Date; 4/26/95
-20 -40
LC-056 dB 20
SAMSON
B Ref. 0dB Level : ___dB 0
50 100 200
SAMSON
Features
The Samson S12 utilizes state-of-the-art
microphone technology. Here are some of its
main features:
• Rugged dynamic capsule enables the S12 to
be used with high sound pressure level signals
(such as drums and amplified instruments) and
ensures reliable performance in even the most
demanding environments.
• High energy rare earth Neodymium magnet
provides 6 dB of noiseless gain.
• Hyper-cardioid pattern minimizes feedback
problems and effectively rejects signals not
originating directly in front of the mic capsule.
• Full range frequency response allows natural
reproduction of all audio sources.
• Low impedance output enables the S12 to
send strong, full bandwidth signal over long
cable runs.
• Lightweight and compact, the S12 can be
mounted on any standard microphone stand
(using the included mic clip) or can be easily
handheld for long periods without inducing
fatigue.
SAMSON
Writing Speed : ____sec. 0.5 Paper Speed :____mm/sec.
500 2000
1000
FREQUENCY Hz
10
LINEAR
1.0
0.8
0.6
0.4
0.2
0
(Hz)
5000 10000 20000 V
S / N
®
