Samson Q9U Owner's Manual

Dynamic broadcast microphone
Hide thumbs

Advertisement

Table of Contents

Owner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Samson Q9U

Summary of Contents for Samson Q9U

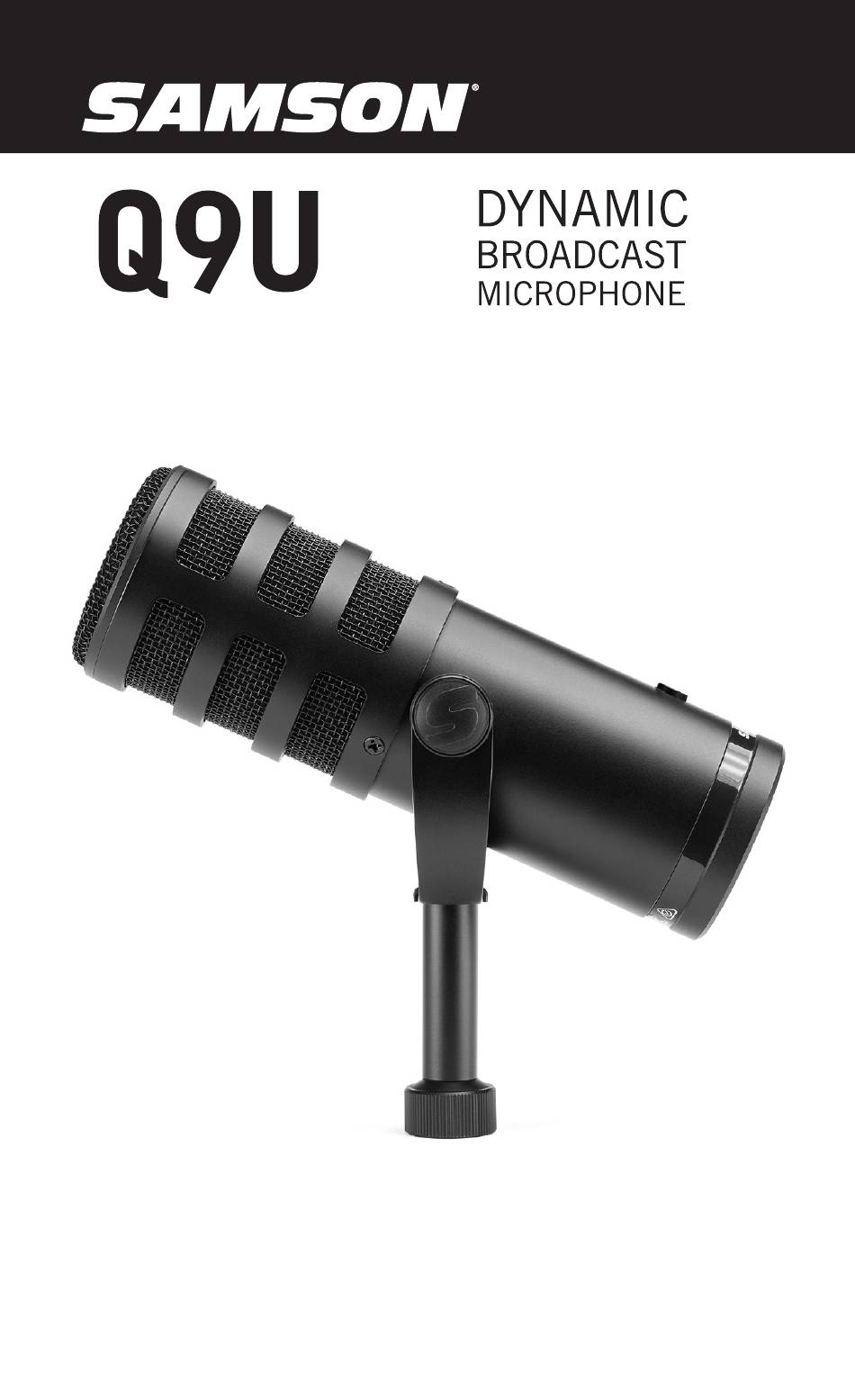

  • Page 1 Owner's Manual...
  • Page 2 In these pages, you’ll find a detailed description of the features of the Q9U, as well as step-by-step instructions for its setup and use. If your microphone was purchased in the United States, you’ll also find a registration card enclosed—...

  • Page 3: Add On Accessories

    Samson TOURtek Pro Cables - XLR Mic cables • Samson MBA series - boom arms for tablemounting • Samson MD5 - mini round base stand for desktop • Samson BL3/BT4 - tripod base boom type mic stand • Samson PS01 - Pop filter •...
  • Page 4 Integral Stand Mount – This swivel style yoke mount was designed for ease of use considering the requirements of broadcast, vlogging, and voice over applications. The Q9U can be mounted to all types of stands that have a standard mic thread by turning the knurled knob.
  • Page 5 Studio headphones, or Studio Monitor Speakers. USB Connection – C size USB connector for interfacing with your Windows or Mac computer. NOTE: if using a smartphone or tablet a powered USB hub is required for the Q9U to function properly. Owner’s Manual...
  • Page 6 Connect headphones to the Headphone output located at the end of the microphone body. Plug the included USB cable into the Q9U and plug the other end of the cable into an available USB port on your computer Set the Q9U as the input and output audio device by following the steps in the section “Windows &...

  • Page 7: Windows Setup

    Connect the Q9U to the computer using the included USB cable. From the Start Menu, open Settings - System - Sounds. Under Input and Output select the Samson Q9U as the audio device. While playing music adjust the Master volume until the headphone output is...

  • Page 8: Macos Setup

    Select the Sound preference icon, choose the Input tab and select Samson Q9U. Set the Q9U as the output device by clicking the Output tab and selecting Samson Q9U. To set the sample rate, from the Applications folder, open the Utilities folder and open Audio MIDI Setup.
  • Page 9 Quick Start - Connect to a Mixer Follow this simple quick start to connect your Q9U to a mixer or interface. Mount the Q9U on your microphone stand according to your desired application. Connect to the mixer or interface using a standard XLR cable.

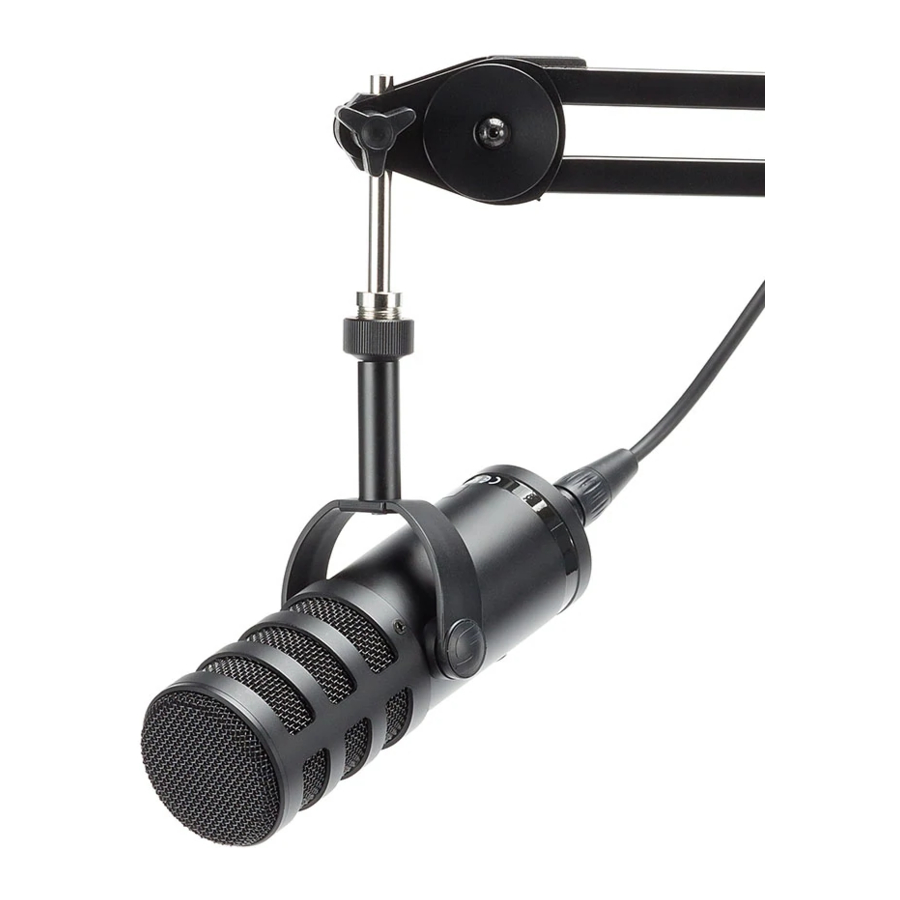

  • Page 10 Mic Stand & Windscreen Installation Illustrations below depict mounting the Q9U to a boom arm (Samson MBA38) as well as installation of the foam windscreen accessory. We suggest using the windscreen for spoken word and other vocal applications as it will help eliminate plosive sounds from words with hard “P”...
  • Page 11 Quick Start - Microphone Placement Careful attention should be made in regards to microphone placement when miking instrumentalists, vocalists, and other sound sources. We suggest that the microphone be placed directly in front of the performer at a distance of 4-12 inches. This will help focus the mic’s pickup of the vocal performance while blocking out unwanted background noise.

  • Page 12: Specifications

    Mute button, Low Cut switch, Mid switch Body Construction/Grille Zinc Alloy/Steel Accessories 2m USB-C to USB-C cable, USB-C to USB-A cable, foam windscreen Product Dimensions 3.12” x 7.02” diameter (79.5mm x 178.5mm diameter) Product Weight 2.13lb (.97kg) Q9U • XLR/USB USB Dynamic Microphone...

  • Page 13: Important Safety Information

    Important Safety Information Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 14 Having Trouble with your Q9U? We can help! CONTACT OUR SUPPORT TEAM: support@samsontech.com Our experts can help you resolve any issues. Follow us: @samson @samson_technologies @samsontech Samson Technologies Corp. Copyright 2020, Samson Technologies Corp. v1.1 278-B Duffy Ave Hicksville, New York 11801 Phone: 1-800-3-SAMSON (1-800-372-6766) www.samsontech.com...
