Getting started

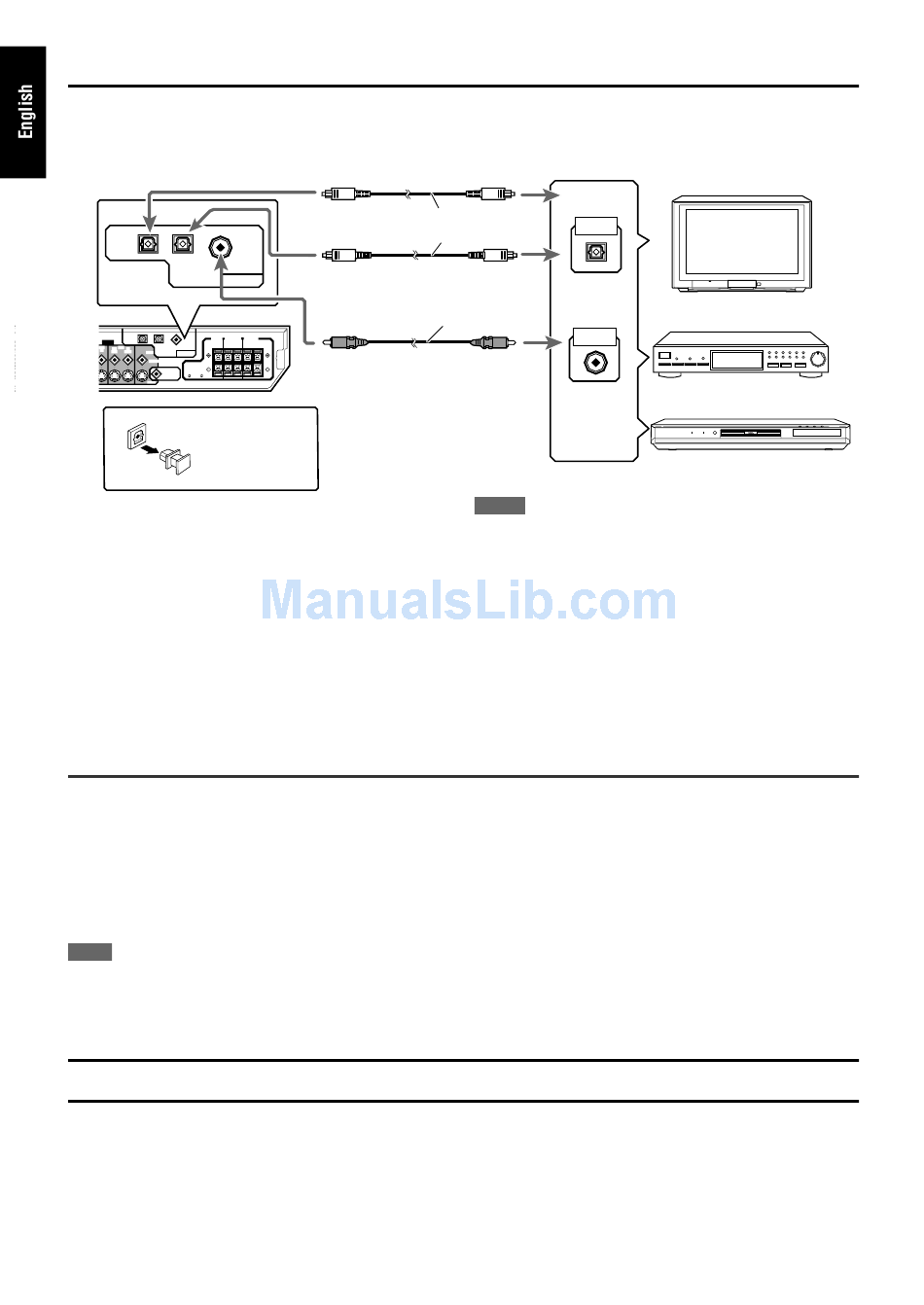

Digital connection
DIGITAL 3
(TV)
DIGITAL 2 (STB)
FRONT
DIGITAL 3
DVD IN DBS IN MONITOR OUT DIGITAL 1
L
(TV) (DVD)
VIDEO
Y
DVD DBS VCR
OUT IN
IN IN
CENTER (REC) (PLAY)
VIDEO
DIGITAL IN
DIGITAL 2 (DBS)
P B
MONITOR OUT
CAUTION:
SPEAKER
IMPEDANCE
P R SUBWOOFER
8 ~ 16
OUT
SURR (REAR)
COMPONENT VIDEO S-VIDEO
HT LEFT

Connecting the power cord

Before plugging the power cord into an AC outlet, make sure that all connections have been made.
Plug the power cord into an AC outlet.
Keep the power cord away from the connecting cables and the antenna. The power cord may cause noise or screen interference.
We recommend that you use a coaxial cable to connect the antenna, since it is well-shielded against interference.
NOTE
The preset settings such as preset channels and sound adjustment may be erased in a few days in the following cases:
– When you unplug the power cord.
– When a power failure occurs.
CAUTIONS:
• Do not touch the power cord with wet hands.
• Do not pull on the power cord to unplug the cord. When unplugging the cord, always grasp the plug so as not to damage the cord.
10
Digital optical cord (not supplied)
DIGITAL 1
(DVD)
DIGITAL IN
Digital coaxial cord
(supplied: 1 cable)
CENTER SURROUND FRONT
SPEAKER SPEAKERS SPEAKERS
RIGHT LEFT RIGHT LEFT
Before connecting
an optical digital
cord, unplug the
protective plug.
OPTICAL
DIGITAL OUT
COAXIAL
DIGITAL OUT
NOTES
• When shipped from the factory, the DIGITAL IN terminals have
been set for use with the following components:
– DIGITAL 1 (coaxial): For DVD player
– DIGITAL 2 (optical): For DBS tuner
– DIGITAL 3 (optical): For TV tuner
If you connect other components, change the digital input (DIGITAL
IN) terminal setting correctly. See "Setting the digital input (DIGITAL
IN) terminals—DIGITAL IN" on page 19.
• Select the correct digital input mode.
See "Selecting the analog or digital input mode" on page 11.
TV
DBS tuner
DVD Player
