Related Manuals for Mira Jump 96Va
Summary of Contents for Mira Jump 96Va

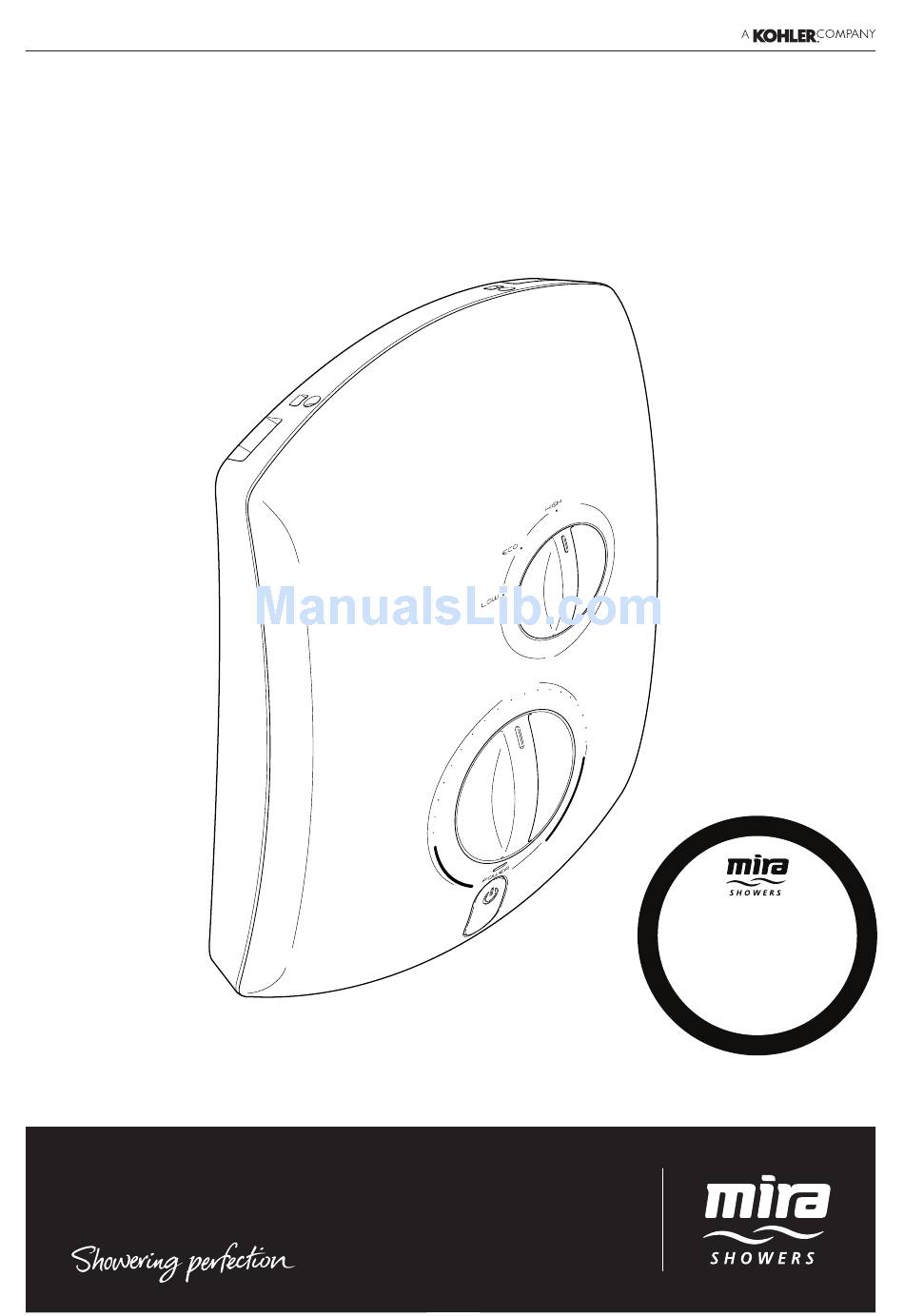

- Page 1 Mira Jump 8.5, 9.5, & 10.8 kW For SPARES, ADVICE or REPAIRS Please call us on 0844 571 5000 (UK Only) These instructions must be left with the user Installation and User Guide...
- Page 2 Guarantee The Mira Jump has been designed for domestic use only, Mira Showers guarantee the Mira Jump against any defect in materials or workmanship for a period of two years from the date of purchase (shower fittings for one year).
-
Page 3: Important Safety Information
9. DO NOT perform any unspecified modifications to the shower or its accessories. When servicing only use genuine Kohler Mira replacement parts. 10. If the shower is dismantled during installation or servicing then upon completion the product must be inspected to ensure all electrical connections are tight and that there are no leaks. -
Page 4: Pack Contents
Tick the appropriate boxes to familiarise yourself with the part names and to confirm that the parts are included. 1 x Blank Insert 1 x Mira Jump Electric Shower 1 x Insert RH 1 x Insert LH Documentation 1 x Installation Guide... -
Page 5: Wiring Diagram
WIRING DIAGRAM BLUE A BROWN E GREEN F BROWN B BLUE A BLUE D GREEN N... -
Page 6: Specifications
2006/95/EC Low Voltage Directive, 2004/108/EC EMC Directive. The Mira Jump range of showers are high power appliances and are subject to conditional connection. If the main electrical supply fuse is rated less than 80 Amps, the local electricity supply company must be contacted to confirm if the electrical supply is adequate. -
Page 7: Installation Requirements
INSTALLATION REQUIREMENTS Please read the Important Safety Information and specifications sections at the front of this guide, and the requirements detailed in this section before installing the shower. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: Plumbing The plumbing installation must comply with all national or local water regulations and all relevant building regulations, or any particular regulation or practice... - Page 8 15. A full bore/non restrictive servicing valve must be fitted in a readily accessible position adjacent to the shower to facilitate maintenance of the shower. DO NOT use a valve with a loose washer plate (jumper) as this can lead to a build up of static pressure.
- Page 9 WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: Electrical The electrical installation must comply with BS 7671 (commonly referred to as the IEE Wiring Regulations) and all relevant building regulations, or any particular regulation or practice specified by the local electricity supply company. Ensure that all circuit protection devices, switches and cabling is adequate for the rated current of the shower and that the rating of the electricity supply company fuse and the consumer unit are adequate for the additional demand.
-
Page 10: Installation
220 mm 55 mm Fig 1.1 Check the existing installation is positioned according to the dimensions specified in the diagram above. The Mira Jump shower can replace showers of the approximate shape and size of those shown. Right Side Left Side... - Page 11 Isolate the electrical and water Retaining Screws supplies. Disconnect and remove the old shower from the wall. Remove the cover and service tunnels from the Mira Jump. Cover Service Keep the retaining screws (x3) Retaining Tunnel Screw for later use.
- Page 12 Important! Prior to product installation this installation template must be used in conjunction with the Mira Jump or Mira Move Installation and User Guide (IUG) to make sure that key installation and operation actions are followed. Live &...
- Page 13 Adjustment For Right Hand Entry Electrical Supply Isolate the electrical and water supplies. Unscrew the terminal block retaining screw. Carefully lift the terminal block from its location on the left of the case and remove the retaining screw. Taking care not to damage the wires, reposition the terminal block and the splashguard to the location on the right hand side of...
- Page 14 Connecting Electricity and Water Supplies Flush the inlet water pipe through to clear any debris. Inlet Connector Connect the inlet supply pipe to the Compression Nut shower inlet using a 1/2” BSP nipple Olive with compression nuts and olives (as shown) or a push-fit connector. 1/2’’...
- Page 15 If necessary, fit an earth bonding Retaining Screws clamp to the supply pipe. Make sure the bonding complies with the relevant regulations in force at the time of installation. Turn on the water supply and check for any leaks. Refit the service tunnel and the required insert.
- Page 16 COMMISSIONING Caution! If you are unsure how electric showers work, please read the Operation section before continuing. Turn the temperature control fully anticlockwise to cold and the heater control to “LOW”. Switch on the electrical supply at the double pole switch. The power light will indicate electricity is being supplied to the shower.
- Page 17 The Effect of Seasonal Changes * * * For a cold shower select Low. For a summer warm shower select Eco. For a winter warm shower select High. During extremes of mains water supply temperature, adjust heater setting to obtain a better showering temperature.
-
Page 18: Operation
DO NOT connect the outlet of the shower to any tap, control valve, trigger handset or showerhead other than those specified for use with this shower. Only Kohler Mira recommended accessories should be used. - Page 19 Operating Instructions Turn the shower on Switch on the electrical supply at the double pole switch. The power light is illuminated. Turn the shower on by pressing the start/stop button. Select heater setting Turn the heater control to High. Allow 15-20 seconds for warm water to reach the handset.
-
Page 20: Fault Diagnosis
FAULT DIAGNOSIS The troubleshooting information tabled below gives you details on probable causes and remedies should difficulties be encountered whilst the shower is in operation. Warning! There are no user serviceable components beneath the cover of the appliance. ONLY A COMPETENT TRADESPERSON SHOULD Remove THE FRONT COVER! Malfunction Probable Cause Possible Remedy... - Page 21 The handset sprayplate is Remove and clean the handset blocked. sprayplate (see User Maintenance). If the fault persists, contact Kohler Mira Customer Services. No water or very low The handset sprayplate and/or Clean the handset sprayplate (see User flow rate.
- Page 22 Clean the inlet filter (see Servicing). The inlet filter is blocked. Renew the fuse or reset the MCB/RCD. The fuse is blown or the If the fault persists, contact Kohler Mira MCB/RCD has been tripped, Customer Services to help diagnose indicating a possible electrical the fault and replace any parts as fault;...
-
Page 23: User Maintenance
USER MAINTENANCE WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: There are no user serviceable DO NOT use the showerhead to parts inside the shower. Only clean the shower. qualified, competent personnel If the shower is not to be used for should Remove the front cover, a long period, the electrical supply mains connections are exposed... - Page 24 SERVICING WARNING There are no user serviceable parts inside the shower. Servicing of the shower must only be carried out by qualified, competent personnel following the instructions provided in this guide and those provided with any spare part. Before replacing any parts, ensure that the underlying cause of the malfunction has been resolved.
- Page 25 SPARE PARTS...
- Page 26 SPARE PARTS Spare Parts List 416.41 Thermal Switch 416.51 Solenoid Coil 439.88 Seal Pack (components identified ‘C’) 1693.307 Cover Assembly - White/Chrome 1693.310 Service Tunnel & Inserts Pack - White 1693.312 Service Inserts Pack - White 1693.314 Heater Tank Assembly 8.5kW 1693.315 Heater Tank Assembly 9.5kW 1693.316...
-
Page 27: Spare Parts Diagram
Spare Parts Diagram 1693.321 1693.314 1693.322 1693.315 1693.334 416.51 416.41 1693.334 1693.317 1693.314 1693.318 1693.315 1693.316 1693.307 1693.320 1693.328 1693.363 1693.319 1693.310 1693.311 1693.321 1693.312 1693.326 Important Note! Push-fit connectors must be assembled back to back onto terminals of micro-switches. A minimum air gap of 4mm must be maintained between the connectors after assembly. - Page 28 The product must be installed and maintained in Spares and Accessories - We hold the largest accordance with the instructions given in this user stocks of genuine Mira spares and accessories. guide. Contact us for a price or visit our website to...
