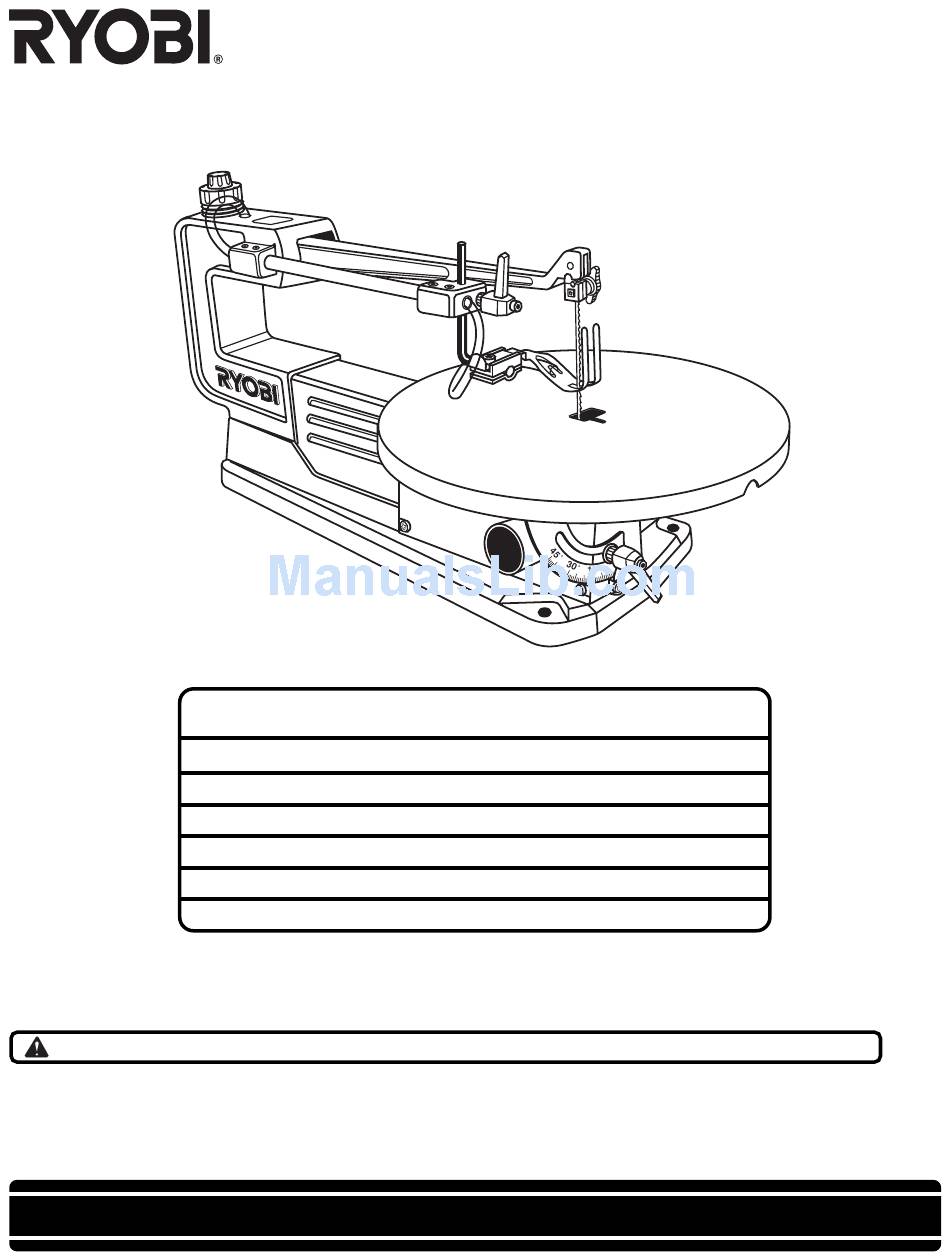

Ryobi SC155VS Operator's Manual

16 in. (406 mm) scroll saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

THANK YOU FOR BUYING A RYOBI SCROLL SAW.
Your new scroll saw has been engineered and manufactured to Ryobi's high standard for dependability, ease of operation,
and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
CAUTION: Carefully read through this entire operator's manual before using your new scroll saw.
Pay close attention to the Rules for Safe Operation, Warnings, and Cautions. If you use your scroll saw properly and only
for what it is intended, you will enjoy years of safe, reliable service.
Please fill out and return the Warranty Registration Card so that we can be of future service to you.
Thank you again for buying Ryobi tools.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
16 in. (406 mm) Scroll Saw
Model SC155VS

SPECIFICATIONS:

Throat
Blade Length
Motor Rating
No Load Speed
Amperes
Net Weight
16 in. (406 mm)
5 in. (127 mm) plain or pin
120 volts, 60 Hz, AC
400 – 1550 Strokes Per Minute
1.2 Amperes
32 lbs. (14 kg.)

Advertisement

Table of Contents
loading

Related Manuals for Ryobi SC155VS

Summary of Contents for Ryobi SC155VS

  • Page 1: Specifications

    THANK YOU FOR BUYING A RYOBI SCROLL SAW. Your new scroll saw has been engineered and manufactured to Ryobi's high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

  • Page 2: Table Of Contents

    We recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields, FORESIGHT IS BETTER available at your local Ryobi dealer. THAN NO SIGHT TABLE OF CONTENTS...

  • Page 3: Rules For Safe Operation

    Servicing requires extreme care and knowledge of the system and should be performed only by a qualified service technician. For service we suggest you return the tool to your nearest Ryobi Authorized Service Center. When servicing always use identical Ryobi replacement parts.
  • Page 4 Check for alignment of moving parts, binding of moving parts, breakage of parts, saw stability, mounting and any other conditions that may affect its operation. A guard or other part that is damaged must be properly repaired or replaced by a qualified...

  • Page 5: Rules For Safe Operation

    REPLACEMENT PARTS. All repairs, whether electrical or mechanical, should be made by qualified service technician at a authorized service center. When servicing use only identical Ryobi replacement parts. Use of any other parts may create a hazard or cause product damage.

  • Page 6: Electrical

    60 Hz, AC only (normal household current). Do not operate this tool on direct current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If the saw does not operate when plugged into an outlet, double check the power supply. ELECTRICAL...

  • Page 7: Glossary And Product Specifications

    As it applies to the workpiece, that area which will be, or has been, cut by the blade. The distance that the tip of the saw blade tooth is bent (or set) outward from the face of the blade.

  • Page 8: Unpacking And Tools Needed

    Carefully lift saw from the carton and place it on a level work surface. Remove pack of 4 extra blades and operator's manual from the carton.

  • Page 9: Features

    Your scroll saw has an easy access ON/OFF knob with variable speed. Pull the knob out to turn ON the saw, and push the knob in to turn OFF the saw. Turn the knob to adjust the speed from the high speed of approximately 1550 SPM (Strokes Per Minute) to the low speed of approximately 400 SPM.

  • Page 10: Assembly

    MOUNTING SCROLL SAW TO WORKBENCH See Figure 5. If the scroll saw is to be used in a permanent application, we recommend that you secure it in a permanent location such as a workbench. When mounting the saw to a workbench, holes should be drilled through the supporting surface of the workbench using dimensions illustrated.

  • Page 11: Adjustments

    CLAMPING SCROLL SAW TO WORKBENCH See Figure 6. If the scroll saw is to be used in a portable application, we recommend that you fasten it permanently to a mounting board that can easily be clamped to a workbench or other supporting surface.
  • Page 12 Engage the pin into the "V" notch of the lower blade holder. See Figure 10. Pull up on the blade and push down on the saw arm to engage the upper pin in the "V" notch of the upper blade holder.
  • Page 13 Secure in place with upper blade knob. Place new blade through the opening in the table with the teeth of the blade to the front of the saw and pointing down toward the table. Next, place blade in the lower blade holder into the slot that enlarges as you loosen the blade knob.
  • Page 14 Failure to unplug your saw could result in accidental starting causing possible serious personal injury. Tension adjusting knob is on the top of the saw. See Figure 17. Rotate the quick release knob (outer, larger knob) 1/4 turn to the left or counterclockwise to release blade tension.

  • Page 15: Operation

    Your scroll saw has an easy access On/Off knob with variable speed. Pull the knob out to turn ON the saw, and push the knob in to turn OFF the saw. Note: After saw is turned on, a hesitation before blade movement is normal.
  • Page 16 INTERIOR SCROLL CUTTING See Figure 20. One of the features of a scroll saw is that it can be used to make scroll cuts on the interior of a board without breaking or cutting through the edge or perimeter of the board.
  • Page 17 5 inch long blades of either the pin end or the plain end style. The blade width and thickness and the number of teeth per inch to use are determined by the type of material and the size of the radius being cut. A full selection of scroll saw blades are available at your local Ryobi dealer.

  • Page 18: Maintenance

    • Unplug the saw. WHEN BACKING OUT OF THE WORKPIECE, THE BLADE MAY BIND IN THE KERF (CUT). THIS IS WARNING: When servicing, use only identical Ryobi replacement parts. Use of any other part may create a hazard or cause product damage. WARNING:...

  • Page 19: Troubleshooting

    (eraser end of pencil, etc.) to push the brush into the tube until it stays. WARNING: For your own safety, turn switch OFF and remove plug from power outlet before adjusting or aligning your scroll saw. PROBLEM Motor will not run.

  • Page 20: Exploded View And Repair Parts List

    RYOBI 16 in. SCROLL SAW – MODEL NUMBER SC155VS FIGURE A...
  • Page 21 RYOBI 16 in. SCROLL SAW – MODEL NUMBER SC155VS The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your SCROLL SAW or when ordering repair parts. SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS...
  • Page 22 RYOBI 16 in. SCROLL SAW – MODEL NUMBER SC155VS FIGURE B...
  • Page 23 RYOBI 16 in. SCROLL SAW – MODEL NUMBER SC155VS The model number will be found on a plate attached to the base. Always mention the model number in all correspondence regarding your SCROLL SAW or when ordering repair parts. SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS...

  • Page 24: Parts Ordering / Service

    Now that you have purchased your tool, should a need ever exist for repair parts or service, simply contact your nearest Ryobi Authorized Service Center. Be sure to provide all pertinent facts when you call or visit. Please refer to the Service Center insert or call 1-800- 525-2579 in the United States or 1-800-265-6778 in Canada for your nearest Authorized Service Center.
