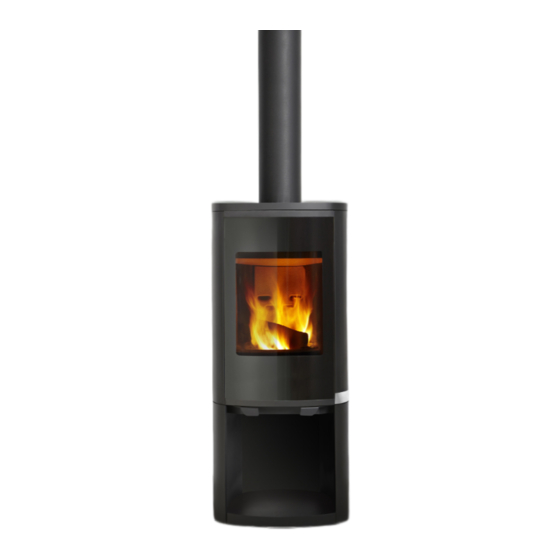

- Page 1 CURVE Series Wood Appliances Owner’s Manual Installation and Operation Heat & Glo 7076-108F • February 7, 2018...
-
Page 2: Curve Series
Curve Series and Welcome to the Heat & Glo Family Hearth & Home Technologies welcomes you to our tradition our appliances, inserts and fireplaces. And yet we are old- of excellence! In choosing a Heat & Glo appliance, you have fashioned when it comes to craftsmanship. -
Page 3: Table Of Contents
Curve Series Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. - Page 4 Curve Series Technical Data CURVE 100S-HS, CURVE 300S-HS, and CURVE 300G-HS Curve Series Wood Appliances CURVE-100S-HS CURVE-300S-HS and CURVE-300G-HS Energy Efficiency Class: A Direct Heat Output: 8,7 kW Energy Efficiency Index: 96.72 Energy Efficiency at Nominal: 73,6% Energy Efficiency at Minimum: N.A.
-
Page 5: Technical Data
Curve Series Technical data and dimensions A. Installation The house owner is responsible for ensuring that all Materials: steel plate, cast iron, galvanized sheet, skamol necessary national and local safety measures are observed Maximum Wood Length 25 cm during installation and fitting and also responsible for ob- Weight Curve 100 ca. -
Page 6: Installation & Assembly
Curve Series Installation & Assembly A. Positioning Your Wood Burning Appliance bolts. Knock out the panel on the back panel so the flue The wood burning appliance must be set up so the appli- attachment ring can slip through it. Attach the back panel ance, flue connection, flue pipe, and chimney system can back onto the appliance using the same fasteners. -
Page 7: Leveling The Appliance
Curve Series D. Leveling the Appliance I. Removal of Curve from Pallet Four leveling bolts have come installed on the appliance. Remove the two 11 mm bolts holding the brackets in Following installation, adjustments can be made to the heights of the four bolts from the top of the base pan. Use the front and rear of the base on the appliance, this a hex head bit to adjust the height of each of the four legs. -
Page 8: Dimensions & Clearances
Curve Series Dimensions & Clearances Curve 100 Heat & Glo 7076-108F • February 7, 2018... - Page 9 Curve Series Curve 300 Heat & Glo 7076-108F • February 7, 2018...
-
Page 10: Operation
Curve Series Operation A. General Use D. Fuels The Curve 100 Wood Appliance is designed and tested The Curve 100 wood appliance is designed to burn a for intermittent use. This means that it is not designed for wide range of firewood species. In general hardwoods or recommended to burn continuously for 24 hours. - Page 11 Curve Series Figure 01 Proper Fill and Startup Configuration Lower intake holes Add paper to back of firepot making sure to not block lower air inlet with paper Add small pieces of wood on top of paper allowing for air flow between pieces Secondary Holes Add larger log on top of pile making sure it does not go above the upper intake holes Fig.
-
Page 12: Primary Air
Curve Series E. Primary Air G. Secondary Air (Lower Air Control) (Fig. 11.1) This appliance is equipped with a secondary combustion The primary air is controlled by the lever on the left side system that cannot be regulated. The purpose of this sec- of the appliance. -
Page 13: Side Door Handle Operation
Curve Series I. Side Door Handle Operation this material is a high quality material specifically designed for wood burning appliances, it is subject to normal wear (Fig. 12.1) and tear and should be replaced if burn times are reduced To open the front door, pull the lever located on the or there is concern of leakage. -
Page 14: Chimney Systems
Curve Series Chimney Systems A. Chimney Systems B. Drafting A chimney or flue system is required to run your wood Weather and chimney location can affect the draft of your appliance safely and efficiently. When a fire is started in appliance resulting in different performance settings. -
Page 15: Maintenance
Curve Series Maintenance A. Ash Drawer B. Refractory The firebox is lined with molded refractory firebrick. The (Figure 14.1) refractory protects the outside of the appliance and retains Before attempting any maintenance on the appliance the heat necessary for a clean efficient burn. The material ensure that the appliance is cold and has no embers in the is a porous ceramic material that can break from abuse. -
Page 16: Troubleshooting
Curve Series Troubleshooting Smoke escaping • Inferior firewood (waste wood, pallets etc.) • Damp wood • Chimney not drawing sufficiently • Chimney not drawing properly • Vacuum in room • Chimney is not properly dimensioned for the appliance Excessive soot build-up in chimney •... -
Page 17: Warranty
Curve Series Warranty Hearth & Home Technologies Inc. (“HHT”) extends the following warranty for Heat & Glo Curve Series wood appliances WARRANTY COVERAGE AND PERIOD: HHT warrants that your Heat & Glo Curve Series wood appliance will be free from defects in materials and workmanship at the time of manufacture. -
Page 18: Service Parts List
Curve Series Service Parts List CURVE-100S-HS Service Parts Beginning Manufacturing Date: June 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. - Page 19 Curve Series CURVE-300G-HS Service Parts Beginning Manufacturing Date: June 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. ITEM DESCRIPTION COMMENTS...
- Page 20 Curve Series CURVE-300S-HS Service Parts Beginning Manufacturing Date: June 2013 Wood Stove Ending Manufacturing Date: Active IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer or distributor. Hearth and Home Technologies does not sell directly to consumers. Provide model number and serial number when requesting service parts from your dealer or distributor. ITEM DESCRIPTION COMMENTS...
-
Page 21: Homeowner Notes
Curve Series Homeowner Notes Date of Service Performed By Description of Service Heat & Glo 7076-108F • February 7, 2018... - Page 22 Curve Series Date of Service Performed By Description of Service Heat & Glo 7076-108F • February 7, 2018...
- Page 23 Curve Series Date of Service Performed By Description of Service Heat & Glo 7076-108F • February 7, 2018...
- Page 24 CONTACT INFORMATION: Hearth & Home Technologies 20802 Kensington Blvd. Lakeville, MN, 55044, USA www.hearthnhome.com Division of HNI INDUSTRIES We recommend that you record the following pertinent information for your heating appliance Date purchased/installed: Serial Number: Location on appliance: Dealership purchased from: Dealer phone: Notes: This product may be covered by one or more of the following patents: (United States) 5341794, 5263471, 6688302, 7216645,...
