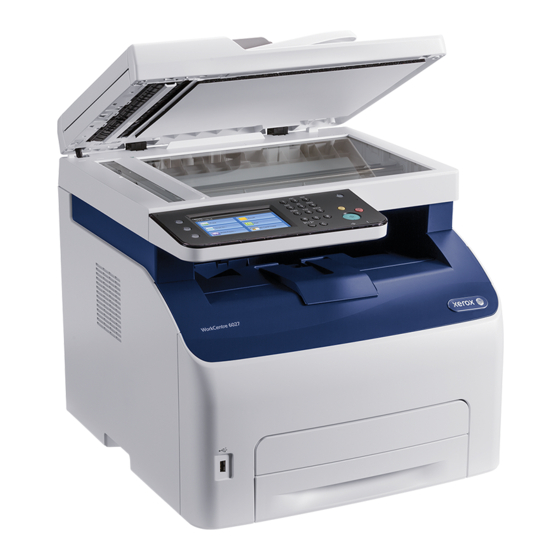

Xerox WorkCentre 6027 Quick Use Manual
Color multifunction printe
Hide thumbs
Also See for WorkCentre 6027:
- User manual (226 pages) ,
- Quick use manual (18 pages) ,
- Installation manual (4 pages)
Related Manuals for Xerox WorkCentre 6027
Summary of Contents for Xerox WorkCentre 6027
-
Page 1: Xerox Workcentre
Xerox WorkCentre 6027 Color Multifunction Printer 6027 Xerox WorkCentre ® ® Quick Use Guide... - Page 2 Printer Tour Scanner 110.5 cm (43.5 in.) 11.4 cm (4.5 in.) 10 cm Exit Tray (3.9 in.) 11.4 cm USB Memory Port (4.5 in.) 76.2 cm (30 in.) Jam Access Cover 86.4 cm Main Tray (34 in.) 10 cm (3.9 in.) Automatic Document Feeder (ADF) Toner Cartridges...
- Page 3 Control Panel Power Saver On/Off Menus Job Controls Touch screen Alphanumeric Keypad Mobile Print LED Services Home displays main services, such as copy, scan, and fax. Clear All clears previous and changed settings for the current service. Job Status displays active, held, and completed jobs. Cancel stops the current job.
- Page 4 CentreWare Internet Services xxx.xxx.xxx.xxx CentreWare Internet Services enables you to access printer configuration details, paper and supplies status, job status, and diagnostic functions over a TCP/IP network. You can also manage fax, email, and network scanning address books. For details on printer administration, see the Features chapter in the User Guide located on your Software and Documentation disc or online.
- Page 5 A5 ........148 x 210 mm B5 ........176 x 250 mm Windows Macintosh Monarch ......3.9 x 7.5 in. No.10......4.1 x 9.5 in. DL ........110 x 220 mm C5 ........162 x 229 mm Select printing options in the Xerox print driver ®...
- Page 6 Basic Printing Windows Macintosh Y > 297 mm (11.7 in.) Custom Confirm or change size and type settings on the control panel. Select printing options in the Xerox print driver. ®...
- Page 7 Printing from USB Flash Drive @:./ PQRS WXYZ Insert USB Flash drive Touch Print from USB Select the file, or select the folder to navigate to the Change the quantity as needed file, then touch OK Change the settings as needed Press Start Clear All clears the programmed job setting.
- Page 8 Basic Copying 60–105 g/m (16–28 lb. Bond) X: 148–216 mm (5.8–8.5 in.) Y: 210–355.6 mm (8.3–14.0 in.) @:./ PQRS WXYZ Press Power Saver if required, then touch Copy Change the quantity as needed Load the original Change the settings as needed Press Start Clear All clears the programmed job setting.
- Page 9 ID Card Copying @:./ PQRS WXYZ Press Start Press Power Saver if required, then touch ID Card Copy Place ID card then close cover Change settings and quantity as needed Flip ID card and press Scan Another Page to include the second side, or touch Done. Print Now Clear All clears the programmed job setting.
- Page 10 Scanning Ethernet WiFi Loading the original 60–105 g/m (16–28 lb. Bond) X: 148–216 mm (5.8–8.5 in.) Y: 210–355.6 mm (8.3–14.0 in.) If the printer is connected using a USB cable, you can scan to a folder on your computer, or import a scan into an application.
- Page 11 Scanning to Email Ethernet WiFi 123,!? Space Press Power Saver if required, then touch Email To type new addresses, touch New Recipient Change the settings as needed Press Start Use the Address Book to enter stored addresses. Clear All clears the programmed job setting. Cancel stops the scanning job.
- Page 12 Scanning to a USB Flash Drive Insert USB Flash drive Change the settings as needed Press Start Touch Scan To, then touch USB Memory Clear All clears the programmed job setting. Cancel stops the scanning job. To select a different location, touch Change Folder...
- Page 13 Scanning to a USB Connected Computer Start Express Scan Manager (Windows: Start > Programs > Xerox, Macintosh: Applications > Xerox), then click OK Press Power Saver if required, touch Scan To, then touch PC or Browse to navigate to another destination folder Clear All clears the programmed job setting.
- Page 14 Scanning to a Shared Folder on a Network Computer Ethernet WiFi Press Power Saver if required, touch Scan To, then touch Network Select the destination folder Change the settings as needed To share a folder, see User Guide > Scanning Press Start Clear All clears the programmed job setting.
- Page 15 Faxing Loading the original 60–105 g/m (16–28 lb. Bond) X: 148–216 mm (5.8–8.5 in.) Y: 210–355.6 mm (8.3–14.0 in.) You can enter fax numbers manually or store them in an address book. To set up an address book see the User Guide >...
- Page 16 Basic Faxing @:./ PQRS WXYZ Press Power Saver if required, then touch Fax Enter fax number Change the settings as needed Press Start É Clear All clears the programmed job setting. Cancel stops the faxing job. Use the Address Book to enter stored addresses.
- Page 17 Paper Jams Jam Access When a jam occurs, the control panel touch screen displays an animated graphic showing how to clear the jam. Also see Clearing Paper Jams in the User Guide for more jam clearing tips and detailed procedures.
- Page 18 EPEAT Environmental Information ®...
- Page 19 Xerox ® and Xerox and Design ® are trademarks of Xerox Corporation in the United States and/or other countries. EPEAT ® is a trademark of EPEAT, Inc. in the United States and other countries.
-
Page 20: Spare Parts
The Xerox Remanufacturing Strategy Xerox is one of the largest, and most successful remanufacturer of office supplies and products in the world. We have well-established methods for collecting and reprocessing spend print/copy cartridges, toner containers, and waste toner from our customers. -
Page 21: Policy Statement On The Use Of Non-Manufacture Cartridges And Containers
Our products do not contain a disabling device intended to prevent the use of non-Xerox cartridges. Some cartridges may contain a chip which enables customer value-added features and functions. The integration of the components also improves customer satisfaction by enabling more comprehensive problem solving.
