Power Supply
„ „ Power Consumption: 15W (max)
24VDC: 10-36VDC (max)
„ „
„ „ 48VDC: 36-59VDC (max)
„ „ HI Voltage AC/DC: 88-300VDC, 85-264VAC (max)
Physical
„ „ Height: 1.74"
„ „ Width: 18.3"
„ „ Depth: 12.4"
„ „ Weight: 5.2kg
Ingress Protection: IP40 (1mm objects)
„ „
„ „ Enclosure: 18 AWG galvanized steel enclosure
„ „ Mounting: DIN rail or panel mounted
Switch Properties
„ „ Switching method: Store & Forward
„ „ Switching latency: 7 µs
Switching bandwidth: 800 Mbps
„ „
„ „ MAC addresses: 4096
„ „ MAC address table size: 32kbytes
„ „ Priority Queues: 4
„ „ Frame buffer memory: 2 Mbit
Simultaneous VLANs: 255
„ „
„ „ VLAN ID Range: 1 to 4096
„ „ IGMP multicast groups: 256
Port rate limiting: 128kbps, 256, 512, 4, 8Mbps
„ „
„ „ No head of line blocking
Approvals
ISO: Designed and manufactured using a ISO9001: 2000
„ „
certified quality program
„ „ CE Marking
Emissions: FCC Part 15 (Class A),
„ „
EN55022 (CISPR22 Class A)
„ „ Safety: cCSAus (Compliant with CSA C22.2 No. 60950,
UL 60950, EN60950)
„ „ Laser Eye Safety (FDA/CDRH): Complies with 21
CFR Chapter1, Subchapter J.
Warranty
„ „ 5 Years-Applicable to design or manufacturing
related product defects.
Network Management
„ „ Web-based graphical HTML
„ „ SNMP v1, v2c, v3
Telnet, VT100
„ „
„ „ Command Line Interface (CLI)

IRIG-B Ports

Input Impedance: greater than 1MΩ
„ „
„ „ Output Impedance: 50Ω
www.RuggedCom.com
Modular 16-Port Serial Device Server with Integrated Managed Ethernet Switch

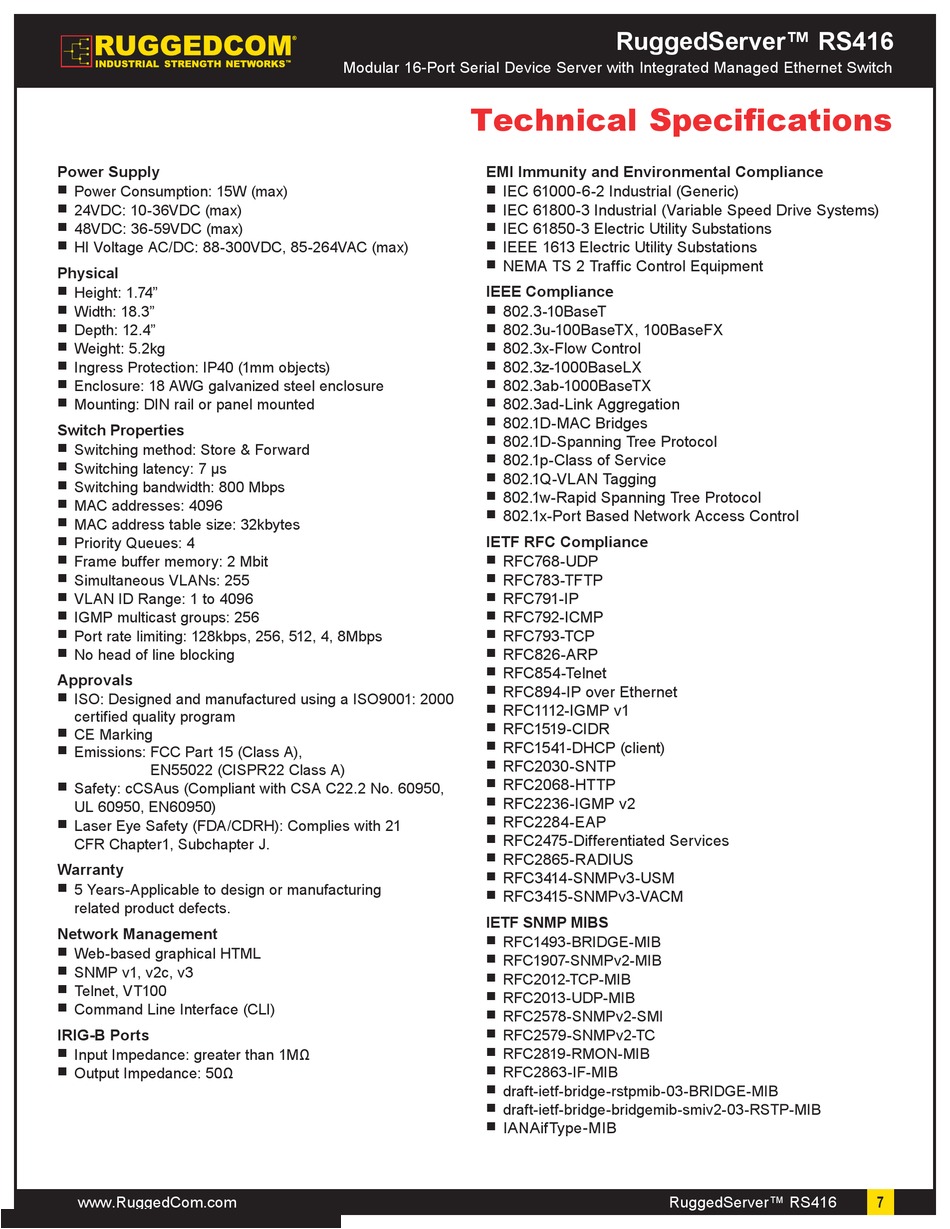

Technical Specifications

EMI Immunity and Environmental Compliance
IEC 61000-6-2 Industrial (Generic)
„ „
IEC 61800-3 Industrial (Variable Speed Drive Systems)
„ „
IEC 61850-3 Electric Utility Substations
„ „
IEEE 1613 Electric Utility Substations
„ „
„ „ NEMA TS 2 Traffic Control Equipment
IEEE Compliance
802.3-10BaseT
„ „
„ „ 802.3u-100BaseTX, 100BaseFX
802.3x-Flow Control
„ „
802.3z-1000BaseLX
„ „
„ „ 802.3ab-1000BaseTX
802.3ad-Link Aggregation
„ „
802.1D-MAC Bridges
„ „
802.1D-Spanning Tree Protocol
„ „
802.1p-Class of Service
„ „
„ „ 802.1Q-VLAN Tagging
802.1w-Rapid Spanning Tree Protocol
„ „
802.1x-Port Based Network Access Control
„ „
IETF RFC Compliance
RFC768-UDP
„ „
RFC783-TFTP
„ „
„ „ RFC791-IP
RFC792-ICMP
„ „
RFC793-TCP
„ „
RFC826-ARP
„ „
RFC854-Telnet
„ „
„ „ RFC894-IP over Ethernet
RFC1112-IGMP v1
„ „
RFC1519-CIDR
„ „
„ „ RFC1541-DHCP (client)
RFC2030-SNTP
„ „
RFC2068-HTTP
„ „
RFC2236-IGMP v2
„ „
RFC2284-EAP
„ „
„ „ RFC2475-Differentiated Services
RFC2865-RADIUS
„ „
RFC3414-SNMPv3-USM
„ „
„ „ RFC3415-SNMPv3-VACM
IETF SNMP MIBS
RFC1493-BRIDGE-MIB
„ „
„ „ RFC1907-SNMPv2-MIB
„ „ RFC2012-TCP-MIB
RFC2013-UDP-MIB
„ „
„ „ RFC2578-SNMPv2-SMI
„ „ RFC2579-SNMPv2-TC
„ „ RFC2819-RMON-MIB
„ „ RFC2863-IF-MIB
draft-ietf-bridge-rstpmib-03-BRIDGE-MIB
„ „
„ „ draft-ietf-bridge-bridgemib-smiv2-03-RSTP-MIB
IANAifType-MIB
„ „
