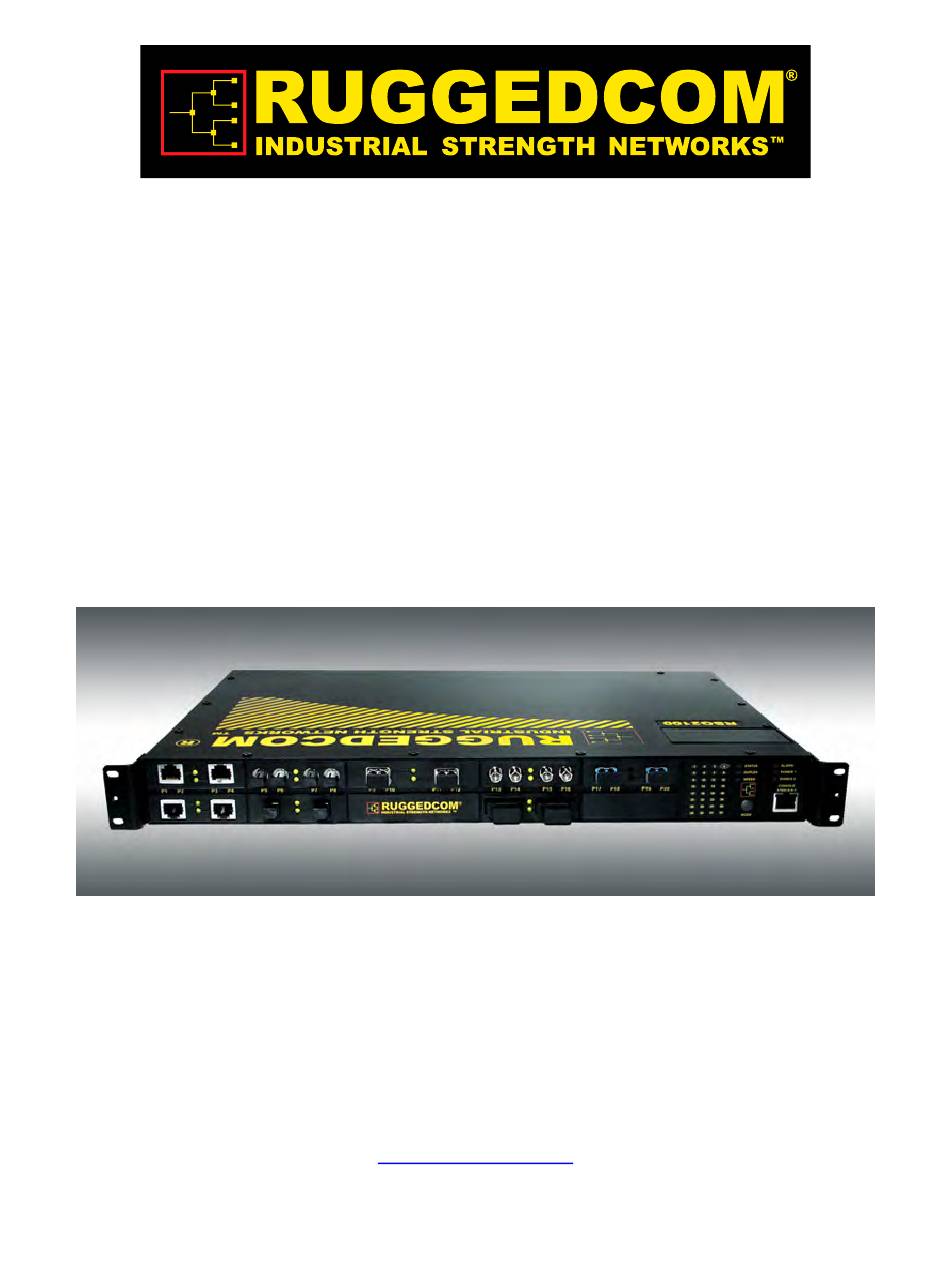

- Page 1 RuggedSwitch ® RSG2100 19-Port Modular Managed Ethernet Switch with Gigabit Uplink Ports Installation Guide June 22, 2009 www.ruggedcom.com...
- Page 2 We have checked the contents of this manual against the hardware and software described. However, deviations from the description cannot be completely ruled out. RuggedCom shall not be liable for any errors or omissions contained herein or for consequential damages in connection with the furnishing, performance, or use of this material.
-
Page 3: Federal Communications Commission Radio Frequency Interference Statement
Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by RuggedCom Inc. could void the user’s authority to operate the equipment. Should this device require service see the “Warranty and Service” section of this guide. -
Page 4: Table Of Contents
Fast Ethernet (10/100 Mbps) Optical Specifications ....... 30 3.5.2 Gigabit Ethernet (1000 Mbps) Optical Specifications ......31 Type Test Specifications ................. 33 Operating Environment ................... 34 Mechanical Specifications ................34 Agency Approvals ....................36 Warranty........................36 ® ® RuggedCom RuggedSwitch RSG2100... -
Page 5: Table Of Figures
Table 4: RS232 over RJ45 console cable pin-out............23 Table 5: RJ45 Ethernet pinout assignment ..............24 Table 6: Cabling categories and 1000BaseTx compliance defined....... 25 Table 7: Fast Ethernet optical specifications..............30 Table 8: Gigabit Ethernet optical specifications .............. 31 ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 6: Product Overview
Non-blocking, store and forward switching Full duplex operation and flow control (IEEE 802.3x) Industry standard fiber optical connectors: LC, SC, SFP Long haul optics allow Gigabit at distances of up to 70km ® ® RuggedCom RuggedSwitch RSG2100... - Page 7 Port configuration, status, statistics, mirroring, security Loss of link management on fiber ports Web-based, Telnet, CLI management interfaces SNMP v2 and RMON Rich set of diagnostics with logging and alarms ® ® RuggedSwitch RSG2100 RuggedCom...
-
Page 8: Mounting Flexibility
See Figure 1 for rack mount orientation examples. Figure 1: RSG2000 Rack mount chassis orientation options – Front and rear mount. ® ® RuggedCom RuggedSwitch RSG2100... -
Page 9: Ethernet Panel Description
Each Ethernet module is equipped with two LEDs that indicate link/activity status information. The LED will be solid for ports with link, and will blink for activity. The diagram in Figure 3 highlights the port and the associated link/activity LED. Figure 3: Ethernet panel LED description ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 10: Fiber Optic Transceiver Orientation And Connection
(ie RX and TX will be reversed). Figure 4: 10FL ST connector Figure 5: 100FX MTRJ connector Figure 7: 100FX / 1000LX SC connector Figure 6: 100FX / 1000LX LC connector ® ® RuggedCom RuggedSwitch RSG2100... -
Page 11: Figure 8: 100Fx / 1000Lx St Connector
Product Overview Figure 8: 100FX / 1000LX ST connector Figure 9: 1000LX GBIC Module and SC connector Figure 10: 1000LX SFP (mini-GBIC) Module and LC connector ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 12: Display Panel Description
Power supply operating normal PS1 / PS2 Power supply failure No power supply installed Alarm exist – login to console to determine alarm code Alarm No alarms exist Table 1: LED Display – Device status LED behavior definition ® ® RuggedCom RuggedSwitch RSG2100... -
Page 13: Table 2: Led Display - Port Led Behavior Definition
Status No link Green (Solid) Full-Duplex operation Orange (Solid) Half-Duplex operation Duplex No link Green (Blinking) 1000Mb/s Green (Solid) 100Mb/s Speed Orange (Solid) 10Mb/s No link Table 2: LED Display - Port LED behavior definition ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 14: Installation
RSG2100 series product to allow for a small amount of convectional airflow. Although forced airflow is not necessary, any increase in airflow will result in a reduction of ambient temperature that will improve long-term reliability of all equipment mounted within the rack space. ® ® RuggedCom RuggedSwitch RSG2100... -
Page 15: Panel And Din Rail Mounting
The adapter allows for the chassis to be mounted on the standard 1” DIN rail using the grooves in the adapter, secured using the included Philips screw. See Figure 14 for a PANEL/DIN mount diagram. Figure 14: RSG2000 PANEL/DIN RAIL mounting diagram ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 16: Power Supply Wiring And Grounding
It is recommended to terminate the ground connection in a #6 ring lug, and to use a torque setting not exceeding 15 in.lbs (1.7 Nm). #6-32 screw with ext. washer. #6 ring lug stainless steel standoff Figure 17: Chassis Ground Connection ® ® RuggedCom RuggedSwitch RSG2100... -
Page 17: Table 3: Rsg2000 Power Terminal Block Connection Description
AC. Relay NO Normally open, failsafe relay contact. Contact Relay Common Failsafe relay common contact. Relay NC Contact Normally closed, failsafe relay contact. Table 3: RSG2000 Power terminal block connection description ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 18: Ac Power Supply Wiring Examples
Equipment must be installed according to the applicable country wiring codes. When equipped with two HI voltage power supplies, independent AC sources can be used to power the product for greater redundancy. ® ® RuggedCom RuggedSwitch RSG2100... -
Page 19: Dc Power Supply Wiring Examples
A circuit breaker is not required for 12, 24 or 48 VDC rated power supplies. For dual DC power supplies, Separate circuit breakers must be installed and separately identified. Equipment must be installed according to the applicable country wiring codes. ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 20: Dual Power Supplies - Dc And Ac Inputs
A circuit breaker is not required for 48 or 24VDC rated power supplies. Separate circuit breakers must be installed and separately identified. Equipment must be installed according to the applicable country wiring codes. ® ® RuggedCom RuggedSwitch RSG2100... -
Page 21: Dielectric Strength (Hipot) Testing
HIPOT testing. Figure 21 shows the proper HIPOT test connections and should be followed to avoid damage to the device. Figure 21: Dielectric Strength (HIPOT) Testing ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 22: Failsafe Alarm Relay Wiring And Specifications
Figure 22. One common application for this output is to signal an alarm if a power failure or removal of control power occurs. The failsafe relay current and power handling capabilities are defined in the technical specification section. Figure 22: Failsafe Alarm Relay Wiring ® ® RuggedCom RuggedSwitch RSG2100... -
Page 23: Console Port Wiring
Figure 23: Console port location on display board Figure 24: RSG200 Console cable For user reference, the console cable pin-out is shown in Table 4. RuggedCom RS232 over RJ45 pin-out specification Signal Name (PC is DTE) DB9- Female RJ45 Male DCD –... -
Page 24: Rj45 Twisted-Pair Data Ports
IEC 61850-3 and IEEE 1613 Class 1 conformance. This means that during the transient event communications errors or interruptions may occur but recovery is automatic. RuggedCom also does not recommended to use these ports to interface to field devices across distances which could produce high levels of ground potential rise, (i.e. -
Page 25: Gigabit Ethernet 1000Base-Tx Cabling Recommendations
90 angles when necessary to reduce inductive coupling. Shielded/screened cabling can optionally be used. The cable shield should be grounded at one single point to avoid the generation of ground loops. ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 26: Pluggable Optics - Installation, Removal, And Precautions
Disconnect all cables from SFP or GBIC module before insertion or removal of module. Only RuggedCom Inc. certified optics should be used on RuggedCom products. Damage can occur to optics and product if compatibility and reliability have not been properly assessed. -
Page 27: Gbic Module Removal
SFP module. Removal of the SFP module is shown further in Figure 29. The module should be immediately stored in an ESD-safe environment. Figure 28: SFP Bail Latch location Figure 29: SFP Removal ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 28: Technical Specifications
1W less than fiber optic ports 3.2 Failsafe Relay Specifications Parameter Value (Resistive Load) Max Switching 240VAC, 125VDC Voltage Rated Switching 2A @ 240VAC Current 0.15A @ 125VDC, 2A @ 30VDC Max Switching 150W, 500VA Capacity ® ® RuggedCom RuggedSwitch RSG2100... -
Page 29: Networking Standards Supported
3.4 Twisted-Pair Port Specifications Parameter Specification Notes Speed 10/100 Mbps Auto-negotiating Duplex FDX / HDX Auto-negotiating Cable-Type > Category 5 Shielded/Unshielded Wiring Standard TIA/EIA T568A/B Auto-Crossover, Auto-polarity Max Distance 100m Connector RJ45 Isolation 1.5kV RMS 1-minute ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 30: Fiber Optic Specifications
Module order codes are contained within each product’s factory data when assembled and configured at the factory. Consult the RuggedCom ROS to determine the optical assemblies installed in a particular product. Optics Speed... -
Page 31: Gigabit Ethernet (1000 Mbps) Optical Specifications
Technical Specifications 3.5.2 Gigabit Ethernet (1000 Mbps) Optical Specifications For maximum flexibility RuggedCom Inc. offers a number of different transceiver choices for Gigabit fiber optical communications. The table below details fiber optic specifications based on the 2-port modules or pluggable transceivers selected at time of ordering. - Page 32 Fiber Optic Notes: 1. Maximum segment length is greatly dependent on factors such as fiber quality, and number of patches and splices. Please consult RuggedCom sales associates when determining maximum segment distances. 2. All cabling is duplex type unless otherwise specified.
-
Page 33: Type Test Specifications
IEC 60068-2-1 Temperature (Dry Cold) -40C Test Ad: 16 hrs @ -40C IEC 60068-2-2 Temperature (Dry Heat) 85C Test Bd: 16 hrs @ 85C IEC 60068-2-30 Humidity Test Db: 6 cycles, 55C, 95% non-condensing Humidity ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 34: Operating Environment
3.8 Mechanical Specifications Parameter Value Comments Dimensions 18.29 x 10.17 x 1.74 inches (Length x Width x (464,57) x (258,32) x (44,20) Height) with mounting brackets installed Weight 10 lb (4.5 Kg) Enclosure 18 AWG galvanized steel ® ® RuggedCom RuggedSwitch RSG2100... -
Page 35: Figure 30: Rsg2000 Series Mechanical Dimensions
Technical Specifications Figure 30: RSG2000 Series Mechanical Dimensions ® ® RuggedSwitch RSG2100 RuggedCom... -
Page 36: Agency Approvals
EN60825-1:1994 + A11:1996 + IEC/EN Compliant A2:2001 5 Warranty RuggedCom warrants this product for a period of five (5) years from date of purchase. For warranty details, visit http://www.ruggedcom.com/ or contact your customer service representative. Should this product require warranty or service contact the factory at: RuggedCom Inc.
