Mitel 5320 Installation Manual

Phone Installation Guide
Cloud VoIP Mitel Phone Installation Guide
PURPOSE
This document will guide you through the basic installation of the Mitel 5320, 5330 and 5340 model IP Phones. Should you
have additional phone installation questions or require assistance beyond the scope of this document, please contact Fuse
Networks Support at 1-888-676-3873.

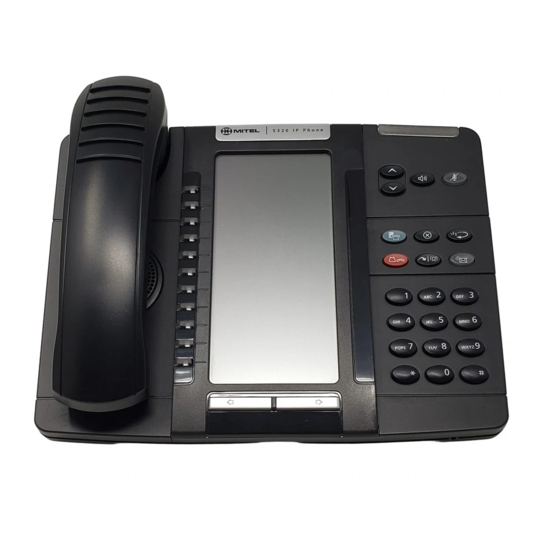

HOW TO INSTALL THE MITEL 5320 – 5330 – 5340 IP PHONE
Parts List: Upon unboxing your Mitel IP phone you should have the following
IP Phone Base
Install the stand for desktop:
1. Turn the phone so that the front faces away from you
2. Hold the stand so the flat side is down
3. Hinge the hooks of the base unit into the notches on the
back of the phone and snap into place as follows:
a. For a high-angle mount, hinge the two lower hooks
into the bottom set of notches and snap the two
upper hooks into the middle set of notches.
b. For a low-angle mount, hinge the two lower hooks
into the middle set of notches and snap the two
upper hooks into the top set of notches.
c. For wall mounting, see the below set of
instructions.
Fuse Networks, LLC. | Call: (888) 676-3873 | Email: Service@Fusenetworks.com
Handset
Handset
Cord
Data Cable Stand
F 1: I
IGURE NSTALLING THE STAND FOR DESKTOP
