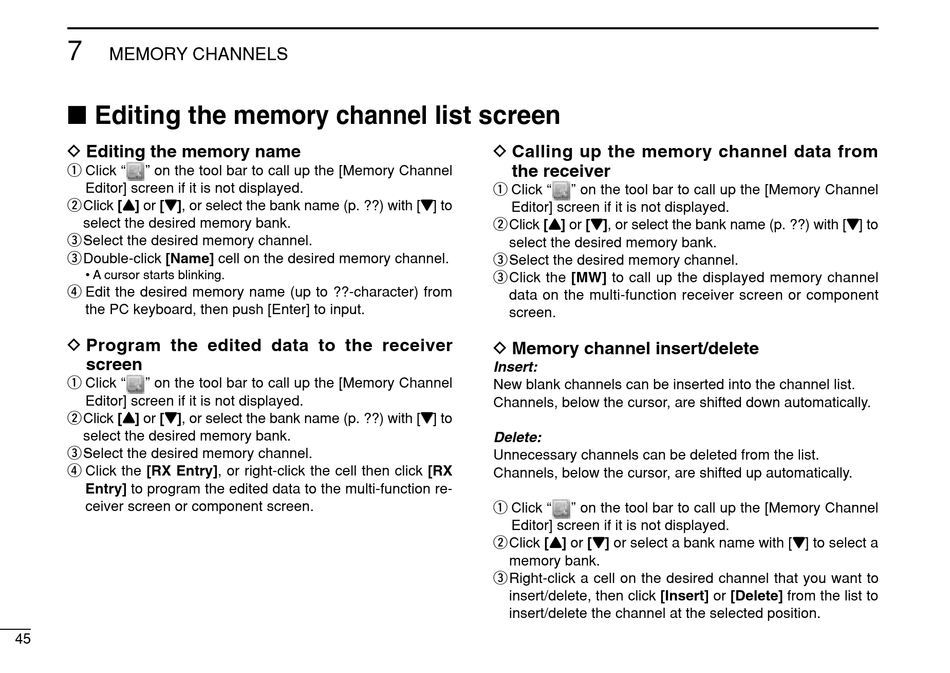

Icom IC-PCR1500 Instruction Manual page 48

7
MEMORY CHANNELS
I Editing the memory channel list screen
D Editing the memory name
q Click "
" on the tool bar to call up the [Memory Channel
Editor] screen if it is not displayed.
wClick [Y Y ] or [Z Z ], or select the bank name (p. ??) with [Z Z ] to
select the desired memory bank.
eSelect the desired memory channel.
eDouble-click [Name] cell on the desired memory channel.
• A cursor starts blinking.
r Edit the desired memory name (up to ??-character) from
the PC keyboard, then push [Enter] to input.
D Program the edited data to the receiver
screen
q Click "
" on the tool bar to call up the [Memory Channel
Editor] screen if it is not displayed.
wClick [Y Y ] or [Z Z ], or select the bank name (p. ??) with [Z Z ] to
select the desired memory bank.
eSelect the desired memory channel.
r Click the [RX Entry], or right-click the cell then click [RX
Entry] to program the edited data to the multi-function re-
ceiver screen or component screen.
45
D Calling up the memory channel data from
the receiver
q Click "
" on the tool bar to call up the [Memory Channel
Editor] screen if it is not displayed.
wClick [Y Y ] or [Z Z ], or select the bank name (p. ??) with [Z Z ] to
select the desired memory bank.
eSelect the desired memory channel.
eClick the [MW] to call up the displayed memory channel
data on the multi-function receiver screen or component
screen.
D Memory channel insert/delete
Insert:
New blank channels can be inserted into the channel list.
Channels, below the cursor, are shifted down automatically.
Delete:
Unnecessary channels can be deleted from the list.
Channels, below the cursor, are shifted up automatically.
q Click "
" on the tool bar to call up the [Memory Channel
Editor] screen if it is not displayed.
wClick [Y Y ] or [Z Z ] or select a bank name with [Z Z ] to select a
memory bank.
eRight-click a cell on the desired channel that you want to
insert/delete, then click [Insert] or [Delete] from the list to
insert/delete the channel at the selected position.
