Invacare® MyOn® HC

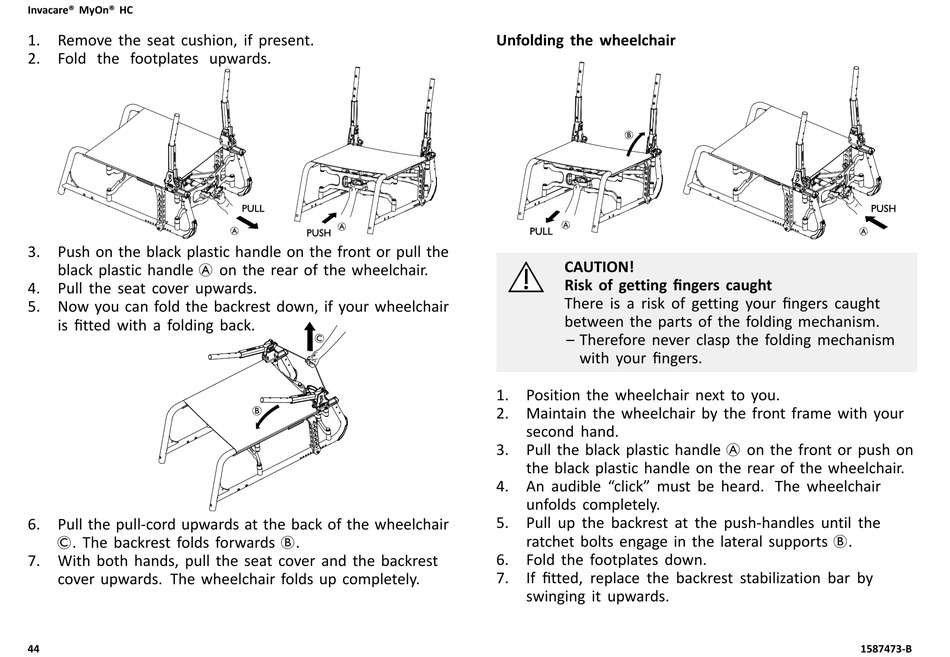

1. Remove the seat cushion, if present.
2. Fold the footplates upwards.
3. Push on the black plastic handle on the front or pull the
black plastic handle A on the rear of the wheelchair.
4. Pull the seat cover upwards.
5. Now you can fold the backrest down, if your wheelchair
is fitted with a folding back.
6. Pull the pull-cord upwards at the back of the wheelchair
C. The backrest folds forwards B.
7. With both hands, pull the seat cover and the backrest
cover upwards. The wheelchair folds up completely.
44
A
A
Unfolding the wheelchair
B
A
CAUTION!
Risk of getting fingers caught
There is a risk of getting your fingers caught
between the parts of the folding mechanism.
– Therefore never clasp the folding mechanism
with your fingers.
1. Position the wheelchair next to you.
2. Maintain the wheelchair by the front frame with your
second hand.
3. Pull the black plastic handle A on the front or push on
the black plastic handle on the rear of the wheelchair.
4. An audible "click" must be heard. The wheelchair
unfolds completely.
5. Pull up the backrest at the push-handles until the
ratchet bolts engage in the lateral supports B.
6. Fold the footplates down.
7. If fitted, replace the backrest stabilization bar by
swinging it upwards.
A
