Philips Luno HQ5426 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Voltage : 100-240 V 50/60 Hz
- Power consumption : Motor depending
- Motor voltage : 54 V
- Power system : Mains
- Shaving heads : HQ4 - 4222 036 05450
- SAP coding : HQ5426
Published by Philips Domestic Appliances and Personal Care
04/05
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- Remove shaving unit, to prevent damages during repairs.
- Remove the screws A1 (2 x).
- Remove cover. (see Fig. 1)
- To remove the trimmer, first
disassemble the trimmer slide
by pushing down the locking
pegs (2 x "X" in exploded
view) and move the slide
slightly outwards.
- Make room between trimmer
and cover with a small screw-
driver ("Y" in exploded view).
- Remove screws B1 (2 x).
- The PC-board with motor
and hairchamber can now be
removed from the housing.
- Detach the motor clamping springs (item 16) on the
bearing block with a small screwdriver.
REPAIR INSTRUCTION
- No specific issues
OPTIONAL (accessories)
- Pouch - 4222 036 05570
Printed in the Netherlands © Copyright reserved

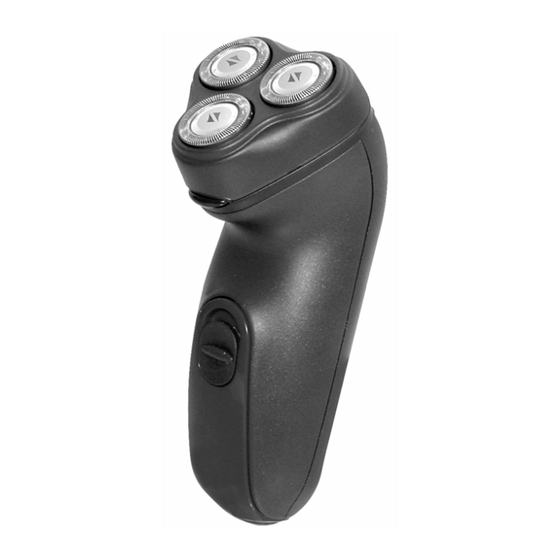

Shaver
HQ5426
Luno
Fig. 1
Subject to modification
