  • Page 2: Engine Specifcations

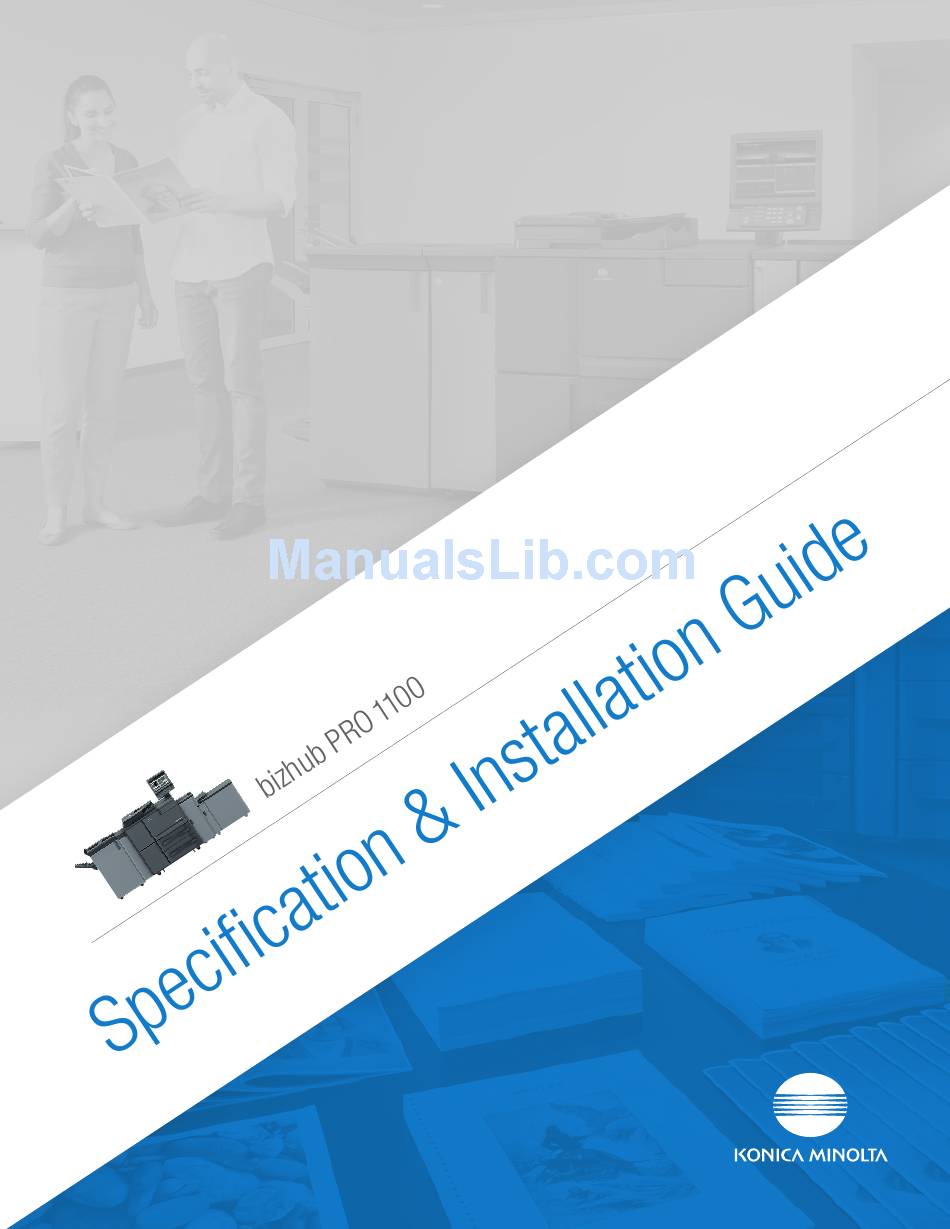

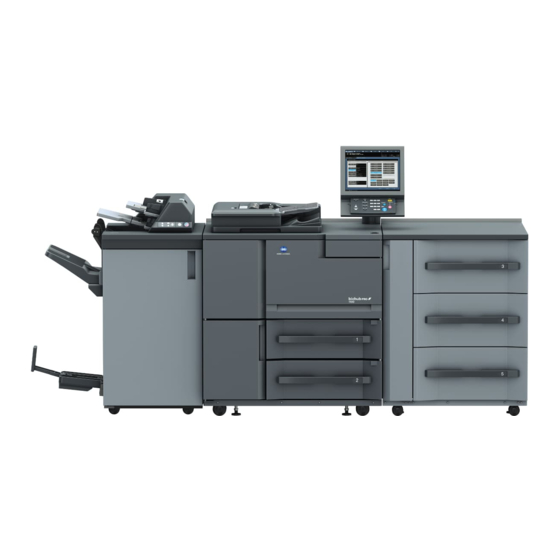

    Specification & Installation Guide bizhub PRO 1100 Engine Specifcations Type Console Type Color Monochrome Method LED electrostatic copying system Print speed Per Minute 8.5" x 11" bw single side 100ppm 11" x 17" bw single side 56ppm 12" x 18" bw single side 52ppm 8.5"...
  • Page 3 Specification & Installation Guide bizhub PRO 1100 Engine Specifcations Gradation 256 grayscale Warm-Up Time 390 sec. or less First-Page Output Time 3.4 sec (8.5" x 11") Noise Under Operation 79 dB (Lwa) Stand-by 59 dB (Lwa) Operation Area (Panel) LCD Touch panel (diagonal 15inch) + Hard Key...

  • Page 4: System Configurations

    Specification & Installation Guide bizhub PRO 1100 System Configurations Authentication Unit Patlite AU-205H Removable Hard Disk IC card type RH-101 HDD Inner-case Kit HD-523 Paper Feeder Unit Output Tray PF-709 OT-507 Post Inserter PI-502 *1*2 Select Punch Kit PK-522 Large Capacity...
  • Page 5 Specification & Installation Guide bizhub PRO 1100 MAINBODY AND PAPER INPUT Engine PF-709 MB-507 LU-411 LU-412 FINISHING OT-507 GP-501 GP-502 ZU-608 FS-532 PI-502 PK-522 SD-510 = Must have = Recommended = Optional bizhub PRO 1100 Main body DF-702 Automatic document feeder (standard)
  • Page 6 10.32 27.56 3.94 (100) (333) (544) (262) (700) 3.94 (100) 5.16 (131) 124.41 (3,160) Front View bizhub PRO 1100 + FS-532 + PI-502 + SD-510 + MB-507 + LU-412 inch (mm) 65.50 (1,664) 57.24 45.67 (1,454) (1,160) 45.67 42.13 (1,160) (1,070) 31.85...

  • Page 7: System Specifications

    Specification & Installation Guide bizhub PRO 1100 System Specifications Standard Paper Trays Standard Capacity 2 x 1,500 sheets Paper Weight 40 – 300 gsm SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, B5S, A5, 12" x 18", 11" x 17", Paper Size 9" x 11", 8.5" x 14", 8.5" x 11", 8.5" x 11"S, 5.5" x 8.5 , 8" x 13", 8K, 16K, 16KS, Custom size paper, Tab paper (A4, 8.5" x 11")
  • Page 8 Specification & Installation Guide bizhub PRO 1100 System Specifications DF-702 Standard Automatic Document Feeder Product Name DF-702 Tray Capacity 150 sheets (80 gsm) Original Weight Simplex 35 – 210 gsm Original Weight Duplex 50 – 210 gsm Original Size 5.5" x 8.5" – 11" x 17"...
  • Page 9 Specification & Installation Guide bizhub PRO 1100 System Specifications HD-523 Inner Case kit with HDD Optional Product Name HD-523 Type Inner HDD kit Required For RH-101 Power Source 12 VDC, 5VDC (supplied from main body) AU-205H IC Card Reader Optional...
  • Page 10 Specification & Installation Guide bizhub PRO 1100 Accessories PF-709 Paper Feed Unit Option Product Name PF-709 Type 3 Tray Large Capacity Paper Feeding Unit, Friction Feed Compatibility bizhub PRO 1100 SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, B5S, A5, 12" x 18", 11" x 17", Media Size 8.5" x 14", 8.5" x 11", 8.5" x 11"S, 5.5" x 8.5", 8" x 13", 8K, 16K, 16KS, Custom size...
  • Page 11 Specification & Installation Guide bizhub PRO 1100 Accessories LU-411 8.5" x 11" LCT Option Product Name LU-411 Type Large Capacity Paper Feeding Unit 8.5" x 11" Compatibility bizhub PRO 1100 A4, B5, ISOB5, 8.5" x 11", 9" x 11", 16K, Media Size Tab paper (A4, 8.5" x 11"), Custom paper Min.
  • Page 12 Specification & Installation Guide bizhub PRO 1100 Accessories LU-412 12" x 18" LCT Option Product Name LU-412 Type Large Capacity Paper Feeding Unit 12" x 18" Compatibility bizhub PRO 1100 SRA3, A3, B4, ISOB4, A4, A4S, SRA4S, 12" x 18", 11" x 17", 9" x 11", 8.5" x 14", Media size 8.5"...
  • Page 13 Specification & Installation Guide bizhub PRO 1100 Accessories MB-507 Bypass Tray Option Product Name MB-507 Type Multi bypass unit Compatibility bizhub PRO 1100 SRA3, A3, B4, SRA4S, A4, A4S, B5, B5S, A5, 12" x 18", 11" x 17", 9" x 11", Media size 8.5" x 14", 8.5" x 11", 8.5" x 11"S, 5.5" x 8.5"S) 8" x 13", 8K, 16K, 16KS, Custom size paper, Tab paper (A4, 8.5" x 11")
  • Page 14 Specification & Installation Guide bizhub PRO 1100 Accessories OT-507 Output Tray Option Product Name OT-507 Type Paper exit tray Compatibility bizhub PRO 1100 Media Size Min. 95 x 135 mm Max. 324 x 463 mm Media Type Plain, Fine Media Weight 62 –...
  • Page 15 Specification & Installation Guide bizhub PRO 1100 Accessories GP-501 Option Multi (GBC) Punching Unit Product Name GP-501 Type GBC puncher Modes By pass mode, Punch mode bizhub PRO 1100 Compatibility bizhub PRESS 1052, 1250P bizhub PRESS C1060,C1070/P, C71hc, C1085, C1100 By Pass Mode Min.: 95 –...
  • Page 16 Specification & Installation Guide bizhub PRO 1100 Accessories DIE Set Model DS-501 Ring Binder 3-hole, 5/16" diameter DS-502 Plastic Bind Cerlox Standard 19-hole DS-503 WireBind – 3:1 32-hole DS-504 WireBind – 2:1 21-hole DS-505 Color Coil – 4:1 44-hole DS-506 VeloBind – 1:1 Round 11-hole...
  • Page 17 Product Name GP-502 Type Auto Ring Binder for book creations Modes By pass mode, Binding mode bizhub PRO 1100, bizhub PRESS 1052/1250/1250P Compatibility bizhub PRESS C1060,C1070/P, C71hc, C1085, C1100 By Pass Mode Min. : 95 – 139 mm Media Size Max.: 324 –...
  • Page 18 Specification & Installation Guide bizhub PRO 1100 Accessories ZU-608 – Z-Fold Unit Product Name ZU-608 Type Folding device for Z-Fold and Punching Modes Straight Mode, Fold Mode Compatibility bizhub PRO 1100 Straight Mode Media Size Min. 95 x 139 mm Media Size Max.
  • Page 19 2-point Staple (side) Type The Finisher with Staple Function with All in One Options Compatibility bizhub PRO 1100, bizhub PRESS 1052/1250/1250P Straight Exit Mode Function Exit paper without treatment on the main tray SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, B5S, A5, 12" x 18", 11" x 17", Media Size 9" x 11", 8.5" x 14", 8.5" x 11", 8.5" x 11"S, 5.5" x 8.5", 8" x 13", 5.5"...
  • Page 20 Specification & Installation Guide bizhub PRO 1100 Accessories Staple Mode Function After staple, exit the paper on the man tray SRA3, A3, B4, ISOB4, SRA4S, A4, A4S, B5, ISOB5, A5, 12" x 18", 11" x 17", 9" x 11", Media size 8.5" x 14", 8.5" x 11", 8.5" x 11"S, 5.5" x 8.5", 8" x 13", 8K, 16K, Tab paper*2 (A4, 8.5" x 11"), Custom size...
  • Page 21 Specification & Installation Guide bizhub PRO 1100 Accessories Punch kit (PK-522) Optional Post inserter (PI-502 ) Saddle Stich Unit (SD-510) 21.41" x 28.46" x 42.40" (excl. Main tray) Width incl. Main tray (retracted): 34.49" Dimension (W x D x H) Width incl.
  • Page 22 Specification & Installation Guide bizhub PRO 1100 Accessories SD-510 Saddle Stitch Unit Option Product Name SD-510 Saddle-stitching Half-Fold Tri-Fold Type Optional Saddle Stitch & Fold Unit for FS-532 Compatibility FS-532 Booklet Mode Function Center fold and saddle stitch, output to paper output tray SRA3, A3, B4, ISOB4, SRA4S, A4S, B5S, 12" x 18", 11" x 17", 8.5" x 14",...
  • Page 23 Specification & Installation Guide bizhub PRO 1100 Accessories Center Folding Mode Function Center Fold, output on booklet tray SRA3, A3, B4, ISOB4, SRA4S, A4S, B5S, 12" x 18", 11" x 17", 8.5" x 14", Media size 8.5" x 11"S, 8" x 13", 8K, 16KS, Custom size Min. 120 x 240 mm Max.
  • Page 24 ± 5.0 mm Accuracy 0.2 mm Dimension (W x H x D) 6.14" x 7.13" x 23.31" Weight Approx. 9.92 lbs (4.5 kg) Power Source From main body Power Consumption Less than 40 W continued Only bizhub PRO 1100 with MB-507...
  • Page 25 Specification & Installation Guide bizhub PRO 1100 Accessories PI-502 - Post Inserter Option Product Name PI-502 Cover Sheets Interleaved Sheets Type Cover Paper feeding Tray (2 trays) Compatibility FS-612, FS-607, FS-531, FS-532 Upper Tray A4, A4S, B5, ISOB5, B5S, A5, 9" x 11", 8.5" x 11", 8.5" x 11"S, 5.5" x 8.5", 16K,...

  • Page 26: Internal Controller

    Specification & Installation Guide bizhub PRO 1100 Internal Controller Type Built-in type Power Source From main body Print: 1,200 x 1,200 dpi, 600 dpi x 600 dpi Resolution Scan: 200 dpi, 300 dpi, 400 dpi, 600 dpi Pentium G3420 3.2GHz...

  • Page 27: Scan Functions

    Specification & Installation Guide bizhub PRO 1100 Scan functions Original Type Sheet/Book/Solid objects Max. Original Size 11" x 17" (279.4 x 432 mm) Thickness: Max. 30 mm Solid Object Weight: Max. 15 lbs (6.8 kg) Original Feed Base Left rear base Reading Resolution...

  • Page 28: New Job Centro/Color Centro

    New screen design for Job Centro/Color Centro The Job Centro/Color Centro screens have been switched to a graphical user interface (GUI) design, in line with the "Grid & Solid" concept proposed by Konica Minolta Design Center. Improved Job Centro/Color Centro functions Job Centro •...
  • Page 29 Specification & Installation Guide bizhub PRO 1100 NEW JOB Centro/Color Centro continued New Unit Panel Screen Job Centro Screen Page Editing Screen Page Editing Screen Job Ticket Editing Screen Job Ticket Editing Screen Tone Curve Editing Screen Tone Curve Editing Screen...
  • Page 30 Specification & Installation Guide bizhub PRO 1100 Consumables Toner TN016 Toner for bizhub PRO 1100 Yield 82,000 prints @ 5% coverage Developer DV012 Developer for bizhub PRO 1100 Yield 900,000 prints Drum DR012 Drum for bizhub PRO 1100 Yield 900,000 prints...

  • Page 31: Item Numbers

    Specification & Installation Guide bizhub PRO 1100 Item Numbers Engine bizhub PRO 1100 A799011 Accessories Paper Feed Unit PF-709 A7W7WY1 A4 Large capacity unit LU-411 A870WY1 SRA3 Large capacity unit LU-412 A872WY1 Paper exit tray OT-507 A79CWY1 Staple Finisher w/AiO Options FS-532 A4F3WY2...
  • Page 32 Specification & Installation Guide bizhub PRO 1100 SD-510 Supported Media Weight and Sizes Saddle Stich   Paper width 279.4 or more Paper width less than 279.4 Paper Fine quality Fine quality Coated Coated paper Other Other Weight paper paper paper ( gsm) 40–49...
  • Page 33 Specification & Installation Guide bizhub PRO 1100 Letter Fold-in   Size Not Specified Paper Weight Fine quality paper Coated paper Other ( gsm) 40–49 Not supported Not supported Not supported 50–61 3 sheets Not supported 3 sheets 62–74 3 sheets...
  • Page 34 Specification & Installation Guide bizhub PRO 1100 FS-532 Staple capability Staple Page Plain Fine Plain Paper/except Fine Length: Length: Length: Length: Length: Length: 321 to less than 400 mm or less than 400 mm less than 400 mm Media weight 399 mm 400 mm more 320 mm...
  • Page 35 Specification & Installation Guide bizhub PRO 1100 Finishing Productivity bizhub PRO 1100 FS-532 Mode Size Mode number of sheets Finishing Productivity 8.5" x 11 Simplex – 100% Straight paper exit Shift paper exit 11" x 17" Simplex – 100% 2 Sheets 100% 8.5"...
  • Page 36 Specification & Installation Guide bizhub PRO 1100 Finishing Productivity bizhub PRO 1100 continued ZU-608 Mode Size Mode number of sheets Finishing Productivity 8.5" x 14 1 Sheet Z-Fold 11" x 17" 1 Sheet Simplex 8.5" x 11 1 Sheet Punch 11" x 17" 1 Sheet...

  • Page 37: Recommended Papers

    Specification & Installation Guide bizhub PRO 1100 Recommended Papers Paper Weight Category Product Name Remark ( gsm) Domtar First Choice Multiuse Recommended Paper A Domtar First Choice Cover & Card Recommended Paper B Bond Hammermill Fore MP Recommended Paper A...

  • Page 38: Paper Weight Conversion Chart

    Specification & Installation Guide bizhub PRO 1100 Paper Weight Conversion Chart Paper Weight Bond Book Bristol Cover Index 40 – 49 gsm 11 – 13 lb. 27 – 33 lb. 18 – 22 lb. 15 – 18 lb. 22 – 27 lb 50 –...

  • Page 39: Quick Security Setting

    6. Protect against cyber attacks 7. Manage log history To help ensure that your data is protected the bizhub PRO 1100 offers the following security measures that can be enabled by an authorized Konica Minolta service representative. Quick Security Setting Administrator Password Turn the administrator authentication function on, and specify the administrator password.

  • Page 40: Hdd Management Settings

    Security Operation Guide, so that users can have a safe operating environment. A authorized Konica Minolta service representative should set a CE password for CE authentication and administrator password on the machine. The service representative uses the CE password for CE works. The administrator, who obtains the administrator password from the service representative, uses that password to make settings related to the Enhanced Security mode.
  • Page 41 Specification & Installation Guide bizhub PRO 1100 Notes...
  • Page 42 Cloud Services IT Security Managed IT Services IT Consulting & Projects ©2016 KONICA MINOLTA BUSINESS SOLUTIONS U.S.A., INC. Technology All rights reserved. Reproduction in whole or in part without written permission is prohibited. Konica Minolta and The essentials of imaging are trademarks of KONICA Office Multifunction Business Solutions...
