Installation features and controls

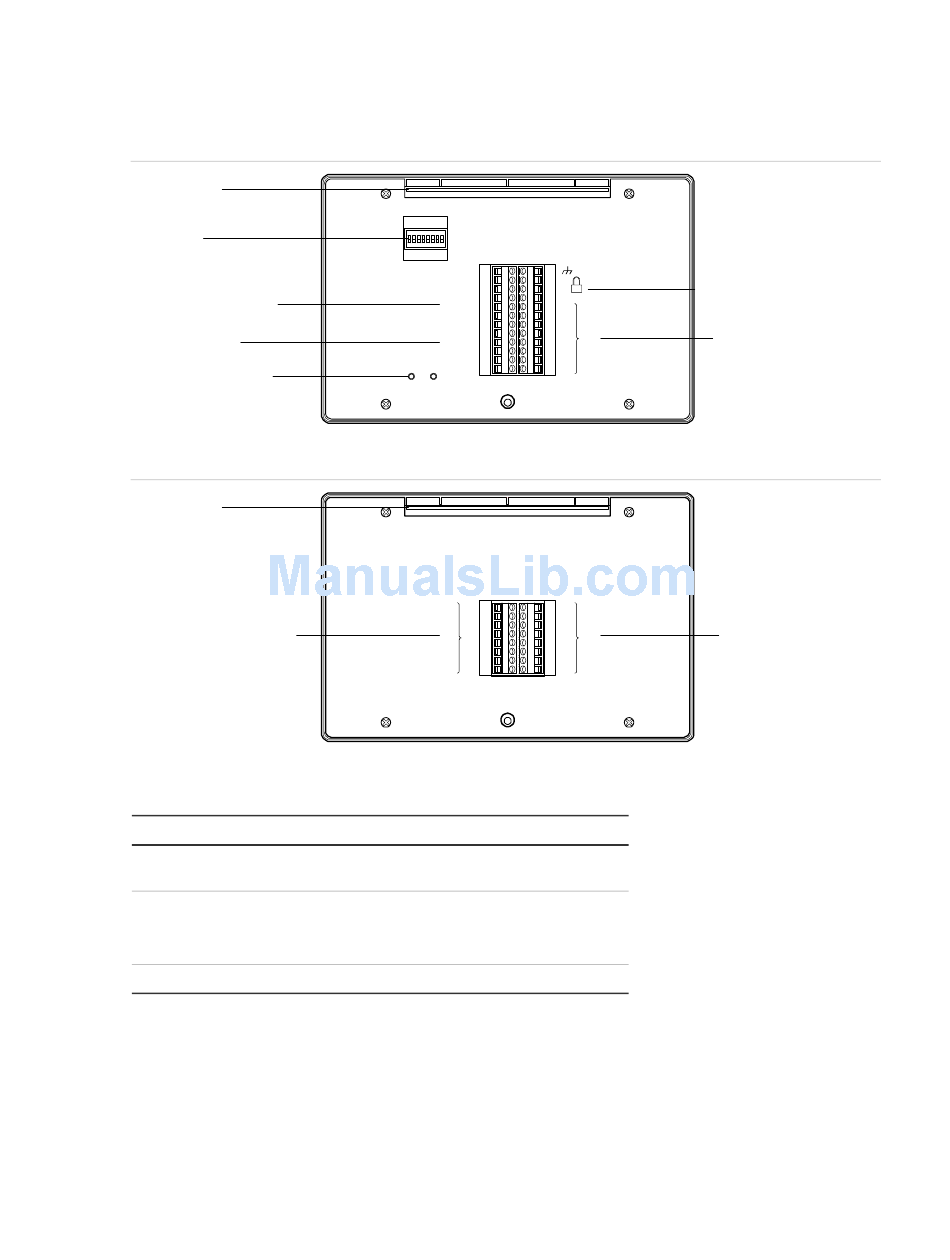

Figure 2: Annunciator rear view showing terminals and controls
Mounting slot
DIP switch
RS-485 riser terminals
Power terminals
Communication LEDs
Figure 3: Expander rear view showing terminals
Mounting slot
Expander cable terminals
Table 3: DIP switch settings
Switch Description and values
S1 to S5 Network address. The annunciator network address (in binary).
The factory setting is for address 2. See Table 4 for examples.
S6 Network baud rate.
OFF = 9600 baud (factory default setting)
ON = 38,400 baud
S7 to S8 Not used
