Wiring diagrams

Wiring diagrams
All wiring is supervised and power-limited, unless otherwise noted.

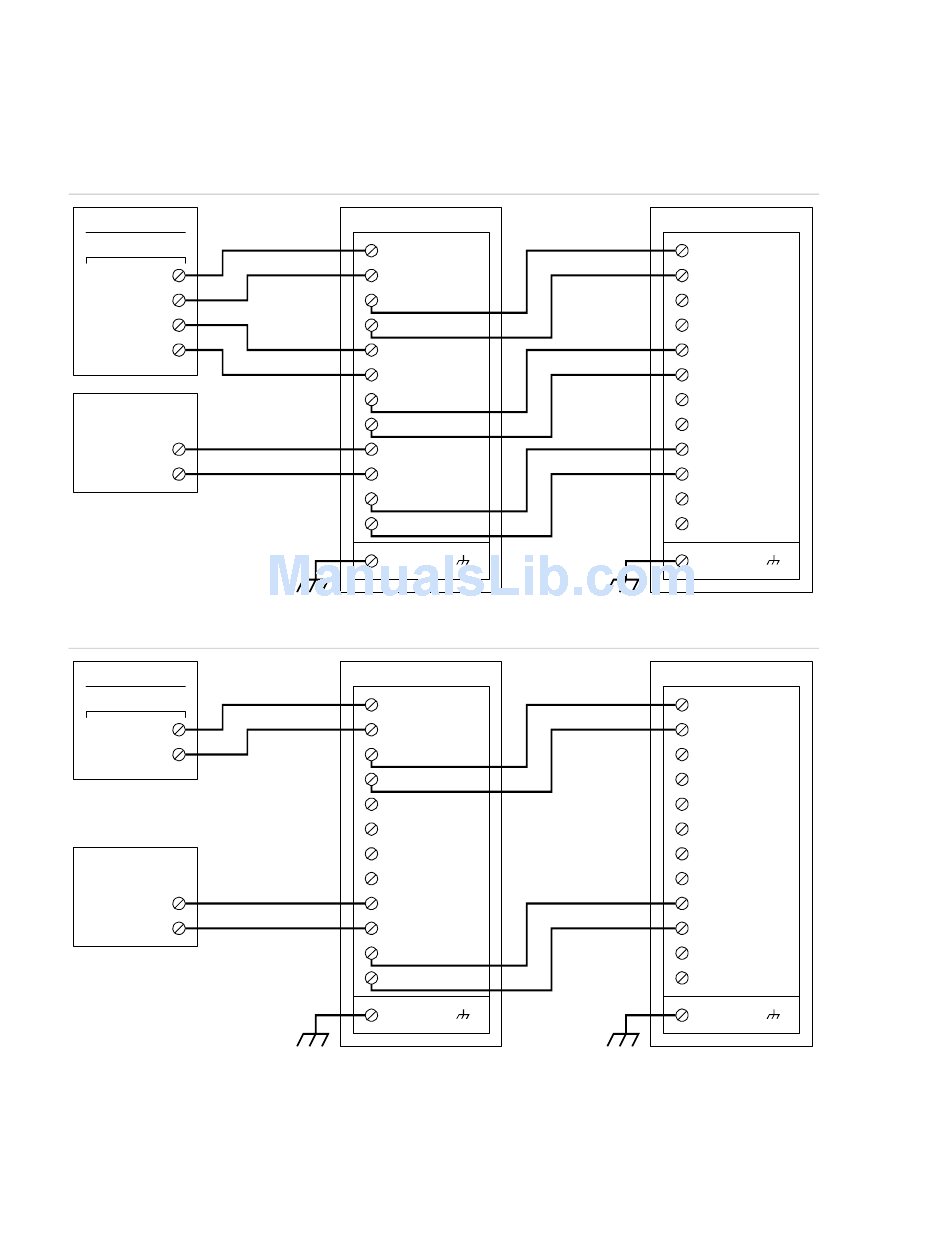

Figure 5: Class A wiring
FACP
RS-485
CH1 +
CH1 –
CH2 +
CH2 –
LISTED 24 VDC
SUPPLY
24 VDC +
24 VDC –
Figure 6: Class B wiring
FACP
RS-485
CH1 +
CH1 –
LISTED 24 VDC
SUPPLY
24 VDC +
24 VDC –
6
Annunciator
CH1 (+) IN
CH1 ( ) IN –
CH1 (+) OUT
CH1 ( ) OUT –
CH2 (+) IN
CH2 ( ) IN –
CH2 (+) OUT
CH2 (–) OUT
24V (+) IN
24V ( ) IN –
24V (+) OUT
24V ( ) OUT –
GROUND
Annunciator
CH1 (+) IN
CH1 ( ) IN –
CH1 (+) OUT
CH1 ( ) OUT –
CH2 (+) IN
CH2 ( ) IN –
CH2 (+) OUT
CH2 (–) OUT
24V (+) IN
24V ( ) IN –
24V (+) OUT
24V ( ) OUT –
GROUND
R Series Remote Annunciators and Expander Installation and Operation Guide
Annunciator
CH1 (+) IN
CH1 ( ) IN –
CH1 (+) OUT
CH1 ( ) OUT –
CH2 (+) IN
CH2 ( ) IN –
CH2 (+) OUT
CH2 (–) OUT
24V (+) IN
24V ( ) IN –
24V (+) OUT
24V ( ) OUT –
GROUND
Annunciator
CH1 (+) IN
CH1 ( ) IN –
CH1 (+) OUT
CH1 ( ) OUT –
CH2 (+) IN
CH2 ( ) IN –
CH2 (+) OUT
CH2 (–) OUT
24V (+) IN
24V ( ) IN –
24V (+) OUT
24V ( ) OUT –
GROUND
