Summary of Contents for Broadata LB-H2-E

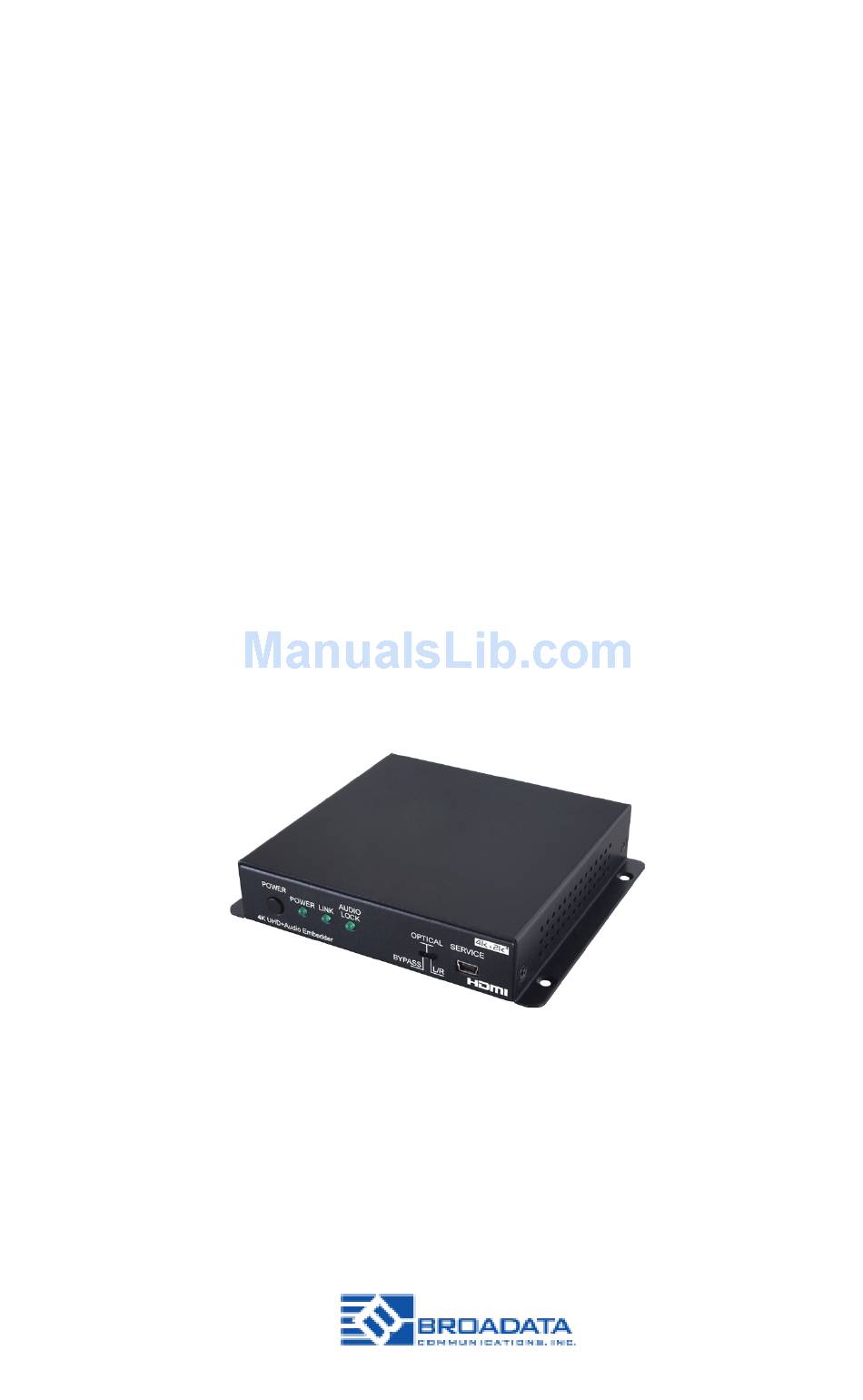

- Page 1 Link Bridge 4K UHD + Audio Embedder BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2017 Broadata Communications, Inc.
- Page 3 LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 4: Table Of Contents
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION............... 5 2.0 OPERATION CONTROLS AND FUNCTIONS........6 2.1 FRONT PANEL.................. 6 2.2 REAR PANEL ................8 3.0 EDID MANAGER................9 4.0 EDID CONTROLLER TAB ............... 10 5.0 EDID CREATOR TAB .............. -
Page 5: Product Description
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder 1.0 PRODUCT DESCRIPTION FEATURES • HDMI input and output with 18Gbps (600MHz) 4K UHD+ support • DVI 1.0 compliant with the use of an HDMI-DVI adaptor • HDCP 1.4 and 2.2 compliant •... -
Page 6: Operation Controls And Functions
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder 2.0 OPERATION CONTROLS AND FUNCTIONS 2.1 Front Panel 1. POWER & POWER LED: Press this button to power the unit on or off. The LED will be lit when the unit is receiving power. -
Page 7: Rear Panel
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder 2.1 Rear Panel 1. HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. 2. HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. - Page 8 LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder Commands: Note: Commands will not be executed unless followed by a carriage return. Commands are not case-sensitive. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 9: Edid Manager
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder 3.0 EDID MANAGER This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. -
Page 10: Edid Controller Tab
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder 4.0 EDID CONTROLLER TAB Mode Select: The currently selected EDID is displayed here and can be changed by selecting from any of the available EDID options. There are 6 pre-defined “Internal” EDIDs, an “External”... - Page 11 LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder • Previously saved EDID files (*.bin format) can be re-uploaded into the unit by selecting the User EDID to replace from the dropdown and then clicking the “Upload” icon. Before accepting the upload, the software will check and verify that the EDID’s header...
-
Page 12: Edid Creator Tab
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder 5.0 EDID CREATOR TAB Click on the EDID Creator tab to begin designing a new EDID from scratch (select the “New” icon), to modify an existing EDID stored on the PC as a .bin file (select the “Load” icon) or to edit an EDID copied from the unit via the EDID Analyzer’s... - Page 13 LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder The following tabs provide access to a wide range of EDID information which can be edited: • Descriptor: This tab allows for the editing of various description and information fields within the EDID file such as Manufacturer Name, Monitor Name, etc.
-
Page 14: Maintenance And Troubleshooting
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder 6.0 MAINTENANCE AND TROUBLESHOOTING 4.1 Maintenance There is no operator maintenance other then keeping the units clean. However, observe the following light indicators to make sure that the unit is working properly: 4.2 Troubleshooting... - Page 15 LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 16: Specifications
LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder 7.0 SPECIFICATIONS Video/ Audio Specifications Video Bandwidth 18Gbps (600Mhz) Input Ports 1 x HDMI, 1 x Optical S/PDIF (Digital Audio), 2 × RCA, 1 x Mini-USB Output Port 1×HDMI HDMI Audio Sampling Rate Up to 192 kHz Optical S/PDIF Audio 32KHz, 44.1Khz, 48Khz, 88.2Khz, 96Khz,... -
Page 17: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 8.2 RETURN/REPAIR SERVICE The LB-H2-E System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. -
Page 18: Limited Warranty
Link Bridge 4K UHD+ Audio Embedder 9.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that... - Page 19 LB-H2-E User’s Manual Link Bridge 4K UHD+ Audio Embedder Broadata Technical Support, Sales@Broadatacom.com Broadata Technical Support, Sales@Broadatacom.com...
- Page 20 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com LB-H2-E...
