Broadata LBC-H/V-T-WP User Manual

Link bridge hdmi/vga wall plate transmitter system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LBC-H/V-T-WP
L
B
HDMI/VGA
TM
INK
RIDGE
W
P
T
S
ALL
LATE
RANSMITTER
YSTEM
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2013 Broadata Communications, Inc.

Advertisement

Table of Contents
loading

Related Manuals for Broadata LBC-H/V-T-WP

Summary of Contents for Broadata LBC-H/V-T-WP

  • Page 1 RIDGE LATE RANSMITTER YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2013 Broadata Communications, Inc.
  • Page 2 LBC-H/V-T-WP User’s Manual Link Bridge HDMI/VGA Wall Plate Transmitter System SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.

  • Page 3: Table Of Contents

    5.0 MAINTENANCE AND TROUBLESHOOTING ....24 5.1 MAINTENANCE .............. 24 5.2 TROUBLESHOOTING ........... 24 6.0 SPECIFICATIONS ............26 7.0 SERVICE PROCEDURE ..........27 7.1 REPLACEMENT POLICY ..........27 7.2 RETURN AND REPAIR SERVICE ......... 27 8.0 LIMITED WARRANTY ............ 28 Broadata Technical Support, (800) 214-0222...

  • Page 4: Product Description

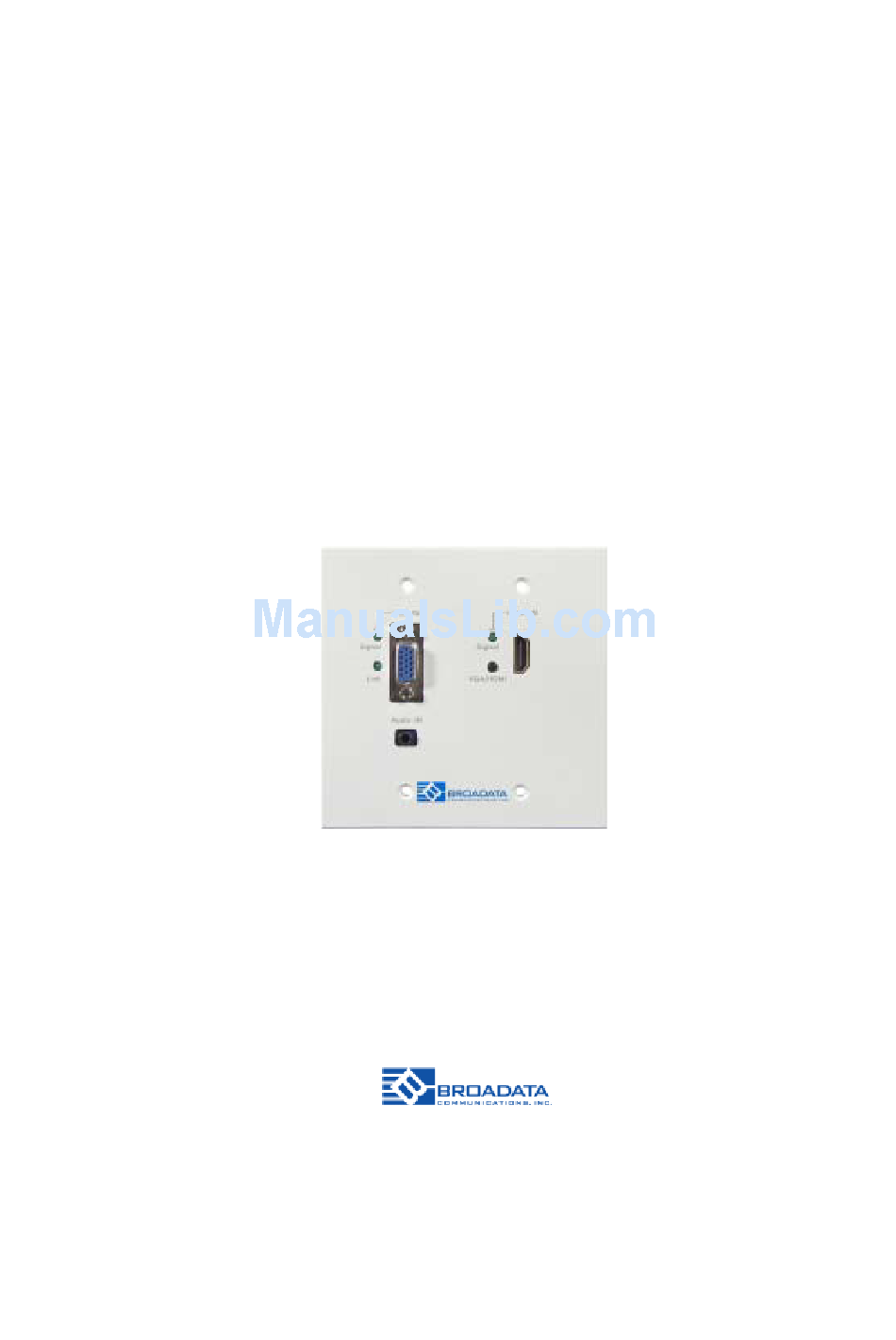

    70m (230 ft) at 4K2K and WUXGA (1920x1200 @ 60Hz) or 720p/1080i/1080p HDTV video resolution. LBC-H/V-T-WP is a 2 gang multi-input wall plate transmitter. When either the VGA or HDMI with active signal is connected, the signal will be sent to the compatible HDBaseT receiver automatically.

  • Page 5: Operation Controls And Functions

    VGA. LED for HDMI: LED blinking means there is HDMI signal input; LED always on means current output is HDMI. HDMI Input: Connect to HDMI source. Signal Switch Button: Manual selection of the input signal. Broadata Technical Support, (800) 214-0222...

  • Page 6: Rear Panel

    LBC-H/V-T-WP User’s Manual Link Bridge HDMI/VGA Wall Plate Transmitter System Figure 2-2 LBC-H/V-T-WP Rear Panel Firmware Update USB port RS-232 control port (refer to RS232 protocol on pg 17) Power input HDBaseT CATX connection Broadata Technical Support, Sales@Broadatacom.com...

  • Page 7: Setup

    3.0 SETUP The BCI LBC HDBaseT Extender Series units are used in pairs. One LBC-H/V-T-WP transmitter unit is located at the near-end (source) and connected through a single category cable, to one of the LBC or LBH receivers like the LBC-HDBT-R receiver shown below and located at the far-end (sink) of the link.

  • Page 8: Vga/Ypbpr Video Interface

    Use the following instructions to properly connect your component video as illustrated in Figure 3-2. Connect the LBC-H/V-T-WP (Transmitter) unit’s RGB/YPbPr video input port to the user’s RGB/YPbPr video source with the appropriate VGA (HD-15) cables.

  • Page 9: Hdmi Video Interface

    Use the following instructions to properly connect your video as illustrated in Figure 3-3. Connect the LBC-H/V-T-WP (Transmitter) unit’s to HDMI video input port to the user’s HDMI video source with the appropriate HDMI cables. Figure 3-3 Connect User’s HDMI Video Source...

  • Page 10: Audio Interface

    To send audio signals, label and connect one stereo audio-jack cable to the “AUDIO” connector of the line level audio source. On the LBC-H/V-T-WP unit, connect the other end of the cables to the front panel stereo jack connector labeled “AUDIO IN”...

  • Page 11: Serial Data Interface

    Figure 3-5. Figure 3-5 User’s RS-232 Data Source RS-232 Data The LBC-H/V-T-WP transmits one channel of RS-232 data. Follow the procedures for installing data terminal devices. 1. Label and connect one serial data cable to the user’s RS-232 device.

  • Page 12: Cat-5E/6 Transmission Connection

    2. Connect the cable from one unit to the other connecting the near end LBC-H/V-T-WP unit’s RJ45 port and to the far end of the LBH-HDMI-AD-R (use any compatible LBC or LBH series receiver) unit’s RJ45 RX port as illustrated in Figure 2-7.

  • Page 13: Dc Power Connection

    HDMI/VGA Wall Plate Transmitter System 4.0 DC POWER CONNECTION Congratulations! You are now ready to power up the LBC-H/V-T-WP and set up your network connection. In order to make sure that you have a proper installation, please observe the following: Your AC jack has power.

  • Page 14: In-Wall Power/Cat-5E/6 Wiring Instruction

    Terminated CAT-5e/6 with RJ45 connector to be directly plugged into the RJ45 connector port of the LBC-H/V-T-WP unit. Before connecting power wire to the LBC-H/V-T-WP unit, make sure power supply is off. Prepare the Positive (+24V) and chassis ground (CHASSIS to earth ground) tip of the...
  • Page 15 Note 5: The power supply is to be located within the same vicinity as the A/V processing equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium or desk. Broadata Technical Support, (800) 214-0222...

  • Page 16: Automated Display Control

    ON” command, followed by the “2 command” and “3 command.” When the LBC-H/V-T-WP times out due to lack of video or activity, it will send the preprogrammed “Power Off” command. One will use LBC-H/V-T-WP Configuration Utility in a PC to pre-configure the above automated display control commands.
  • Page 17 LBC-H/V-T-WP User’s Manual Link Bridge HDMI/VGA Wall Plate Transmitter System Figure 5-1 LBC-H/V-T-WP Automation Flow Chart Broadata Technical Support, (800) 214-0222...
  • Page 18 Link Bridge HDMI/VGA Wall Plate Transmitter System LBC-H/V-T-WP Configuration Utility, Operational Details 1. Connect your PC to the LBC-H/V-T-WP’s RS-232 port using a serial cable. 2. Click on the utility to open the Broadata configuration dialog box: (*NOTE: images below are simulated to illustrate functionality, actual configuration utility will need to have alternate layout.)
  • Page 19 Link Bridge HDMI/VGA Wall Plate Transmitter System 3. Using the Communication pull down menu ensure the com port is available for connection to the LBC-H/V-T-WP, and click ‘Open’ button. 4. Select Display Control Commands option. 5. Enter the display command codes for ‘Power On,’ ‘Power Off,’ ‘2 Command,’...
  • Page 20 LBC-H/V-T-WP User’s Manual Link Bridge HDMI/VGA Wall Plate Transmitter System 6. Select “Skip Checking Power On Return Code,” if not needed 7. From the Baud Rate pull down menu select the monitor communication baud rate 8. As an optional step, one can use the Test pull down menu to bring up the test dialog box and confirm the monitor functionality Broadata Technical Support, Sales@Broadatacom.com...
  • Page 21 10. Select the “No Signal Power Off’ timeout from the drop down windows 11. Click the ‘program’ button to save the automated settings into LBC- H/V-T-WP, and click the ‘Read’ button to verify the automated settings from LBC-H/V-T-WP Broadata Technical Support, (800) 214-0222...
  • Page 22 LBC-H/V-T-WP User’s Manual Link Bridge HDMI/VGA Wall Plate Transmitter System 12. Save your configuration using the ‘File’ pull down menu. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 23: Maintenance And Troubleshooting

    However, observe the following light indicators to make sure that the unit is working properly: 6.2 Troubleshooting If the LBC-H/V-T-WP units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance.
  • Page 24 LBC-H/V-T-WP User’s Manual Link Bridge HDMI/VGA Wall Plate Transmitter System c. Cable connections at both channels are securely connected to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, Sales@Broadatacom.com...

  • Page 25: Specifications

    4.56" x 4.5" x 1.55" Wall Plate Power Level (max.) +24VDC @ 1A LED Indicator Power/Link VGA/ HDMI Operating Temperature 0 to +55 Humidity 5 to 95% RH, non-condensing *Note: VGA input resolution is up to 1920x1200@60Hz Broadata Technical Support, (800) 214-0222...

  • Page 26: Service Procedure

    U.S. Please call Customer Service at 800-214-0222 for information. 8.2 Return/Repair Service The LBC-H/V-T-WP System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc.

  • Page 27: Limited Warranty

    HDMI/VGA Wall Plate Transmitter System 9.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole...
  • Page 28 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBC-H/V-T-WP...
