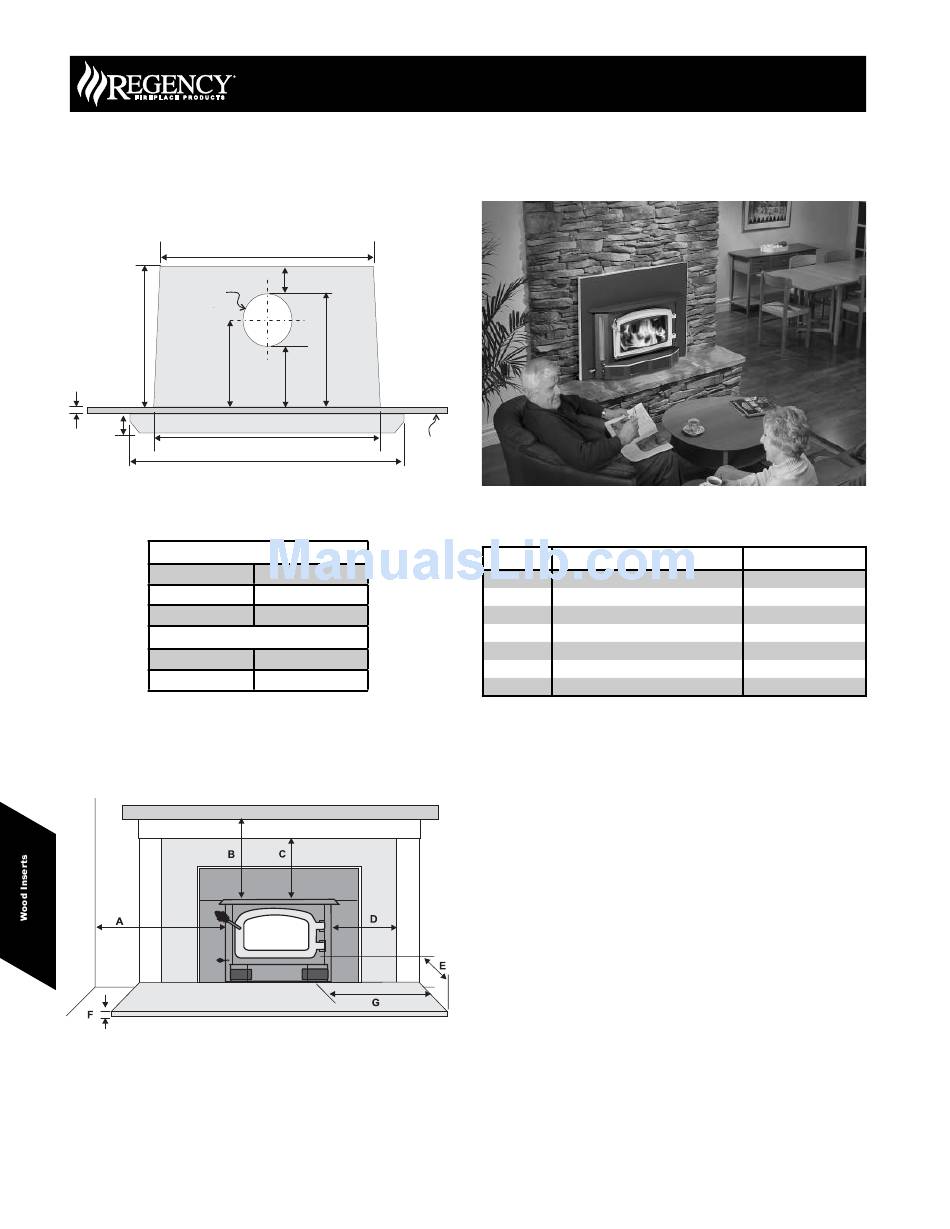

Regency I3100 Product Specifications

I3100 Wood Insert
Firebox height is 22-3/4" at highest point
6" Dia.
Flue
16"
9-7/8"
1-3/8"
3-7/8"
to front
face
I3100 Di
Minimum Fireplace Opening
Height
Width
Depth
Faceplate Dimensions
Standard
Oversize
190
I3100 Large Wood Insert
27-1/2"
3-1/8"
12-7/8"
6-7/8"
Faceplate
27-3/4"
32-5/16"
i
25" (635mm)
28" (711mm)
17" (432mm)
44" (wide) x 32" (height)
50" (wide) x 34.5" (height)
Wood Inserts
Dimension Description
A Adjacent Side Wall (to side)
B Mantle (to top)**
C Top Facing (to top)
D Side Facing (to side)
E Minimum Hearth Extension*
F Minimum Heath Thickness*
G Minimum Hearth Side Extension
Side and Top facing is a maximum of 1-1/2" thick.
Floor protection must be non-combustible, insulating material with an
R value of 1.1 or greater.
* If the hearth extension is fl ush with the fl oor (F) it must extend
19-1/2" in front of the body face (E).
Note: Hearth Extension Width (G) is measured from edge of fuel
door to side of hearth.
** A non-combustible mantel may be installed at a lower height if the
framing is made of metal studs covered with a non-combustible
board.
June 2007 Regency Product Specifi cations Book
I3100
13" (330mm)
19" (480mm)
18" (455mm)
6-1/2" (165mm)
16" (406mm)
1-1/2" (38mm)
8" (205mm)
