1.
To make assembly easier, read the
information on page 5 before you begin as-
sembling the elliptical exerciser.

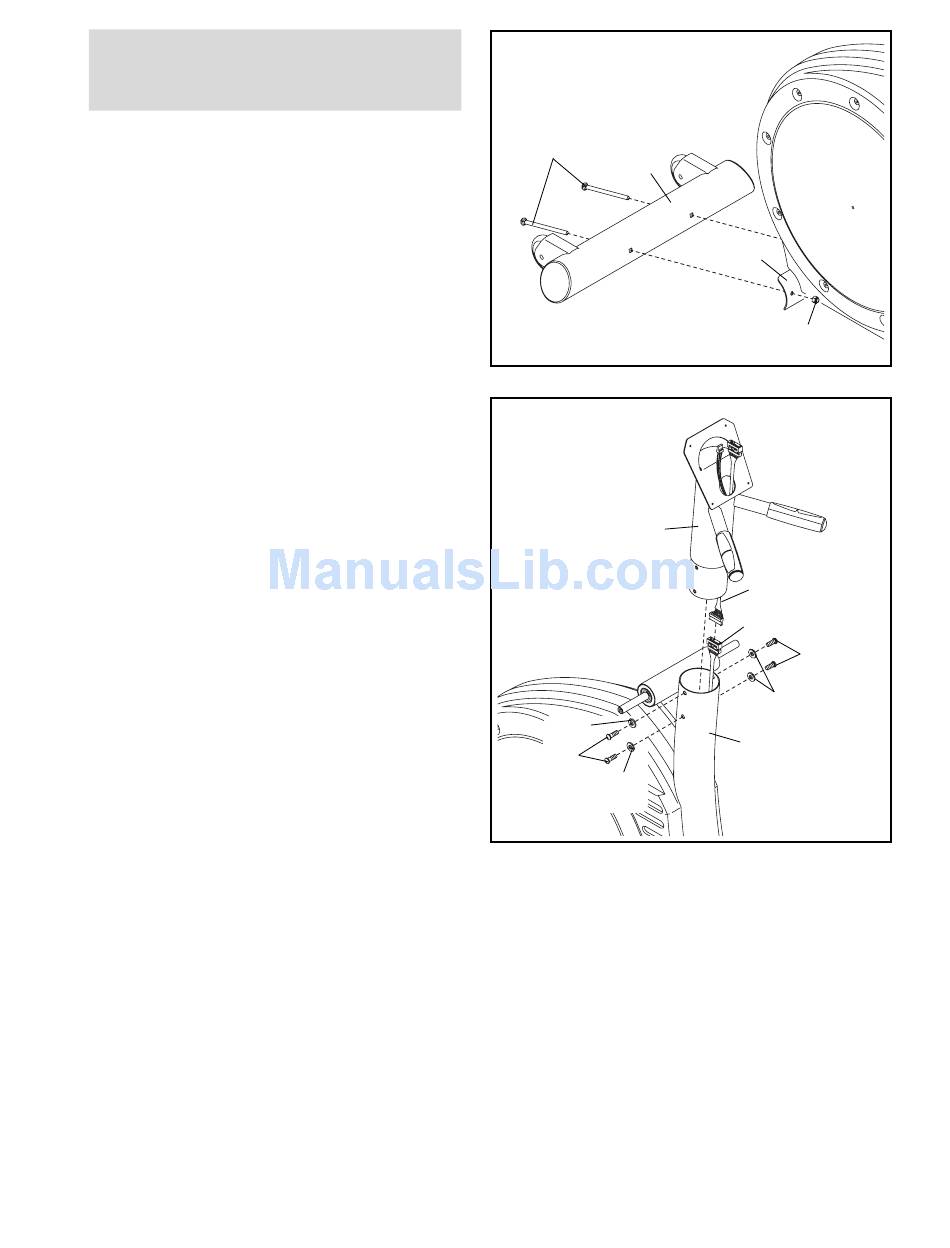

Attach the Stabilizer (8) to the Frame (1) with two
M10 x 116mm Carriage Bolts (38) and two M10
Nylon Locknuts (70).
2. Have another person hold the Upright (2) in the po-
sition shown. Connect the Upper Wire Harness
(77) to the Lower Wire Harness (78).
Attach the Upright (2) to the Frame (1) with four
M10 x 25mm Patch Screws (48) and four M10 Split
Washers (85). Make sure that no wires are
pinched between the Upright and the Frame.
1
38
8
2
85
48
85
6
1
70
2
77
78
48
85
1
