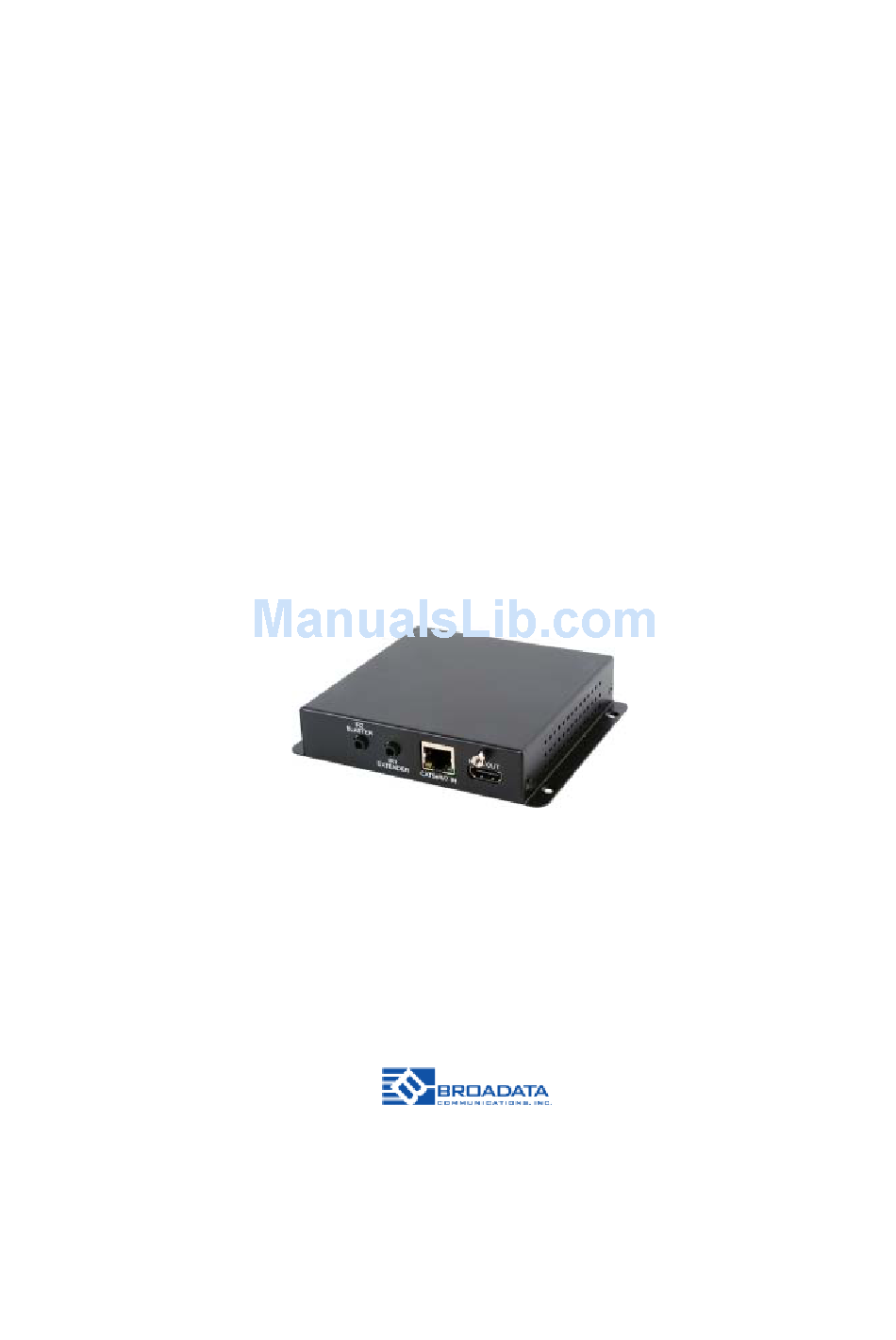

LBC-HDBT-T/R-48-Lite
™
L
B
HDB
T
INK
RIDGE
ASE
HDMI T
RANSMISSION WITH
48V P
H O
60
O
VER
M
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2015 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata LBC-HDBT-T/R-48-Lite
Summary of Contents for Broadata LBC-HDBT-T/R-48-Lite
- Page 1 RANSMISSION WITH 48V P BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2015 Broadata Communications, Inc.
- Page 2 LBC-HDBT-T/R-48-Lite User Manual Link Bridge HDBaseT HDMI Transmission w/48V PoH over 60m SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
4.0 MAINTENANCE AND TROUBLESHOOTING ....10 4.1 MAINTENANCE ............. 10 4.2 TROUBLESHOOTING ..........10 5.0 SPECIFICATIONS ............12 6.0 SERVICE PROCEDURE ..........13 6.1 REPLACEMENT POLICY ..........13 6.2 RETURN AND REPAIR SERVICE ......... 13 7.0 LIMITED WARRANTY ............ 14 Broadata Technical Support, (800) 214-0222... -
Page 4: Product Description
HDBaseT HDMI Transmission w/48V PoH over 60m 1.0 PRODUCT DESCRIPTION The LBC-HDBT-T/R-48-Lite can send uncompressed audio/video and IP data over a single run of CAT-5e/6/7 cable at a distance up to 60 meters. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. -
Page 5: Operation Controls And Functions
IR Extender. 4. CAT-5e/6/7 OUT: Connect to the Receiver unit with a single CAT5e/6/7 cable for transmission of all data signals. 5. HDMI IN: Connect to HDMI source equipment such as a DVD or Blu-ray player. Broadata Technical Support, (800) 214-0222... - Page 6 LBC-HDBT-T/R-48-Lite User Manual Link Bridge HDBaseT HDMI Transmission w/48V PoH over 60m 6. STD/UPDATE Switch: This switch is reserved for factory use only. 7. RS-232 IN: Connect to a PC or Laptop with D-Sub 9-pin male cable for the transmission of RS-232 commands.
-
Page 7: Rear Panel
HDMI input source signal. 5. STD/UPDATE Switch: This switch is reserved for factory use only. 6. RS-232 OUT: Connect to the device that is to be controlled (via D-Sub 9-pin female cable) by RS-232 commands. Broadata Technical Support, (800) 214-0222... - Page 8 LBC-HDBT-T/R-48-Lite User Manual Link Bridge HDBaseT HDMI Transmission w/48V PoH over 60m 7. POWER LED: This LED will illuminate when the device is connected to a power supply. 8. LINK LED: This LED will illuminate when both Transmitter and Receiver are connected through CAT cable. When it blinks...
-
Page 9: Serial Control
LBC-HDBT-T/R-48-Lite User Manual Link Bridge HDBaseT HDMI Transmission w/48V PoH over 60m SERIAL CONTROL 3.1 D-Sub 9 Pin Assignment Define TX/RX TxD/RxD RxD/TxD 3.2 IR Blaster Cable Pin Assignment IR Blaster Power 5V IR Blaster Signal Broadata Technical Support, (800) 214-0222... - Page 10 LBC-HDBT-T/R-48-Lite User Manual Link Bridge HDBaseT HDMI Transmission w/48V PoH over 60m 3.3 IR Receiver Cable Pin Assignment IR Receiver IR Signal Power 5V Grounding Broadata Technical Support, Sales@Broadatacom.com...
-
Page 11: Maintenance And Troubleshooting
However, observe the following light indicators to make sure that the unit is working properly: 4.2 Troubleshooting If the LBC-HDBT-T/R-48-Lite units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance. - Page 12 LBC-HDBT-T/R-48-Lite User Manual Link Bridge HDBaseT HDMI Transmission w/48V PoH over 60m c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, Sales@Broadatacom.com...
-
Page 13: Specifications
Number of Cables Connector/ Distance RJ-45 / Up to 60m Physical Dimensions 4.25”(W) x 4.57”(D) x 1.14”(H) Power Consumption +48VDC @ 0.9 Amps (Max.) Operating Temperature 0 to +40 Humidity 20 to 90% RH, Non-Condensing Broadata Technical Support, (800) 214-0222... -
Page 14: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 6.2 Return/Repair Service The LBC-HDBT-T/R-48-Lite System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. -
Page 15: Limited Warranty
HDBaseT HDMI Transmission w/48V PoH over 60m 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole... - Page 16 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBCHDBTT/R48Lite...
