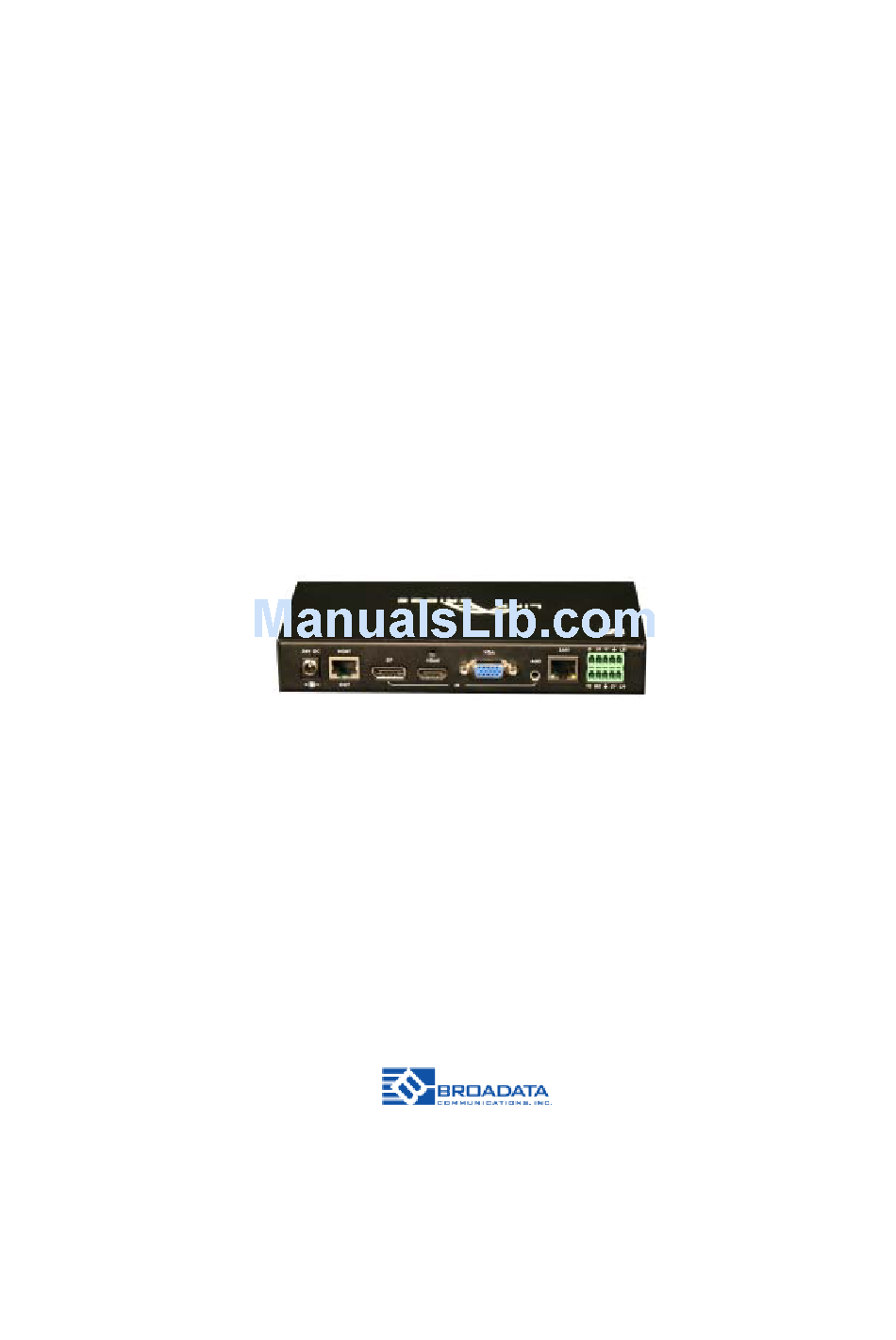

LBC-HDV-T
L
B
HDB
T
TM
INK
RIDGE
ASE
HDMI/D
P
/VGA
ISPLAY
ORT
T
S
RANSMISSION
YSTEM
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rights reserved.
©2015 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata LBC-HDV-T
Summary of Contents for Broadata LBC-HDV-T
- Page 1 /VGA ISPLAY RANSMISSION YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2015 Broadata Communications, Inc.
- Page 2 LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
5.2 TROUBLESHOOTING ........... 15 6.0 SPECIFICATIONS ............17 7.0 SERVICE PROCEDURE ..........18 7.1 REPLACEMENT POLICY ..........18 7.2 RETURN AND REPAIR SERVICE ......... 18 8.0 LIMITED WARRANTY ............ 19 9.0 APPENDIX A ..............20 Broadata Technical Support, (800) 214-0222... -
Page 4: Product Description
HDBaseT HDMI/DisplayPort/VGA Transmission System 1.0 PRODUCT DESCRIPTION The LBC-HDV-T is a multi-format switcher with HDMI, VGA and DisplayPort inputs to HDBT output. The audio port is independent and could be embedded into any of the video signals and send it to the far end. -
Page 5: Operation Controls And Functions
LED solid when HDMI selected, flashing when signal presented, off means no input signal. 6. V: LED solid when VGA selected, flashing when signal presented, off means no input signal. 7. Button for switching input signal. Broadata Technical Support, (800) 214-0222... -
Page 6: Rear Panel
LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System 2.2 Rear Panel 24V DC HDBT HDMI TX RX LV LH 1. Power: 24V DC Power. 2. HDBT Out: HDBT output. 3. DP: DisplayPort input. 4. HDMI: HDMI input. 5. VGA: VGA input. -
Page 7: Dc Power Connection
The LBC-HDV-T derives power from an external 24VDC power supply. This power supply is a wall mounted AC/DC adapter, 100-240 VAC, 50-60 Hz, at 1A. This power supply comes standard for the LBC-HDV-T unless otherwise specified. If you have any problems or concerns, regarding the installation, make sure that you have taken the proper steps to ensure a proper power connection. -
Page 8: Phoenix Contact Connection
LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System 3.0 PHOENIX CONTACT CONNECTION TX RX LV LH Note: VGA Input LV: LED indicator for VGA DP Input LD: LED indicator for DP HDMI Input LH: LED indicator for HDMI RS-232 Tx... -
Page 9: Web Server
IP address. To access the product web server, user candirect connect the PC LAN port to the LBC-HDV-T LAN port with a straight RJ-45 cable. After making the connection, go to network connection of the PC and revise the IP property to static IP as below. Once done, open a web browser and enter the 192.168.2.175 to... - Page 10 Input Config: Input port information. Output Config: HDBT connection status. Active Input: Showing the input signal format and resolution. Active Output: Showing output signal format and resolution. HDCP Unauthorized: When checked, LBC-HDV-T will request no HDCP compliant source. Broadata Technical Support, Sales@Broadatacom.com...
- Page 11 LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System EDID Management This page provides switching and EDID management. Follow Output: EDID from display. Broadata EDID: Internal preload EDID Broadata Technical Support, (800) 214-0222...
- Page 12 LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System RS-232 Configuration RS-232: Local RS-232 setting to control the LBC-HDV-T. HDBT RS-232: Set the far end RS-232 baud rate. RS-232 Preset Command 1: When detecting active signal, sends the RS-232 command in the preset timing.
- Page 13 LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System System System and firware information. User can modify the IP setting on this page. Remember to click on Apply for the changes. Broadata Technical Support, (800) 214-0222...
-
Page 14: Maintenance And Troubleshooting
However, observe the following light indicators to make sure that the unit is working properly: 5.2 Troubleshooting If the LBC-HDV-T units do not operate properly after installation, check for possible cable breaks, loose connections, and incorrect cable connections. If problems persist that may be fiber related, contact BCI at 1-800-214-0222 for further assistance. - Page 15 LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System c. Cable connections at both channels are securely fastened to each connector. Turn the power off, then back on to reset the link. Broadata Technical Support, (800) 214-0222...
-
Page 16: Specifications
LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System 6.0 SPECIFICATIONS Video Resolution (HDMI) up to 4K2K@30Hz (DisplayPort) up to 4K2K@30Hz (VGA) up to 1920x1200@60Hz Connectors HDMI, DisplayPort, and VGA Female Plug Protocol DDC/EDID/HDCP Capable Audio Channel Capacity 1 L/R Analog... -
Page 17: Service Procedure
U.S. Please call Customer Service at 800-214-0222 for information. 7.2 Return/Repair Service The LBC-HDV-T System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. -
Page 18: Limited Warranty
HDBaseT HDMI/DisplayPort/VGA Transmission System 8.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s election, by replacement, any said products that in our sole... -
Page 19: Appendix A
0:Internal Audio 1:External Audio Pass through (RS-232 >RS1TX05Hello<0D 0A> Command pass through (control port): to LAN or 1:RS232 2:LAN vice versa) Ex: passing command through RS-232 port 5 character “Hello” Note: The default baud rate 19200 Broadata Technical Support, (800) 214-0222... - Page 20 LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System Broadata Technical Support, Sales@Broadatacom.com...
- Page 21 LBC-HDV-T User Manual Link Bridge HDBaseT HDMI/DisplayPort/VGA Transmission System Broadata Technical Support, (800) 214-0222...
- Page 22 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-LBCHDVT...
