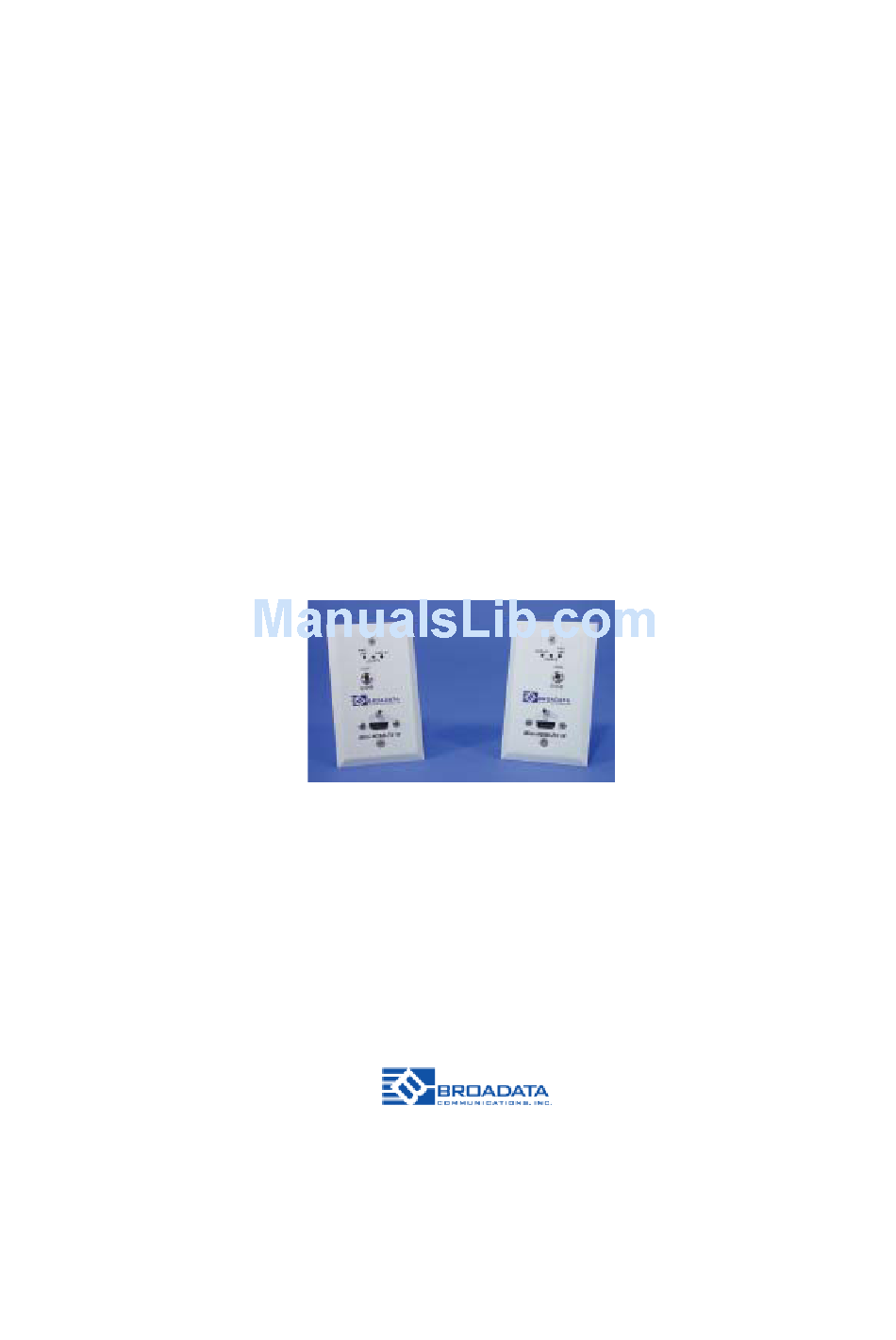

Mini-HDMI-WP Series
W
P
M
M
ALL
LATE
INIATURE
ULTIMODE
F
O
IBER
PTIC
HDMI T
S
RANSMISSION
YSTEM
BCI reserves the right to make changes to the products described herein without
prior notice or consent. No liability is assumed as a result of their use or
application. All rights reserved.
©2010 Broadata Communications, Inc.
Advertisement
Table of Contents
Related Manuals for Broadata Mini-HDMI-WP Series
Summary of Contents for Broadata Mini-HDMI-WP Series
- Page 1 HDMI T RANSMISSION YSTEM BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2010 Broadata Communications, Inc.
- Page 2 This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly recommended in order to protect and extend the life of your equipment. Broadata Technical Support, CustomerService@Broadatacom.com...
-
Page 3: Table Of Contents
4.0 MAINTENANCE AND TROUBLESHOOTING ....11 4.1 MAINTENANCE ............. 11 4.2 TROUBLESHOOTING ..........11 5.0 SPECIFICATIONS ............12 6.0 SERVICE PROCEDURE ..........13 6.1 REPLACEMENT POLICY ..........13 6.2 RETURN AND REPAIR SERVICE ......... 13 7.0 LIMITED WARRANTY ............ 14 Broadata Technical Support, (800) 214-0222... -
Page 4: Product Description
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System 1.0 PRODUCT DESCRIPTION The Mini-HDMI-WP Series is a high performance, low cost, miniature, Fiber Optic HDMI extender system, designed specifically for wall plate installation. It carries one (1) unidirectional HDMI video, together with HDCP/DDC, through one (1) multimode fiber. -
Page 5: Setup
BCI Mini-HDMI-WP User’s Manual Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System 2.0 SETUP The BCI Mini-HDMI-WP Series units are used in pairs. One Mini-HDMI-WP-T transmitter unit is located at the near-end and connected through one optical fiber, to the Mini-HDMI-WP-R receiver located at the far-end of the link. -
Page 6: Hdmi Video Interface
1. Directly connect the Mini-HDMI-WP-T (Transmitter) unit’s HDMI video input port to the user’s HDMI video source. 2. For the receive unit, directly connect the Mini-HDMI-WP-R (Receiver) unit’s HDMI video output ports to the user’s HDMI video receivers. Figure 2-2 Electrical Connection Broadata Technical Support, CustomerService@Broadatacom.com... -
Page 7: Optical Fiber Connection
3. Connect the fiber from one unit to the other connecting the near end Mini-HDMI-WP-T unit’s optical port to the far end of the Mini-HDMI-WP-R unit’s optical RX port as illustrated in Figure 2-3. Figure 2-3 Fiber Optic Connection Broadata Technical Support, (800) 214-0222... -
Page 8: Dc Power Connection
If you have any problems or concerns, regarding the installation, make sure that you have taken the proper steps to ensure a proper power connection. Otherwise, feel free to contact us for any questions you may have. Broadata Technical Support, CustomerService@Broadatacom.com... -
Page 9: Operation
When power and optical link are on, this LED turns GREEN When video source is properly connected, this SOURCE LED turns GREEN When video display is properly connected, the DISPLAY LED turns GREEN Table 1 TX and RX LED Indicators Broadata Technical Support, (800) 214-0222... -
Page 10: Maintenance And Troubleshooting
Make sure the appropriate (Multimode) fibers are being used. b. Fiber and fiber connectors are not broken. c. For each unit, the transmit (TX) fiber is connected to the other unit’s receiver (RX). Broadata Technical Support, CustomerService@Broadatacom.com... -
Page 11: Specifications
0.45” x 2.75” x 1.4” Power Level (max.) +12VDC @ 0.5A (in-wall) Power Wiring Distance >200 ft. when 22-AWG wire is used with 12VDC Operating Temperature 0 to +50 Humidity 0 to 95% RH, non-condensing Broadata Technical Support, (800) 214-0222... -
Page 12: Service Procedure
The BCI Mini-HDMI-WP System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 13: Limited Warranty
Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System 7.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s... - Page 14 Mini-HDMI-WP User’s Manual Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System Broadata Technical Support, CustomerService@Broadatacom.com...
- Page 15 BCI Mini-HDMI-WP User’s Manual Wall Plate Miniature Multimode Fiber Optic HDMI Transmission System Broadata Technical Support, (800) 214-0222...
- Page 16 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com 60000-MiniHDMI-WP...
