IVX is a registered trademark, and Esi-Dex, Integrated Answering Machine, Quick Groups, Quick Moves, Virtual Mailbox Key, Auto Page, Quick Page and Verbal User Guide are trademarks, of ESI. Other registered trade names mentioned herein are trademarks of their respective owners. ESI phone systems are protected by U.S. Patent 6,067,349 and 6,252,944, and other patents pending.
Table of contents System overview................................1 System features ................................3 Voice mail features......................................4 S-Class with Integrated Answering Machine™.............................4 Auto attendant features ....................................4 Phone models ................................5 Phone overlays ........................................5 48-Key Feature Phone ....................................6 24-Key Digital Feature Phone..................................8 12-Key Digital Feature Phone..................................9 System components..............................10 Memory Module ......................................10 System Cabinet......................................10 Main board........................................10...
Page 4
(This page included for pagination purposes only.)
(b.) via a physical link to the system’s RS-232C serial port. Message Storage Options ESI offers IVX S-Class with different voice mail options or, for those not requiring voice mail, an Inte- grated Answering Machine™. Voice Mail There are two IVX S-Class systems with ESI’s award-winning voice mail, including an automated atten-...
Page 6
Many advanced features are available — such as live call screening, off-premises reach-me, external message notification, and a Message Recycle Bin — from a single designated station. When needed, upgrading to ESI’s full-featured voice mail is as easy as switching out the memory mod- ule.
Conference calling — Includes two conference bridges, and a conference may contain up to four parties, so the IVX S-Class system can support two conferences of four parties each. Analog phones on the system can take part in and initiate conference calling.
IVX S-Class Product Overview Voice mail features • Up to 6 built-in voice mail ports — These are in addition to the up-to-42 possible call-processing ports; thus, you may build the system to its maximum for call-handling without having to balance voice mail needs versus call-handling needs.
IVX S-Class Product Overview Phone models Digital Feature Phones There are three choices of digital feature phones available on the IVX S-Class. This means customers can select from among the available feature phones that best suit their needs. Display Model...
IVX S-Class Product Overview 48-Key Feature Phone The 48-Key Digital Feature Phone is ideal for the majority of users because it takes full advantage of all the system’s capabilities. The 48-Key Digital Feature Phone has a variety of programmable and built-in features.
Page 11
The console is connected to its host 48-Key Digital Feature Phone via a special cable (pro- vided) and doesn’t require a separate station port of its own. You program the Expansion Console’s keys just as you do the programmable feature keys on your ESI Feature Phone, using either direct or traditional programming.
IVX S-Class Product Overview 24-Key Digital Feature Phone The 24-Key Digital Feature Phone is ideal for less active users. The phone’s display and programma- ble feature keys combine for maximum productivity. The 24-Key Feature Phone’s built-in voice mail features and voice prompts make it easy to program and use.

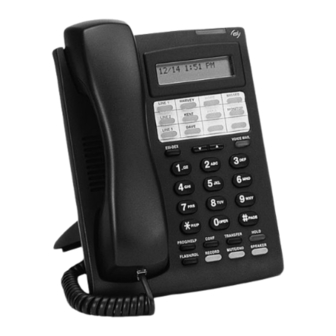

IVX S-Class Product Overview 12-Key Digital Feature Phone The 12-Key Digital Feature Phone is for infrequent users requiring feature access, but less customiza- tion, or areas such as a lobby, warehouse, or waiting room. Volume/scroll keys 1-line, 16-character display Speaker...
IVX S-Class Product Overview System components IVX S-Class consists of a four line, eight station, two analog port system cabinet with a choice between voice mail or Integrated Answering Machine™, and is available in the following configurations. • IVX 42s (Six port voice mail): Up to 12 lines, 24 digital stations, 6 analog ports, and 30 hours of voice mail storage •...
The overhead paging port is fixed (located on the main board) as extension 199 for programming pur- poses and user access. CO line connection The IVX S-Class system's advanced CO line circuitry provides for open loop detection and the system’s built-in Caller ID interface. Station connection The first 12 pairs on each amphenol are station ports.
