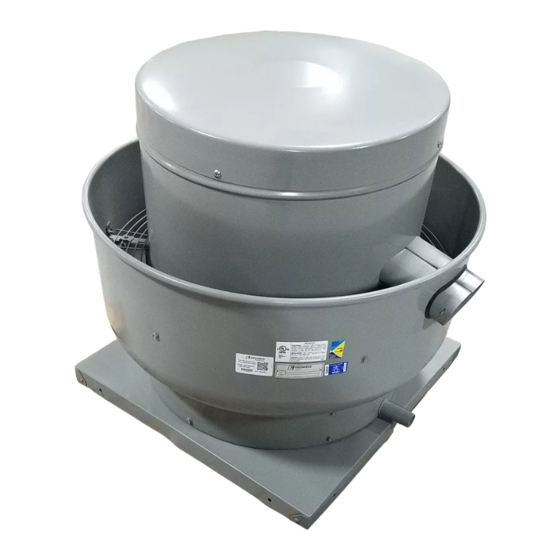

Greenheck G Installation, Operation And Maintenance Manual

Hinge kit

Hide thumbs Also See for G:

Download this manual See also: Manual

Installation, Operation and Maintenance Manual

Please read and save these instructions for future reference. Read carefully before attempting to assemble,

install, operate or maintain the product described. Protect yourself and others by observing all safety

information. Failure to comply with instructions could result in personal injury and/or property damage!

462866 - Hinge Kit | Cover drawing

WARNING

Disconnect power and observe proper lock out tag

out procedures per OSHA regulation (Title 29 code of

federal regulations part 1910.147 & 1910.333).

Note: If fan is connected to electrical source via rigid

connection, a qualified electrician will need to change

the rigid connection to a flexible connection long

enough per local electrical codes to allow for fan

3/4 inch

movement.

5/16 inch diameter

(two holes)

Document 462866

Hinge Kit

G/GB - Sizes 075-203

CUE/CUBE - Sizes 075-200

462866 - Hinge Kit | FIGURE 4

Hinge Kit

Page 1 Document 462866 Hinge Kit G/GB - Sizes 075-203 ® CUE/CUBE - Sizes 075-200 Installation, Operation and Maintenance Manual Please read and save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information.
Page 2 462866 - Hinge Kit | Cover drawing 462866 - Hinge Kit | Cover drawing 7/8 inch 4 inches Installation FIGURE 1 1. Check curb cap for factory holes that match the 462866 - Hinge Kit | FIGURE 5 dimensions in FIGURES 1 and 2. If holes match, skip to Step 3.
Page 3 Installing the stop cable FIGURE 5 1. Check one side of curb cap for factory-punched hole at or near dimensions indicated by FIGURE 3/4 inch 2-3/4 5. If this hole exists, it can be used as the upper inches 5/16 inch diameter connection point for the stop cable.
Page 4 Our Commitment As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications without notice. Specific Greenheck product warranties are located on greenheck.com within the product area tabs and in the Library under Warranties. ®...
